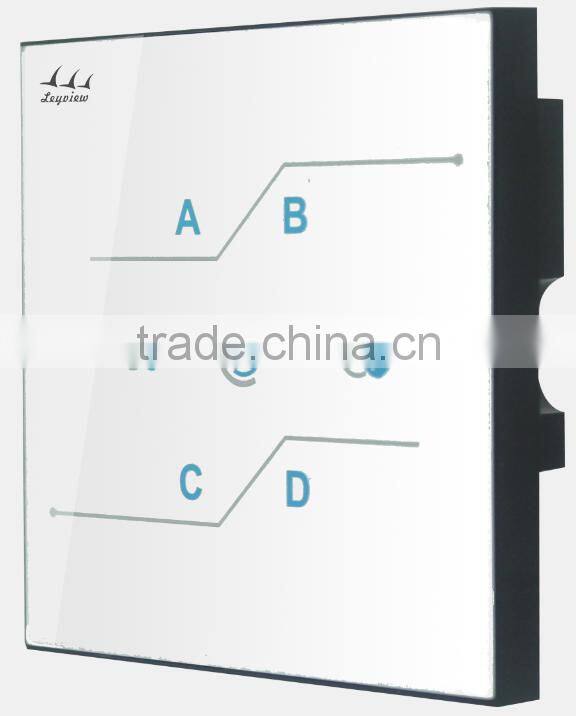

Product name: DALI Scene Touch Panel
Model No.: LYD204
1.Technical Parameters
| Power supply | DALI bus |
input signal |
touch panel |
output signal |
standard DALI signal |
| working temperature | -20-60digree |
| input current | less than 6mA |
| gross weight | 195.6g |
| net weight | 139.5g |
| packing size | L80*W100*H75mm |

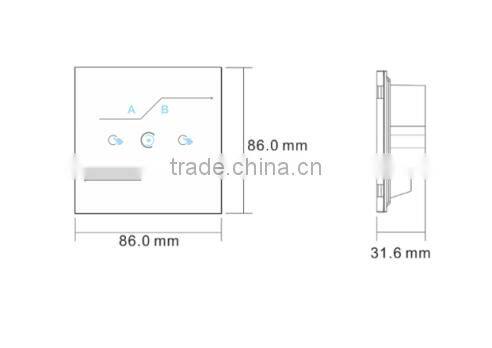

2. Dimensions & Descriptions

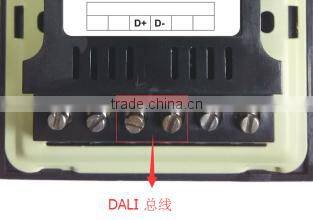

3. Interface Instructions

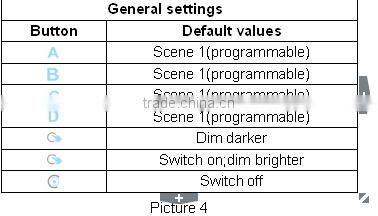

4. keys instruction
5.Instructions
DALI touch panel support the user to customize the keys, and can set it to pointed scene, grouping and device.Please refer to the following "Configuration Method".
For the first time using, the key function of A,B,C,D is respectively defaulted to be scene of 0,1,2,3.
5.1 Scene control:When a user configured keys to scene function, touch the corresponding key, and all touch panel equipment on the same bus will be executed scene 0, the left and right keys are not available at this time (the left and right key can only be used for grouping and dimming of the equipment ), press the close button to close the brightness.
5.2 Grouping control:When a user configured the button into grouping function, touch button can select the set grouping, choosing the groups which are selected can close brightness of the groups at this time, and then touch the left and right keys to dimmer the chosen grouping , touch the off button to shut down the output of equipment.
5.3 Device control:When a user configured the button into equipment function, touch keys can light all set devices, and then touch left and right keys to dimmer the devices chosen,
