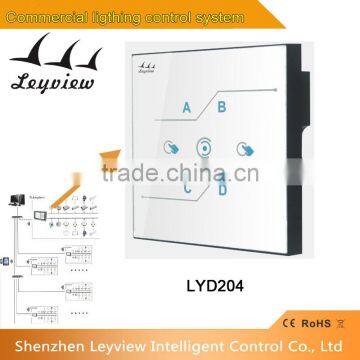

Product name: Remote Control Type and DC12V 2A Voltage Dali Touch Controller
Model No.: LYD204
Technical Parameters
Dimensions

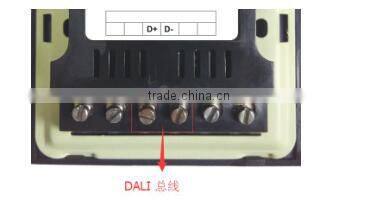

Interface Instructions
Key instruction

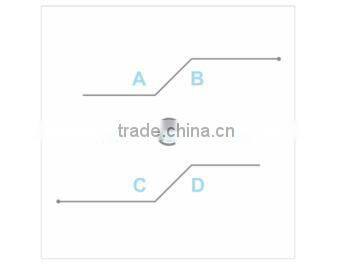

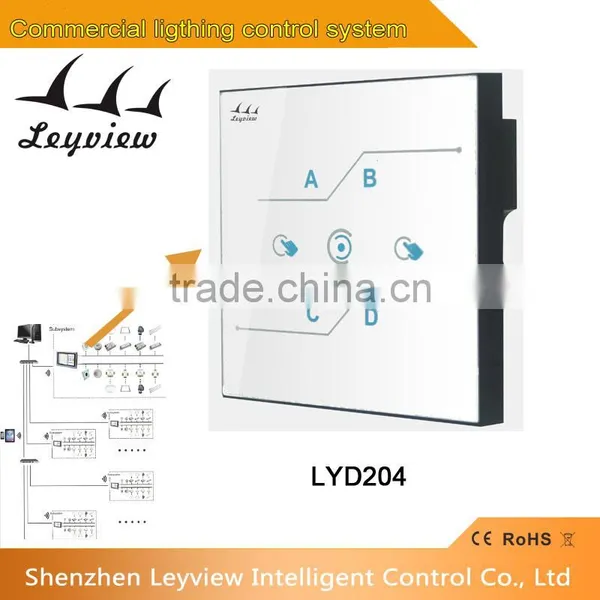

1.Picture 3 is the panel picture,A,B,C,D all can be respectively set to scene,grouping and device function.

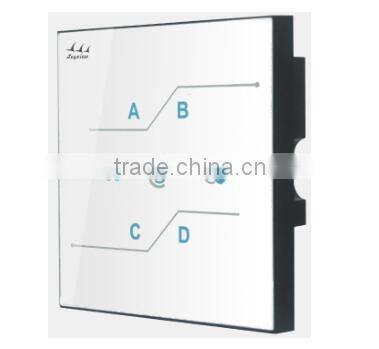

2.Picture 4 shows the function of buttons
| General settings |
| Button | Default vatues |
| Scene 1(programmable) |
| Scene 1(programmable) |
| Scene 1(programmable) |
| Scene 1(programmable) |
| Dim darker |
| Switch on;dim brighter |
| Switch off |
Instructions
DALI touch panel support the user defined keys,and can set it to pointed scene, grouping and devices.Please refer to the following< collocation method>
When the first using, A, B, C,D, the default of these four keys function must be set to scene 0, 1, 2, 3.
Scene control: When a user configured keys to scene function, touch the corresponding key, and all touch panel equipment on the same bus will be executed scene 0, the left and right key are not available at this time ( the left and right key can only be used for grouping and dimming of the equipment), press the close button to close the brightness.
Grouping control: When a user configured the button in grouping functions, touch button can select the set grouping, the chosen session which is selectied can closed brightness output at this time, and then touch the left and right key to dimmer the chosen grouping.Touch the off button to shut down the output equipment.
Device control: When a user configured the button into equipment function, touch keys can light all device set, and then touch left and right key to dimmer the device chosen, touch the off button to shut down the output equipment.
