Structure of the system
1. Summarize of the system
Commercial lighting control system is our response to store lighting control research and
development of a set of intelligent lighting control system,the overall design scheme is based on the
principles of humanized operation and personalized.The system can monitor the whole system
through the computer network,acknowledge the working state of the current lighting
subsystem,inquire the working parameters each node such as current,voltage of lamps and
lanterns;In case of emergency control of lighting for the whole system model and a failure
report.Through the gateway interface and serial interface and the building of BA system or fire
fighting system,security system and so on control system

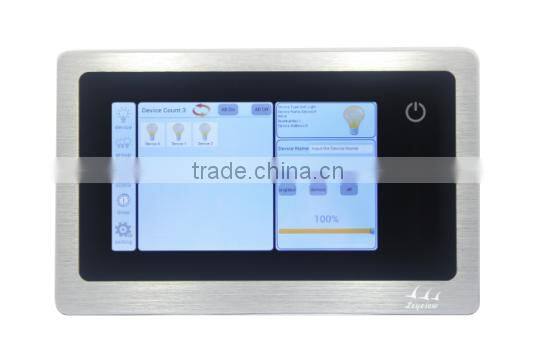

Product name: DALI Touch Screen Master Controller
Model No.: LYD101
2. Technical Parameter
| Working temperature | -20-45℃ |
| Supply voltage | DC 12v |
| Output | at most 128 channel DALI lighting sevices |
| Connet way | NETWORK CABLE |
| Exernal dimesion | 239.8*150*19 mm |
| Packing size | 280*180*60 mm |
| NW. | 730 g |
| GW. | 800 g |
| Static power consumption | 24w |

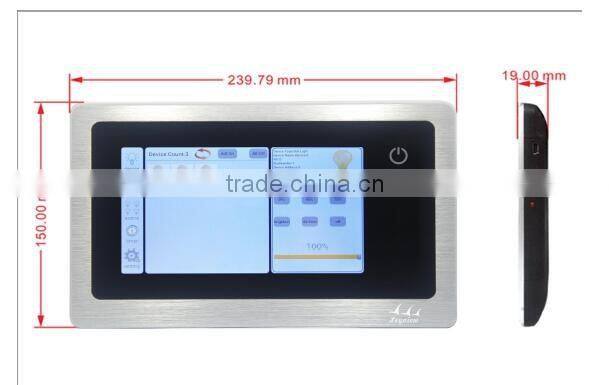

3. Dimensions

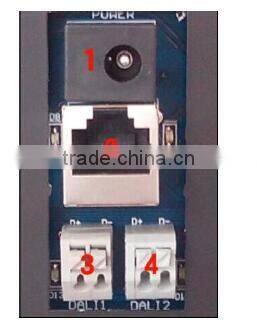

4. Interface specification
1 Power supply:DC12Vpower interface;
2 Network interface;
3 DALI1 interface;
4 DALI2 interface
Established in 2005, we are professional maufacturer in the research, development and production of intelligent controller,switch,dimmer for lighting system.
1.We are located in Baoan district, Shenzhen City,China,closed to the shenzhen airport,convenient for the visit !
2. Years menber of Alibaba
3. Products are approved with CE,RoHs,Fcc,SAA,UL ,ETL certificate.
4.Every year we attend the Guangzhou optical sub Exhibition
We adheres to "convenient, efficient, intelligent" which guarentees products quality and customer service. Intelligent integrated into life, make life more convenient.
