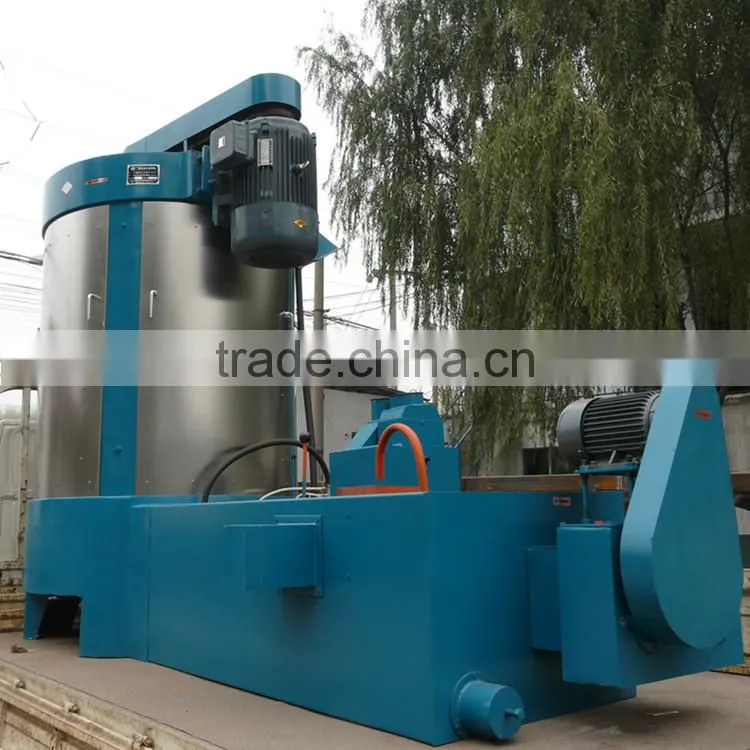

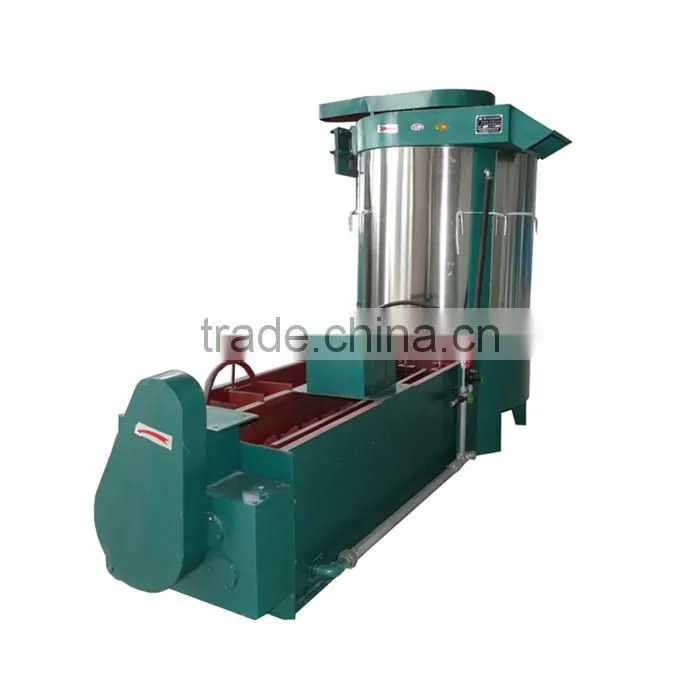

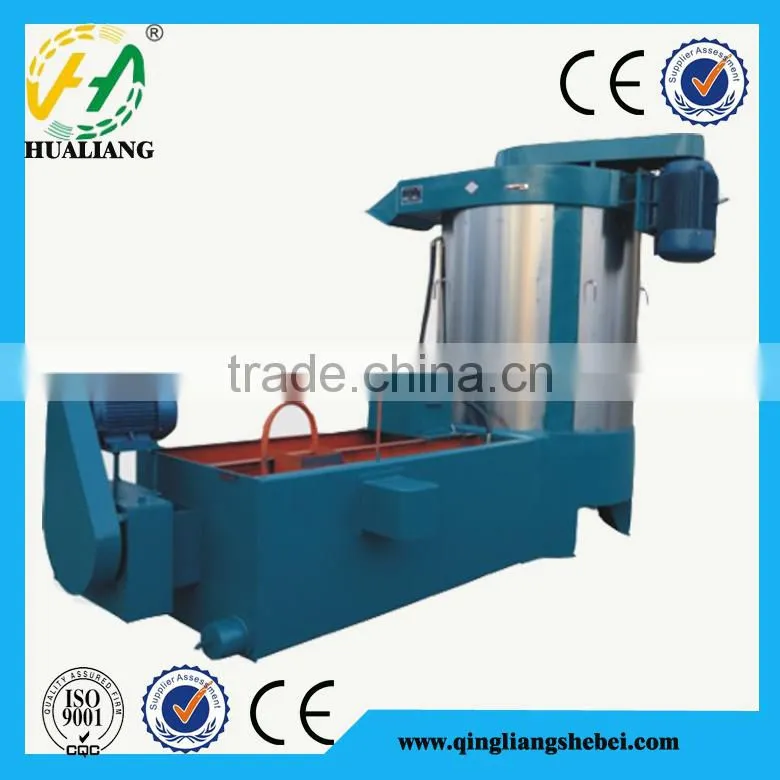

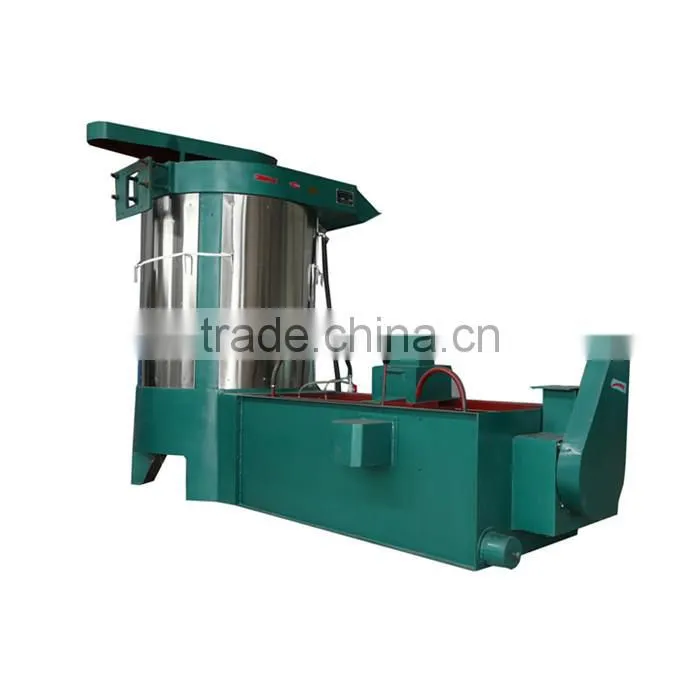

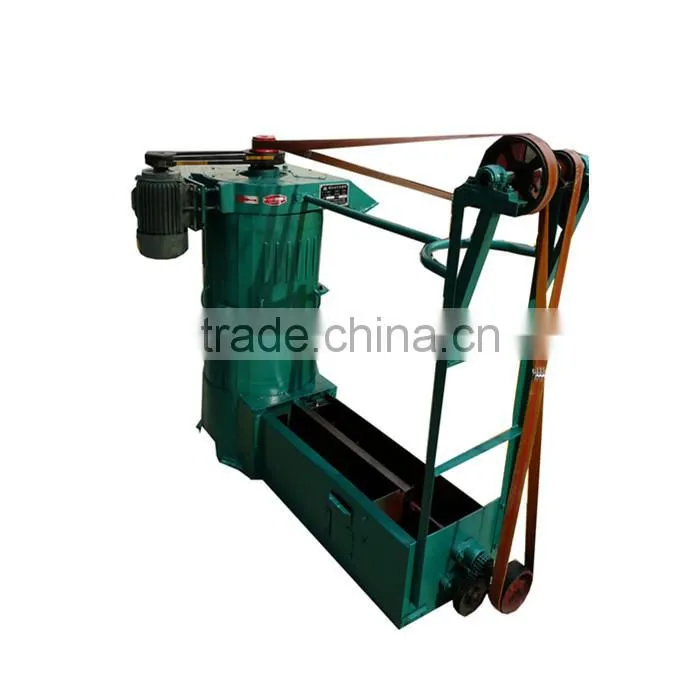

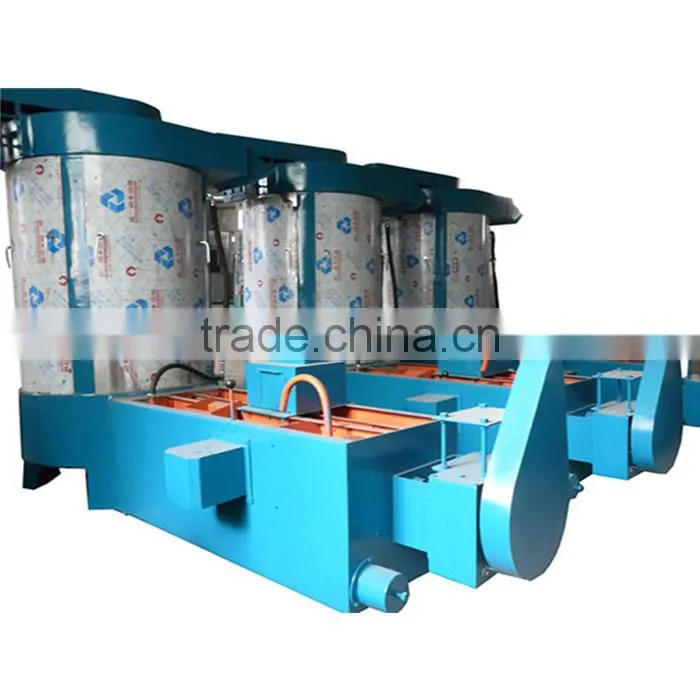

hot sell XMS series washing machine for wheat cleaning
Specifications:
XMS-series wheat washer is one of the main equipments in the grain processing to select wheat. This series equipment adopt water scrubbing method to remove sandstone in the wheat and dirt on the surface of wheat grains. It has good performance to remove impurity of wheat, and the wheat got into drier to drying after washing. This equipment is suitable for large, medium, and small flourmills.
Materials of design:
1. Wheat washer upper and low base adopt high strength cast iron materials.
2. Watertight doors, screen piece, screw conveyor sink adopt stainless steel material.
3. Upper and low bearings adopt airtight dustproof special bearings and pressure bearings.
Technical Parameters:
Types | XMS30 | XMS40 | XMS50 | XMS60 | XMS80 | XMS90 | XMS105 |
Output(kg/h) | 600 | 1000 | 2000 | 3000 | 5000 | 6800 | 12000 |
Direr direction | anticlockwise | anticlockwise | anticlockwise | anticlockwise | anticlockwise | anticlockwise | anticlockwise |
Main shaft speed(r/min) | 960 | 735 | 610 | 585 | 480 | 400 | 380 |
Drier piece specification(mm) | 300 | 400 | 500 | 600 | 800 | 900 | 1050 |
Screw conveyor diameter(mm) | 115 | 135 | 135 | 135 | 135 | 185 | 185 |
Screw conveyor speed(r) | 195 | 230 | 175 | 170 | 189 | 180 | 180 |
Power | 90S-4(kw) | Y100L-4(3kw) Y908-6(0.75kw) | Y100L-4(4kw) Y908-6(1.1kw) | Y1328(5.5kw) Y90L-6(1.5kw) | Y160-M-4(7.5kw) Y112-M-6(1.5kw) | Y160-C-6(11kw) Y112-M-6(2.2kw) | Y160-C-6(15kw) Y112-M-6(2.2kw) |
Dimension (L*W*H)mm | 1500*480*1340 | 1780*630*1700 | 2160*750*1640 | 2520*880*1760 | 3000*1110*2130 | 3340*1250*2280 | 3550*1400*2550 |
Weight(kg) | 260 | 500 | 900 | 1300 | 2100 | 3000 | 3600 |
Product Details:
Applications:
Our Advantages:
1) Huge stocks can meet your urgent demand.
2) As a manufacturer, we can ensure high quality machines & competitive price for you.
3) We have our own factory, can provide you with high quality low price products.
Workshop and Facilities:
Company Information:
Luohe Hualiang Machinery Co., Ltd is a professional manufacturer of designing and installing 30-500T complete set of flour milling machinery, which designed with a compact structure, steel structure, or storey style, is easily installed and operated, requires a low initial investment.
More Choices:
Packing Pictures:
FAQ:
1) What mode of transportation do you have?
Sea transportation.
2) What are the acceptable payment methods?
T/T, 30% deposit, 70% balance before shipment or L/C at sight.
Our Services:
Engineers Overseas Aftersale Service are available.
All HUALIANG manufactured machines will be guaranteed with spare parts and service for one year upon the receiving of shipment.
Andy
Tel:+86-395-2353699
Mobile: 86 150 3950 1751
Skype:andy20105869
