High efficient vibrating sieve for maize seed cleaning
Range of Application
TQLZ-series H-efficiency vibratory cleaning screen is mainly used for screening, separating large, medium, small and light impurities mixed in the grains, which can be widely used in milling, feed, rice milling, winery, chemical factory, food, oil extracting, corn processing and other industries to clean and grade raw material. This equipment has the advantages of low noise, stable operation, high processing capacity, less energy consumption, good cleaning effect, excellent sealing effect without dust outside. Use it together with winnowing machine for better efficacy.
Materials of Maize Seed Cleaning Machine
a. The screen body is welded by SPCC (high quality cold-rolled steel plate with standard thickness 3mm).
b. Vibrating motor adopts famous brand “Baofei” motor.
c. The screen frame is made of steel, with at least ten years’ service life.
d. The four corners are supported by imported “Austria” rubber springs, with reasonable stable structure.
e. The screen deck is made of finest manganese plate and stainless steel screen mesh which can be customized.
Technical Specification
Types | Output (wheat) | Power | Absorbing air volume | Weight | Screen size (W*L) | The dimension of whole machine (L*W*H) |
| t/h | kw | M³/min | kg | mm | mm |
TQLZ100*200 | 12~37.5 | 2*0.37 | 60 | 620 | 1000*1500 | 2180*1539*1673 |
TQLZ150*200 | 20~60 | 2*0.55 | 115 | 1040 | 1500*2000 | 2675*2115*1823 |
TQLZ180*200 | 22~70 | 2*0.75 | 135 | 1140 | 1800*2000 | 2675*2466*1823 |
TQLZ200*200 | 25~75 | 2*1.1 | 150 | 1250 | 2000*2000 | 2675*2643*1823 |
TQLZ125*200B*2 | 35~110 | 4*0.55 | 185 | 1750 | 1250*2000*2 | 2430*2950*2185 |

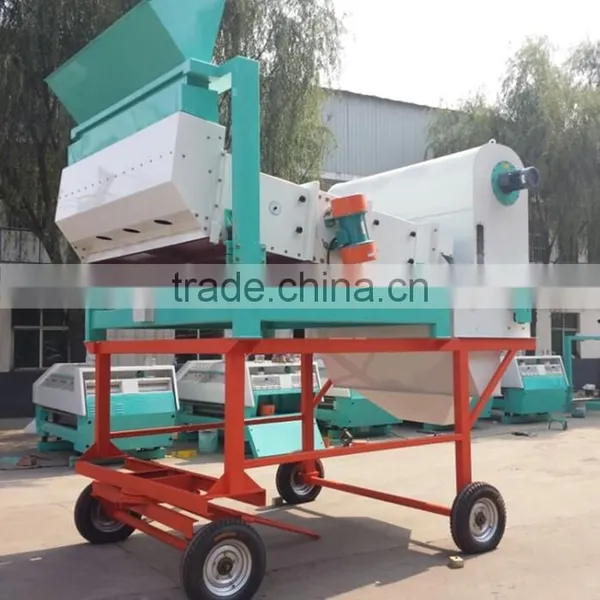

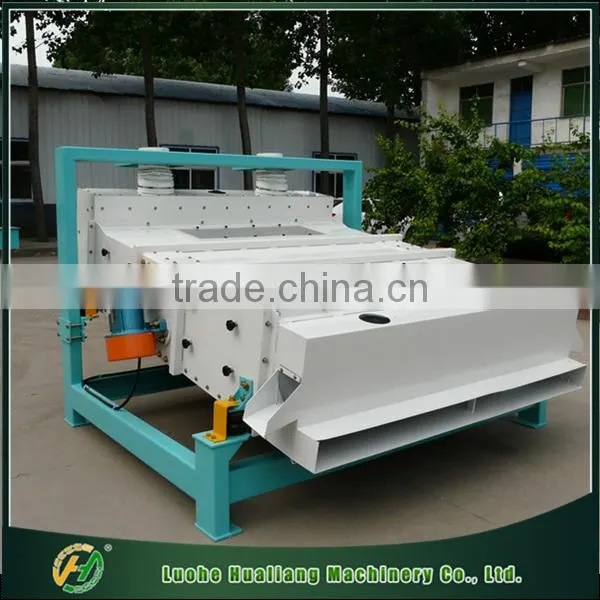

Maize Seeds Cleaning Machine Pictures
Sesame Seeds Cleaner Details
Maize Seed Cleaner Installed Pictures
Company Introduction
Luohe Hualiang Machinery is a professional manufacturer for grain cleaning equipment, dedusting equipment, powder cleaning device, grain washing equipment, lifting and conveying device and so on several series, with 15 years collect history. We have 10 production lines, 20 technicians, professional sales and after-sales teams and produce nearly hundred kinds of equipments. We also contact complete set grain cleaning line and 5TPD-1000TPD wheat/corn flour processing machinery.
Range of Cleaning
The machine not only can clean natural white sesame seeds with good effect but also can clean wheat, corn, sesame, beans and other grains, as follow:
REMARKS: If you need cleaning more than two types grain and the grains' particle sizes are not same, please tell us before, then we will equipped different screens for you. It mens you can just buy two sets screen and one machine for cleaning different grains. It is easy to change different screens for different grain.
Customers Visit
Successful Projects
Packaging
Our Services
We provide a turnkey project of grain cleaning machinery and flour processing machinery, including special design, installation, commissioning and training workers.
All of our new equipment to contain one year free spare parts, and quality guarantee period of one year.
At the same time our company will carry on the lifelong service to our products.
FAQ
Q1: How do i choose the machine model?
A: You should based on your cleaning products type and its output. Meanwhile we have professional pre-sales service personnal to help you find the most suitable product model.
Q2: If the machine fails to work, what should i do?
A: Don't worry. All of our new equipment to contain one year free spare parts and quality guarantee period of one year. At the same time, we will carry on the lifelong service.
Q3: Our staffs can't operate the machine, what can i do?
A: Our technicians will carry on training cuatomers' staffs until they can skillfully operate the machine. At the same time, will teach them some methods to solve the common faults of machines and daily repair and maintenance methods.
If you are interested in our maize seed cleaning machine, please don't hesitate to contact me. Sincerely welcome to visit our factory!!
Andy
Tel:+86-395-2353699
Mobile: 86 150 3950 1751
Skype:andy20105869
