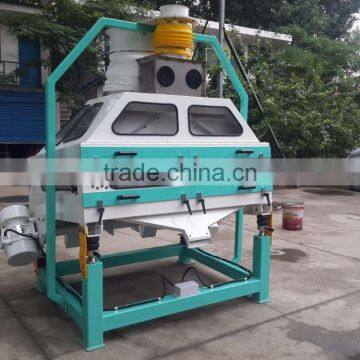

flour milling machine TQLZ series vibratory cleaning screen
Specifications:
TQLZ-series vibratory cleaning screen is mainly used for screening, separating large, medium, small and light impurities mixed in the grains, which can be widely used in milling, feed, rice milling, winery, chemical factory, food, oil extracting, corn processing and other industries to clean and grade raw material. This equipment has the advantages of low noise, stable operation, high processing capacity, less energy consumption, good cleaning effect, excellent sealing effect without dust outside. Use it together with winnowing machine for better efficacy.
Materials of design:
1. The screen body is welded by SPCC (high quality cold-rolled steel plate with standard thickness 3mm).
2. Vibrating motor adopts famous brand “Baofei” motor.
3. The screen frame is made of steel, with at least ten years’ service life.
4. The four corners are supported by imported “Austria” rubber springs, with reasonable stable structure.
5. The screen deck is made of finest manganese plate and stainless steel screen mesh which can be customized.
Treatment of Exterior:
1. All the frames have been chemically processed: acid pickling, phosphating, and anti-rust treatment.
2. Anti-corrosive primer has been sprayed firstly, then finishing coating adopts famous high quality fade-proof stoving varnish.
3. The surface is glossy, firm and not easy to fade or drop, with strong scratch-proof ability.
Technical Parameters:
Types | Output (wheat) | Power | Absorbing air volume | Weight | Screen size (W*L) | The dimension of whole machine (L*W*H) |
t/h | kw | M³/min | kg | mm | mm | |
TQLZ100*200 | 12~37.5 | 2*0.37 | 60 | 620 | 1000*1500 | 2180*1539*1673 |
TQLZ150*200 | 20~60 | 2*0.55 | 115 | 1040 | 1500*2000 | 2675*2115*1823 |
TQLZ180*200 | 22~70 | 2*0.75 | 135 | 1140 | 1800*2000 | 2675*2466*1823 |
TQLZ200*200 | 25~75 | 2*1.1 | 150 | 1250 | 2000*2000 | 2675*2643*1823 |
TQLZ125*200B*2 | 35~110 | 4*0.55 | 185 | 1750 | 1250*2000*2 | 2430*2950*2185 |
Product Details:
Applications:
Our Advantages:
1) Huge stocks can meet your urgent demand.
2) As a manufacturer, we can ensure high quality machines & competitive price for you.
3) We have our own factory, can provide you with high quality low price products.
Workshop and Facilities:
Company Information:
Luohe Hualiang Machinery Co., Ltd is a professional manufacturer of designing and installing 30-500T complete set of flour milling machinery, which designed with a compact structure, steel structure, or storey style, is easily installed and operated, requires a low initial investment.
More Choices:
Packing Pictures:
FAQ:
1) What mode of transportation do you have?
Sea transportation.
2) What are the acceptable payment methods?
T/T, 30% deposit, 70% balance before shipment or L/C at sight.
Our Services:
Engineers Overseas Aftersale Service are available.
All HUALIANG manufactured machines will be guaranteed with spare parts and service for one year upon the receiving of shipment.
