Wide usage can wash corn maize soybean millet XMS series wheat washer
RANGE OF APPLICATION
XMS-series wheat washer is one of the main equipments in the grain processing to select wheat. This series equipment adopt water scrubbing method to remove sandstone in the wheat and dirt on the surface of wheat grains. It has good performance to remove impurity of wheat, and the wheat got into drier to drying after washing. This equipment is suitable for large, medium, and small flourmills.
MATERIALS OF WHEAT WASHER
a. Wheat washer upper and low base adopt high strength cast iron materials.
b. Watertight doors, screen piece, screw conveyor sink adopt stainless steel material.
c. Upper and low bearings adopt airtight dustproof special bearings and pressure bearings.
TECHNICAL SPECIFICATION
wheat washer
Types |
XMS30 |
XMS40 |
XMS50 |
XMS60 |
XMS80 |
XMS90 |
XMS105 |
Output(kg/h) |
600 |
1000 |
2000 |
3000 |
5000 |
6800 |
12000 |
Direr direction |
anticlockwise |
anticlockwise |
anticlockwise |
anticlockwise |
anticlockwise |
anticlockwise |
anticlockwise |
Main shaft speed(r/min) |
960 |
735 |
610 |
585 |
480 |
400 |
380 |
Drier piece specification(mm) |
300 |
400 |
500 |
600 |
800 |
900 |
1050 |
Screw conveyor diameter(mm) |
115 |
135 |
135 |
135 |
135 |
185 |
185 |
Screw conveyor speed(r) |
195 |
230 |
175 |
170 |
189 |
180 |
180 |
Power(kw) |
1.5 |
3+0.75 |
4+1.1 |
5.5+1.5 |
7.5+1.5 |
11+2.2 |
15+2.2 |
|
Dimension (L*W*H)mm |
1500*480*1340 |
1780*630*1700 |
2160*750*1640 |
2520*880*1760 |
3000*1110*2130 |
3340*1250*2280 |
3550*1400*2550 |
Weight(kg) |
260 |
500 |
900 |
1300 |
2100 |
3000 |
3600 |
wheat washer

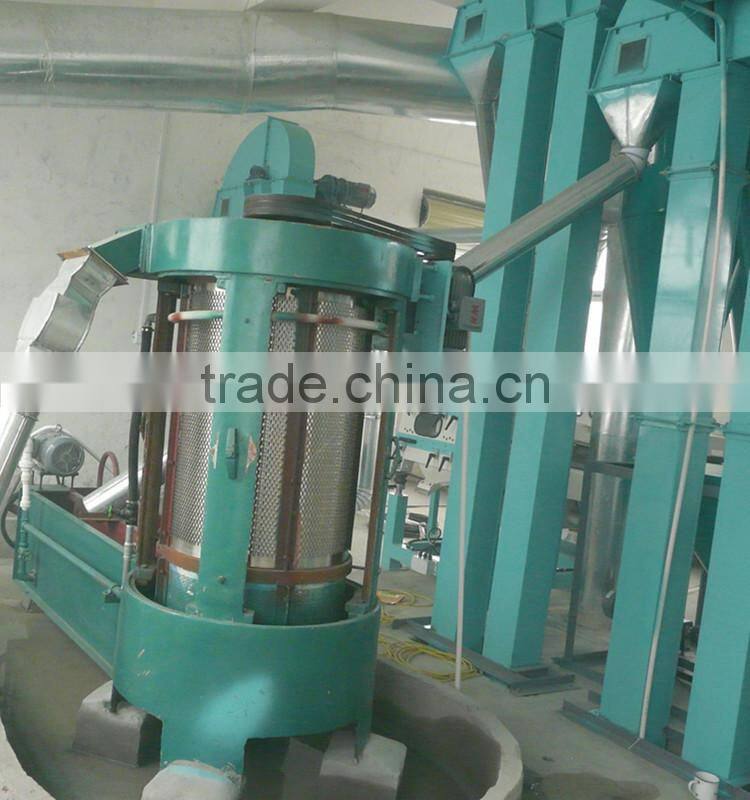

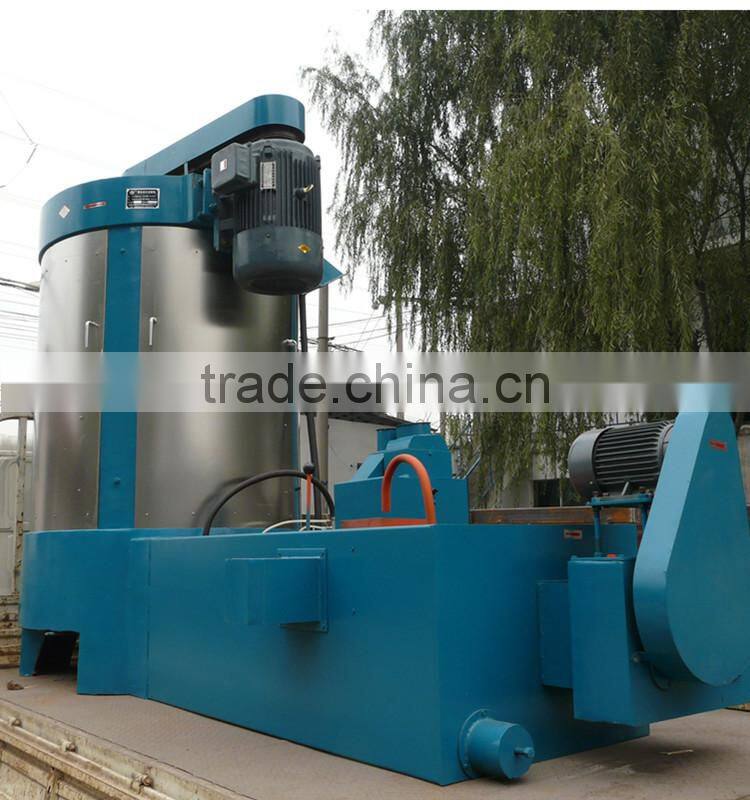

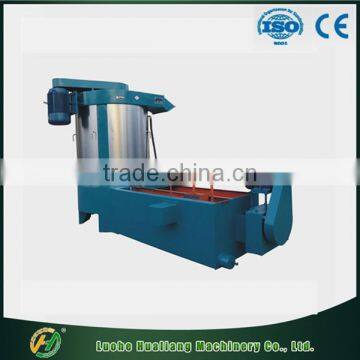

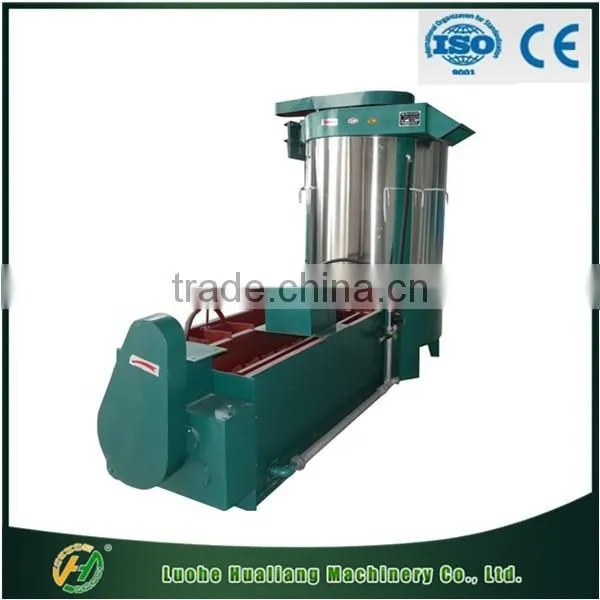

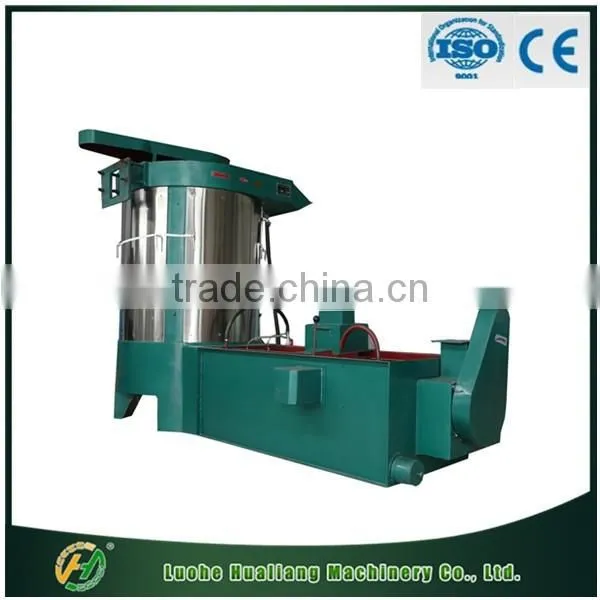

PRODUCT PICTURES
PRODUCT DETAILS
COMPANY INTRODUCTION
Luohe Hualiang Machinery is a professional manufacturer for grain cleaning equipment, dedusting equipment, powder cleaning device, washing equipment, lifting and conveying device and so on several series, with 14 years collect history. We have 10 production lines, 20 technicians , professional sales and after-sales teams and produce nearly hundred kinds of equipments. washing machine before milling wheat
OTHER PRODUCTS

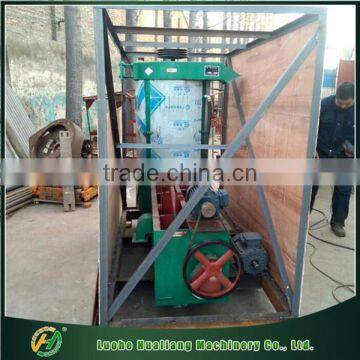

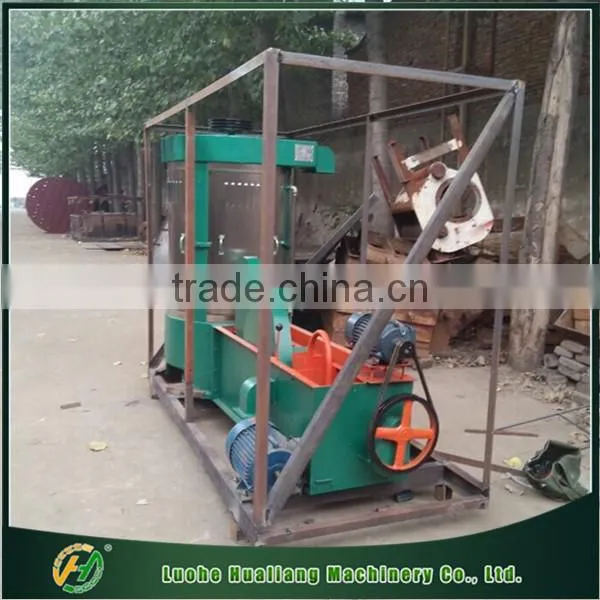

PACKAGING

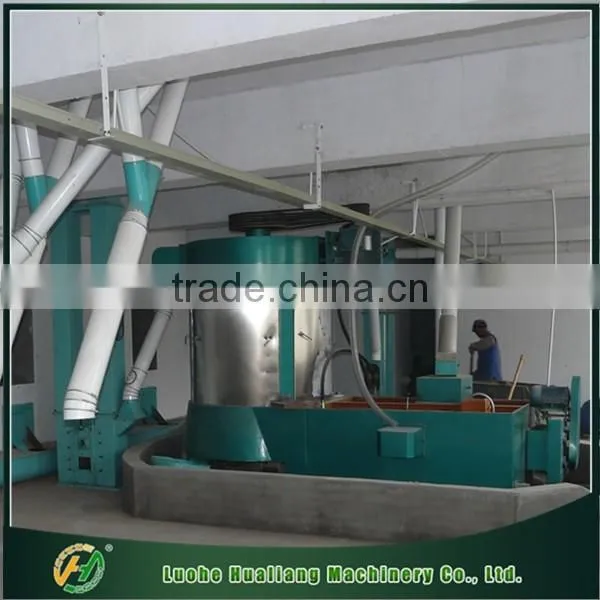

SUCCESSFUL CASES
OUR SERVICES
We provide a turnkey project of flour machinery, including special design, installation, commissioning and training workers.
All of our new equipment to contain one year free spare parts, and quality guarantee period of one year.
At the same time our company will carry on the lifelong service to our products.
FAQ
Q1.In addition to wash wheat, what it can also be used to ?
A: It not only can be used to wash wheat, can also be used to wash corn, soybean, coffee beans, sesame, etc.
Q2: How do i choose the machine model?
A: You should based on your washing products type and its output. Meanwhile we have professional pre-sales service personnal to help you find the most suitable product model.
Q3: If the machine fails to work, what should i do?
A: Don't worry. All of our new equipment to contain one year free spare parts and quality guarantee period of one year. At the same time, we will carry on the lifelong service.
Q4: Our staffs can't operate the machine, what can i do?
A: Our technicians will carry on training cuatomers' staffs until they can skillfully operate the machine. At the same time, will teach them some methods to solve the common faults of machines and daily repair and maintenance methods.
