Low Price Wheat Flour Mill Machine /plant

    Welcome select our grain processing machine, and visit our factory. Our professinal engineers and technicians will serve you with all technical support.

Application of  wheat flour mill  :

Mill wheat into Flour. (Grade/Fineness can be adjustable)

Start a Business in a  small /big wheat flour mill

Wheat Flour milling in many African countries present huge business opportunities....

With a growing population, there is scope for establishing maize and wheat flour mills in important commercial centres in the rural or urban areas.

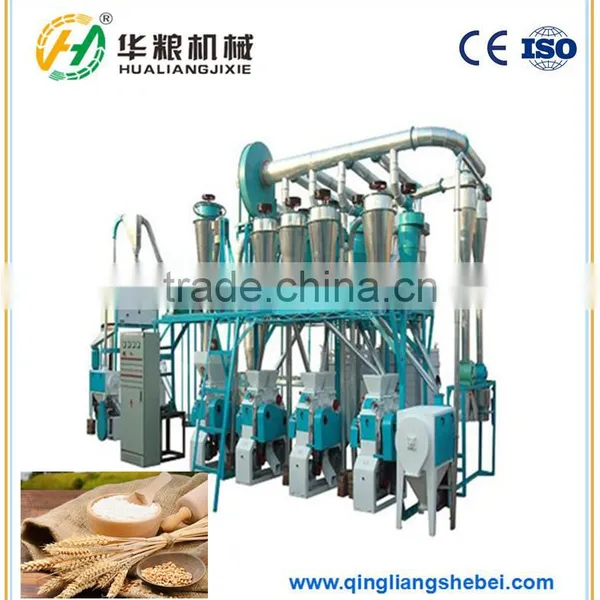

wheat flour milling machine of processing line

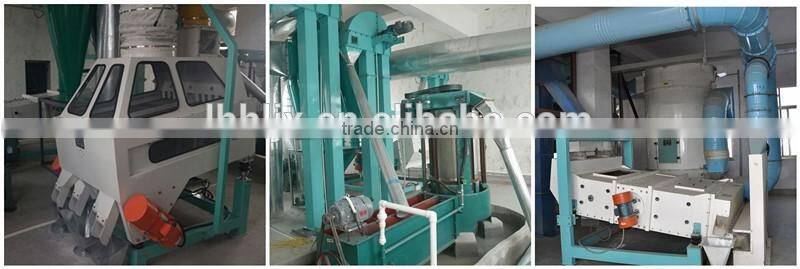

1. The clean part:

Includes beating, screening, destoner, magnetic separator and dampening. Different capacity machine line has different number of beat, screen and stoner.
To ensure the flour Quality and the working life of the mill by removing the impurities in the wheat before go to mill,

Beat: Through the beat function of the wheat scourer, brusher to remove dust sand small seed, bacterial count and insect seed.

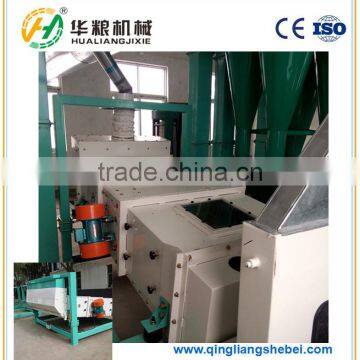

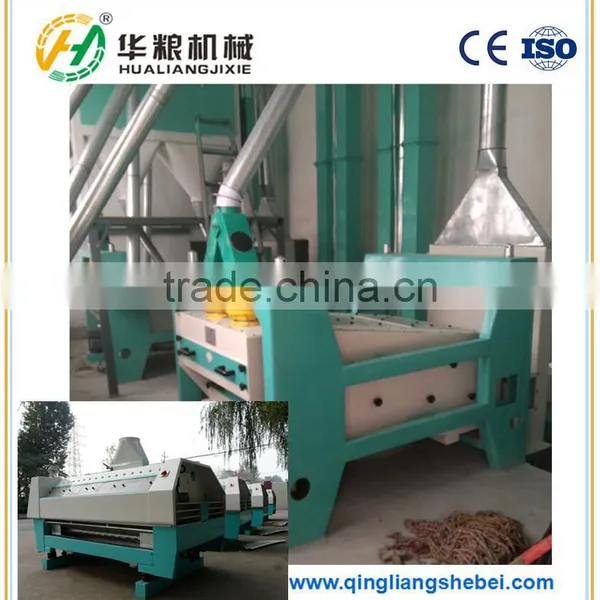

Screening: To remove large and small impurities in the wheat seed by make the wheat go through vibrating sieve and aspiration sieve.


Destoner: Mainly remove stone in the wheat to protect them milled into the flour and also protect the roller on the milling process.

Magnetic separator: Remove metal material in the wheat to keep the roller safe and also avoid flour exploration accident of spark caused by the impact of the metal impurities and the machine.
Dampening: Dampening the wheat bran before mill to ensure the bran's integrity during the milling processing, avoid the bran going into the flour to keep flour quality.

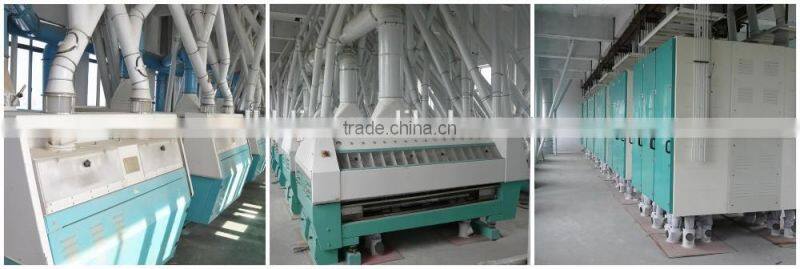

2. The flour milling part:
Include different number of mill and sifter to mill the wheat and separate the flour and bran
(1) Mill: Mill the wheat to break the integrity by the roller moving

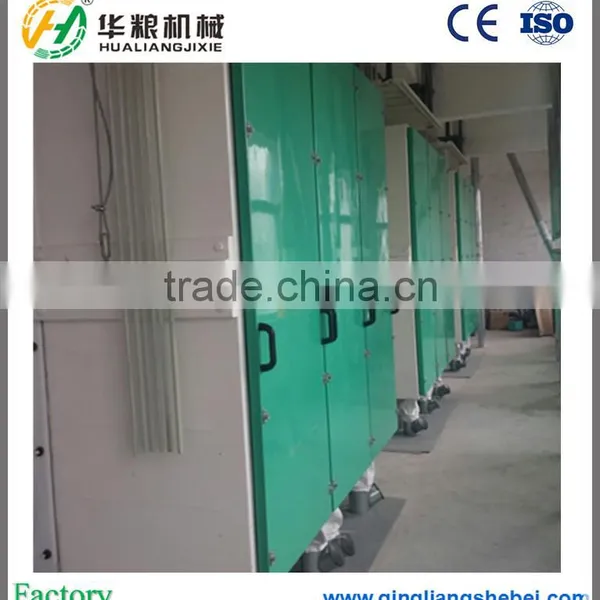

(2) Sifter: To separate the flour and bran, also separate large size and small size to enssure flour quality.

3. Packing part.

The packing part can be manual one also can be auto one, this can be designed according to requirement and machine capacity.

4. Adjustment and Operation of The Equipment

A. Maize cleaning part, peeling part and embryo separating part

Bucket Elevator III → Beating peeler → Bucket elevator II → Damper → No.5 Low pressure blower →Combined cleaning machine →Bucket Elevator I

B.  Flour milling part

No.5 Blower → Motor for flour discharger → No.5.5 Wide blower → Motor for air seal → No.2 Plansifter → No.1 Plansifter → 4th Break →3rd Break → 2nd Break → 1st Break

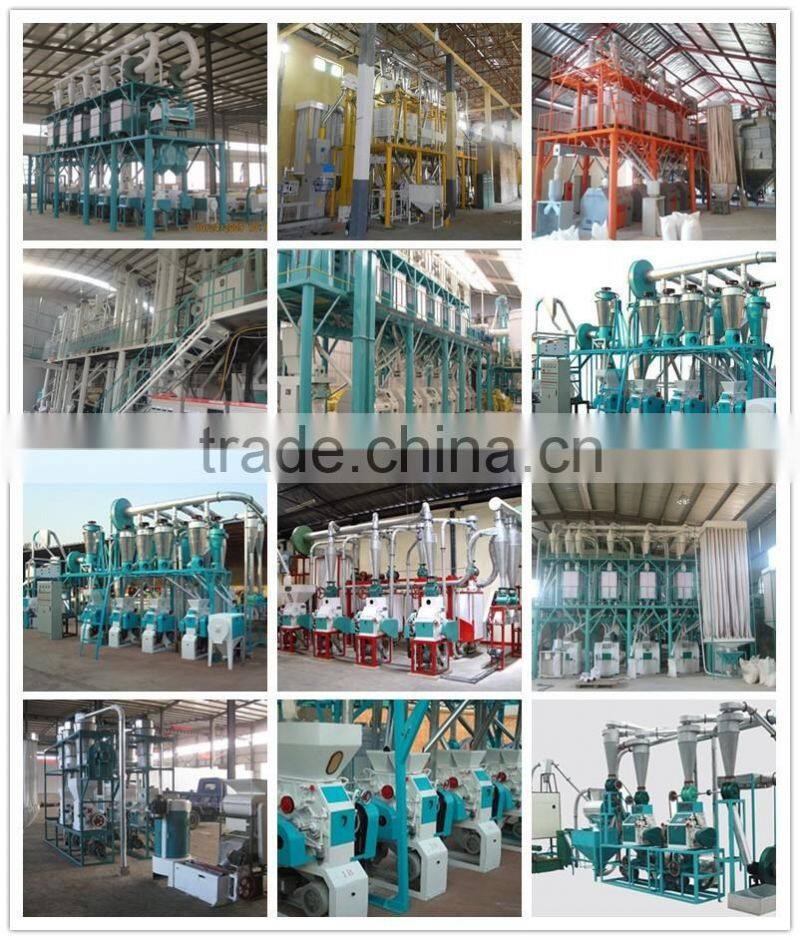

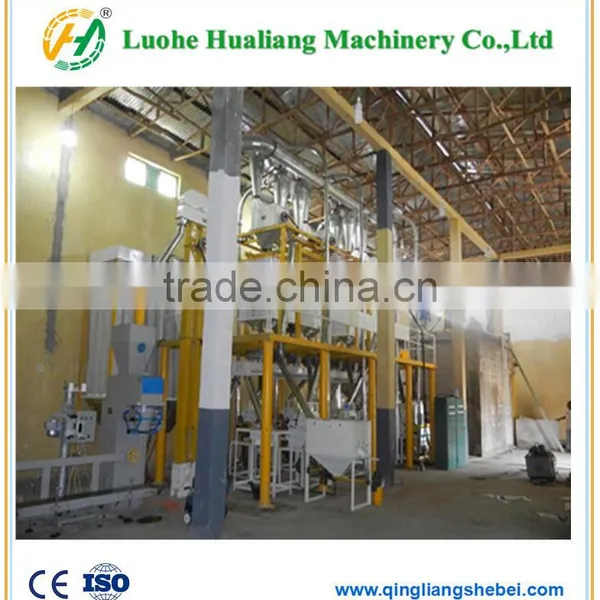

Successful case

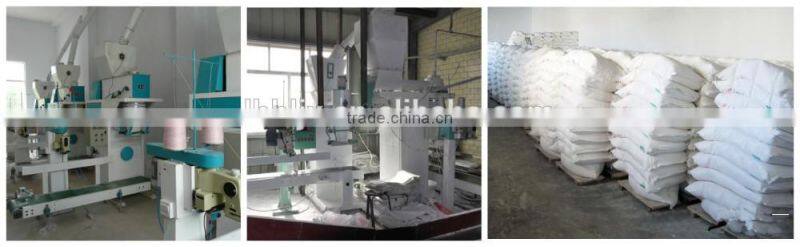

 Package and delivery

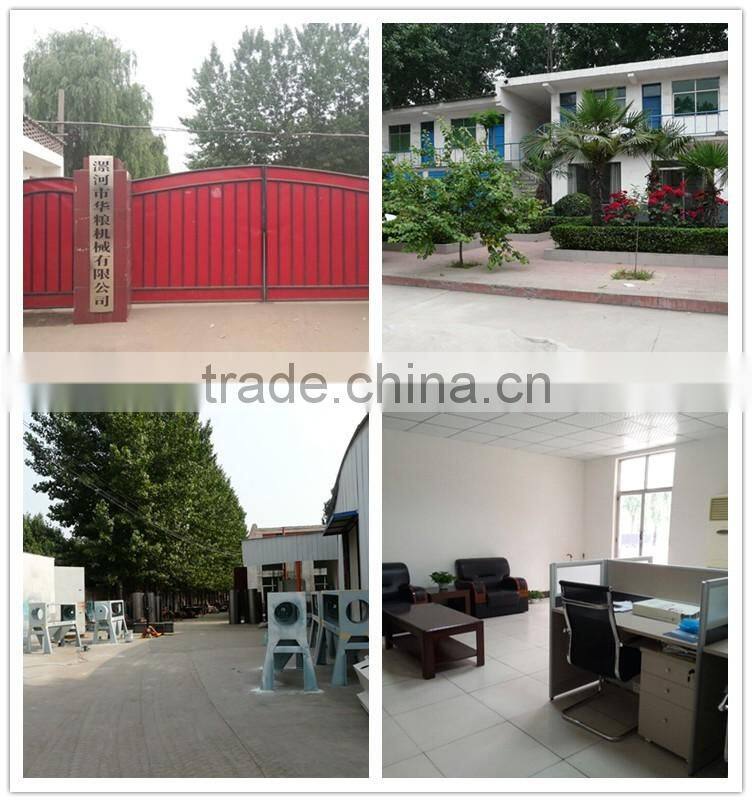

Company Information

    Luohe Hualiang MachineryCO.,Ltd,is a professional manufacturer for grain cleaning equipment, dedusting equipment,powder cleaning device, grain washing equipment, lifting and conveying device and so on several series, with 15 years collect history. We have 10 production lines, 20 technicians, professional sales and aftersales teams and produce nearly hundred kinds of equipments. We also contact complete set grain cleaning line and 5TPD1000TPD wheat/corn flour processing machinery.

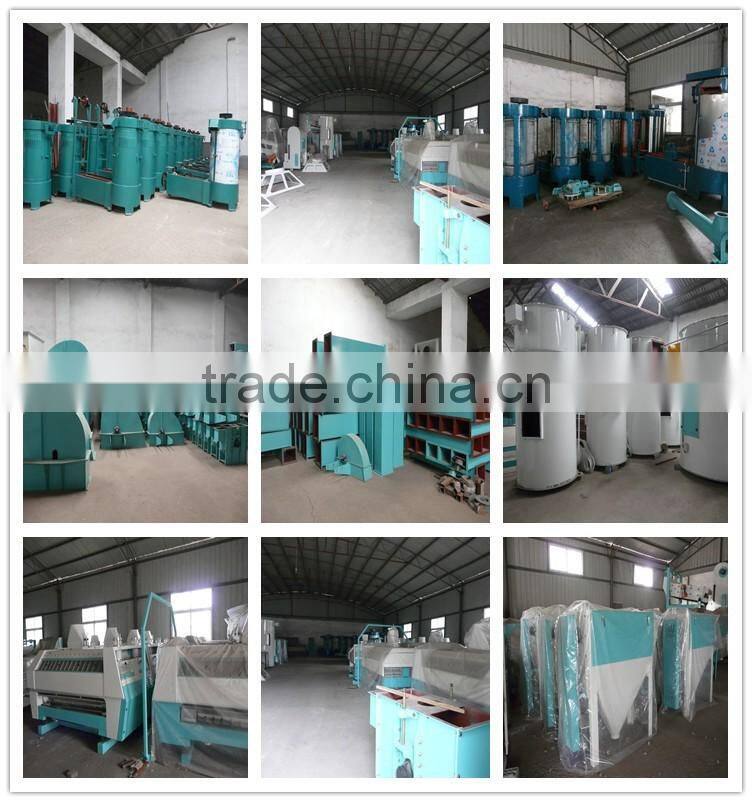

Warehouse

 certifications

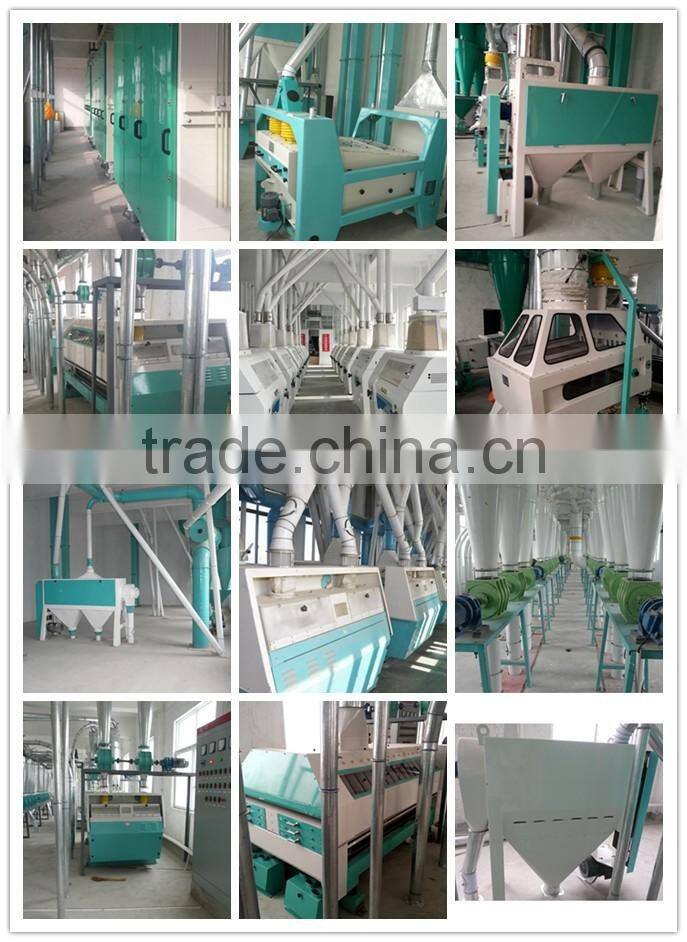

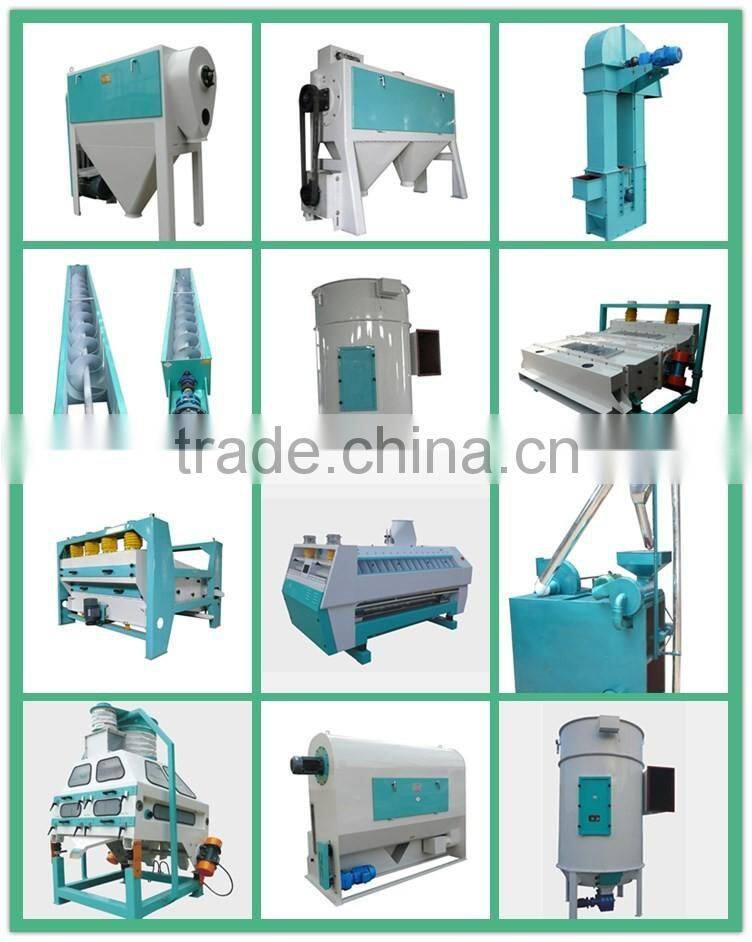

Main equipment

 Customer visit

Why choose us?

1. We offer life-long technical support by call, email.

2. Me & Our technician can give you remote guide online if you have any question.

3. We can record videos of operating the machine.

4. Free training course in our factory .

5. Engineer available to service machinery overseas.

6. Machine will be adjusted before it is delivered .

FAQ

Q1. What flour mill capacity can you provide?

A: We produce 5-1000 tons/24 hours, which means processing 5-1000 tons wheat/corn per day.

Q2: Can wheat, corn and rice produced on the same production line?

A:  Wheat, corn and rice normally can  not producing on the same production line. Because the wheat grain and corn grain has different physical property and some parts need different equipments. Even the same equipments, the model is different.

Q3: What factors need to be considered to design and install a whole set of flour milling equipments?

A:  Flour milling design need to consider the wheat/corn you are using, local geographical conditions, climate, power type, customer's request etc. So flour milling machine is different for customer from different country.

Q4.How is the quality of your product ?

Our product are manufactured strictly according to national and international standard,and we take strict test before delivery.

Q5.Guaranteed

If products’quality is not consistent with the description as we described or the promise before you place order,we promise 100% refund

Q6.How about price?

We are factory ,so we can are able to give you the competitive price in the market and discount can be given according to the quantity .

In addition ,we have a rule that for saving time and absoluthly honest business.

                   At the same quality grade, our products' price is better.

                   At the same products' price level, our service is better

Q7.Service and payment terms?

We usually accept T/T.L/C

We take pictures of finished products before delivery
