Vibrating Screen Conveyor / Best Vibrating Screen

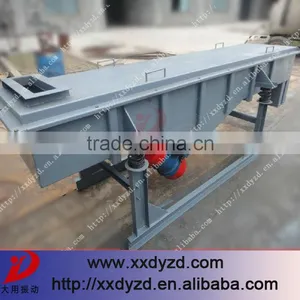

Vibrating Screen Conveyor / Best Vibrating Screen thumbnail-1
Vibrating Screen Conveyor / Best Vibrating Screen photo-1
US$ 1,800 - 8,800 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, separate
Product Type:
Other, for sand
Contact Supplier Request Quote Chat Now
Xinxiang Dayong Vibration Equipment Co., Ltd.
Gold Verified Supplier
5Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Dalian Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Other, separate
Product Type Other, for sand
Place of Origin Henan, China
Brand Name DY
Model Number DZSF-520
Voltage 380v
Power(W) 3kw
Weight according the product
Dimension(L*W*H) ***mm
Certification ISO9001:2008&CE
Warranty 12 months
After-sales Service Provided Engineers available to service machinery overseas

Specifications

vibrating screen conveyor
1.Safety operation
2.Negotiable
3.Modern design
4.Easy clean

vibrating screen conveyor


Product Description

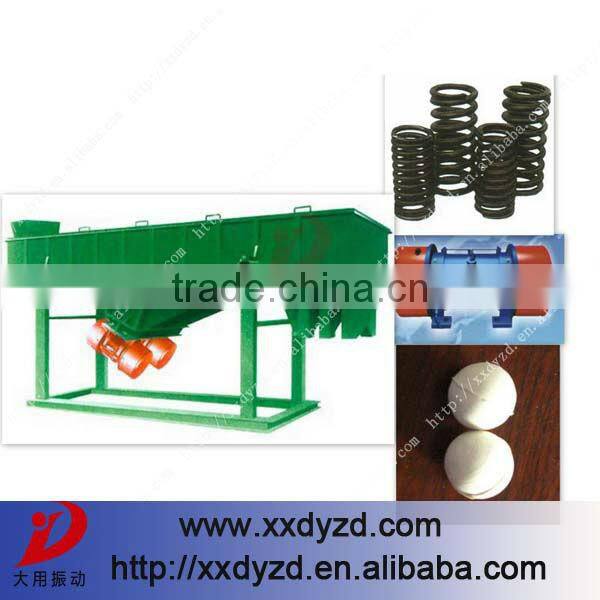

Unique Design
1.Vibration force is generated by drouble vibrating motors with adjustable unbalanced weight.
2.When changed relative installation angle of two groups unbalanced weights, vibration force can adjusted as your required.
3.Material on screen cloth be forced to make a jump-forward linear motion. Oversize material would be screened out during that time, undersize ones discharged from outlet point.
4.All steel frames are connected by blind rivet to avoid welding stress and deformation.
5.Installed hardware cloth and rubber bouncing ball under screen cloth to increase service life.
6.Provided with high quality support spring that can eliminate the impact force on the groud.
7.Our machine can be customized by your special requirements: e.g. anti-corrosion, hot-dip galvanizing, blast sanding, etc.

vibrating screen conveyor / best vibrating screen
Features
1.Tough modular design,low part weights,low acceleration,long service life of all parts, no product degradation
2.The IP54 protection rank, F level insulation, greatly extend the vibration motor's service life; motor can run in the bad environment.
3.Large proportion of separating
4.Can fit into narrow locations,so no need for expensive refitting of existing lines
5.The machine's outlet can be adjusted to any direction.
6.Additional blinding system is provided for difficult to screen and wet materials
7.Easy to operate, easy to change the screen mesh, easy to clean
8.The rubber ring is mounted between the layers,which is locked with fastening belt outside
9.Quickly change the screen in less than 5 minutes
10.Reach the high precision, high mesh sieve, the same time can control the concentration of particle section effectively
11.The screen frame may be replaced as per different mesh numbers,saving running cost

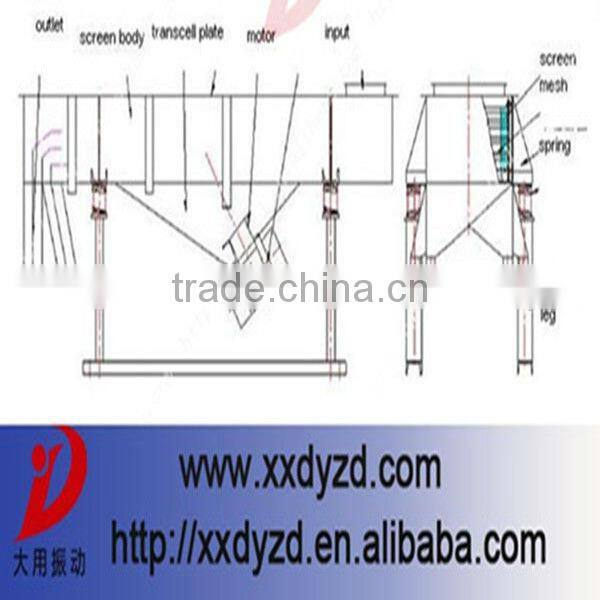

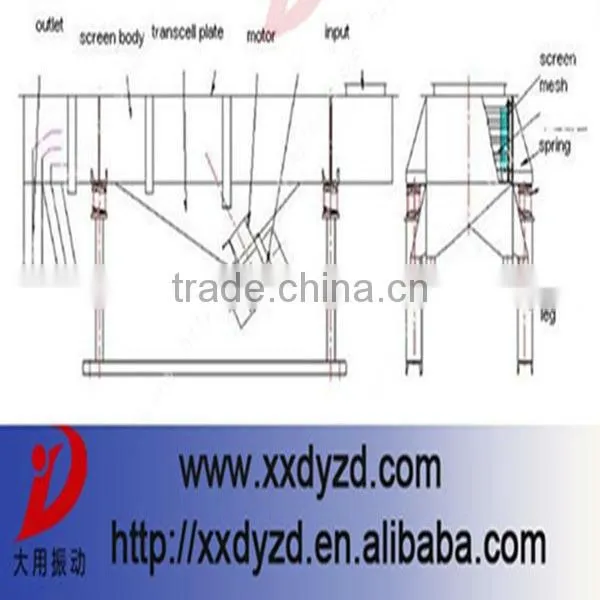

Working Principle
When the two vibrating motor that installed vertically on the sieve relatively rotate, the eccentric block of two vibrating motors produce rated excitation force. The horizontal excitation force cancel each other out, the vertical excitation force is transported to the whole screen surface through the body mass vibration. Materials do the jumping movement on the screen surface to the outlet because of the vertical excitation force. Materials which smaller than the mesh drop into the lower layer and discharge from the outlet after doing the jumping movement. Because of the reasonable screen, after vibrating screen, we can get materials of different concentration particle sizes and done the rating work of materials.

vibrating screen conveyor / best vibrating screen
Application
1. Plastic: commodity pellets, engineered pellets, PVC resin
2. Agriculture: grains and wheat, soybeans and oilseed,pellets and crumbles, meat meal, pet food,
tobacco, corn sizing (ethanol)
3.Chemical: fertilizer, ammonium sulfate, catalyst, calcium hypochlorite.
4.Mineral: abrasives and glass, sand, potash, roofing granules, slat, clay, petroleum coke,
proppant beats, industrial sand, UREA, bentonite
5. Foods: cereals, citric acid, coffee, milk, coconut, flour, rice, starch, sugar, breading, instant
coffee
6. Recycling: ground auto tires, ground PET bottles, ground glass bottles, recycled gypsum
7. Miscellaneous: metal powder steel shot, wood flour, fly ash

vibrating screen conveyor / best vibrating screen

vibrating screen conveyor / best vibrating screen

Technical parameter:

Model Dimension(mm) Granularity(mm) speed(r/min) Amplitude
DZSF-520 500*2000 0.074-60 960 2~6
Model Dimension(mm) Granularity(mm) speed(r/min) Amplitude
DZSF-525 500*2500 0.074-60 960 2~6
Model Dimension(mm) Granularity(mm) speed(r/min) Amplitude
DZSF-1020 1000*2000 0.074-60 960 2~6
Model Dimension(mm) Granularity(mm) speed(r/min) Amplitude
DZSF-1025 1000*2500 0.074-60 960 2~6
Model Dimension(mm) Granularity(mm) speed(r/min) Amplitude
DZSF-1030 1000*3000 0.074-60 960 2~6

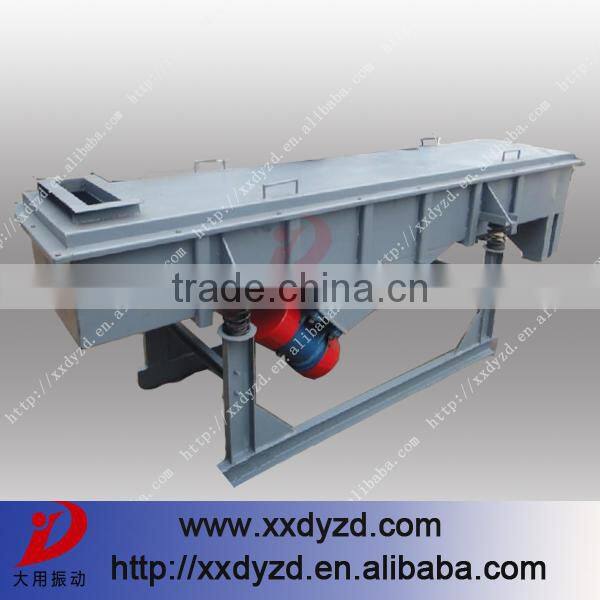

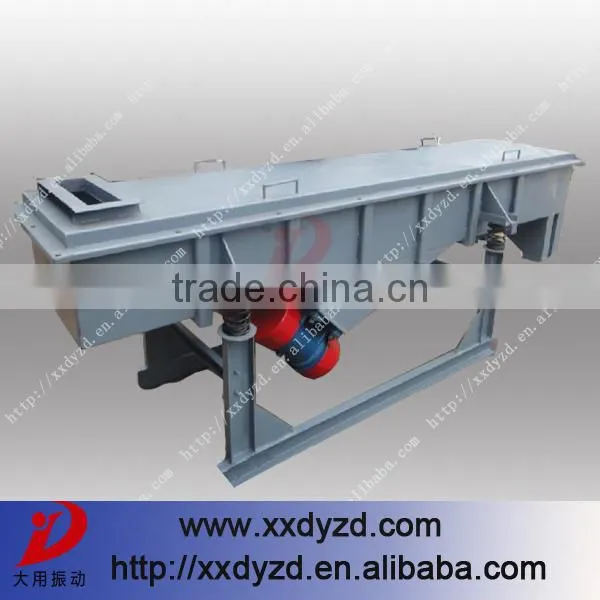

Picture show:

vibrating screen conveyor / best vibrating screenvibrating screen conveyor / best vibrating screen

More about us:

vibrating screen conveyor / best vibrating screen


Company Information

Company introduction:

Dayong vibration equipment is a professional factory to produce vibration equipment,crusher,conveyer and other mining equipment.Our company is a new-type shareholding system company which combines several decades of manufacturing experience and modern technology together.At present we have established a long-term cooperative partnership with the United States, Germany, Turkey, Indonesia, Tunisia and other countries.We are expecting to establish a long-term and win-win business relationship with the customers.



Our Services

After-sale service:

DY passed ISO9001 international quality management system accreditation ,Each step of production, from clients requirements analysis, technology feasibility analysis, solution confirmation, research and development, materials procurement, prototype production, test and experiment, manufacturing, internal quality control, packing, delivery to after-sales service, is completely complemented according to ISO9001.

Attention: Primary competive advantages:
1. Brand-name parts: Sweden ABB motor, German Siemens motor and Frequency changer, Italy Oli-motor, Japan NSK bearings. etc.
2. Country of origin: China
3. Delivery Period: 18-25 working days
4. Packing: Wooden packing. Special fumigation-free wooden material.
5. Price:We promise a factory price for each machine.
6. Product features: Dust-proof, heat-proof, oil-proof, explosion-proof.
7. Green, Environment, Performance.
