Home > Products > Vibrating Motor > YZUL series vertical vibrating sieve motor machine

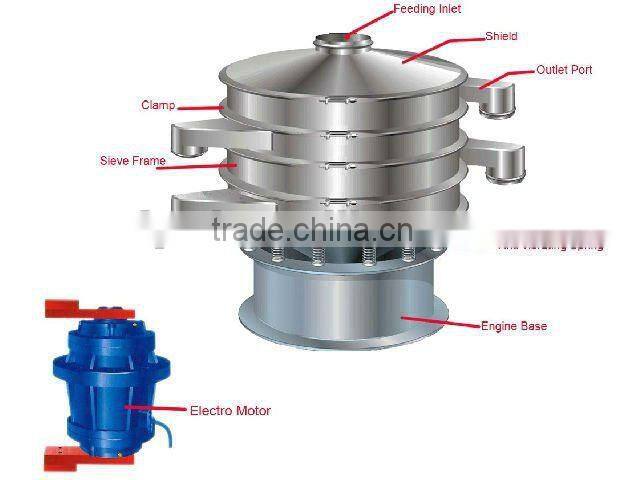

YZUL series vertical vibrating sieve motor machine
- 200 Set / Sets per Month
- QingDao or TianJin
- T/T
Product Details
Brand Name: | DaYong | Model Number: | YZUL | Type: | Other, Asynchronous Motor, Circular |
Frequency: | 50 HZ | Output Power: | 0.18 | Protect Feature: | Totally Enclosed |
Phase: | Three-phase | Certification: | Other, ISO | AC Voltage: | Other, 380V |
Place of Origin: | Henan, China | Efficiency: | IE 1 |
Packaging Details
be packed in wooden case standard export packing
Product Description
Specifications
tection grade:IP 552.stable frequency, low noise
3.Low energy consumption
4.insulation class:B or F
5.Work style:SI

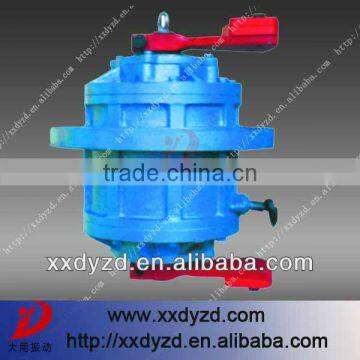

Vertical vibrating motor
Using Scope
1. Sieving equipment : linear vibrating sieve ,sieve mining ,coal washing sieve ,sieve abrasives,chemic sieve.
2. Conveying equipment: vibration conveyor ,conveyor drying vibration ,vibration vertical lifting machine.
3. Feeding equipment : vibratory feeder, vibrating hopper machine ,vibration mining machine ,vibration filling machine .
4. Other equipment: vibration fluidized bed, vibration platform
Using Conditions
1.Ambient temperature : no more than 40°c
2.Altitude: no more than 1000meters
3.Protection grade : IP55
4.Operating voltage : 380v
5.Frequency : 50HZ
6.Connection: Y or Δ
7.Insulation class: B or F
8.Work style: SI
9.Installation: In any direction
Product parameters
Model | Maximum Exciting Force(N) | Synchronous Speed(rpm) | Power(KW) | Current(A) |
YZUL-3-4 | 3000 | 1500 | 0.18 | 0.6 |
YZUL-5-4 | 5000 | 1500 | 0.25 | 0.74 |
YZUL-8-4 | 8000 | 1500 | 0.55 | 1.5 |
YZUL-10-4 | 10000 | 1500 | 0.75 | 1.85 |
YZUL-15-4 | 15000 | 1500 | 1.1 | 2.85 |
YZUL-30-4 | 30000 | 1500 | 1.5 | 3.6 |
YZUL-50-4 | 50000 | 1500 | 2.2 | 5.1 |
Note:
We can design and manufacture vibrating motor according to your special demands!
If you need it ,pls don't hesitate to contact us !
Welcome
Company Profile
Dayong Vibration Equipment Co. , Ltd. is a professional manufacturer of mechanical vibration of the professional design, development, manufacture which is also the first domestic production of vibrating screen equipment manufacturers. At present we have established a long-term cooperative partnership with the United States, Germany, Turkey, Indonesia, Tunisia and other countries.
The DY series we produced ultrasonic screening machine, CNC standard test sieves widely used in food, medicine, chemical industry, metallurgy abrasives, plastics, glass, paint, nuisance processing. Our products have a wide range of application, screening accuracy, large handling capacity, long service life advantages compared with their peers. We have 65 experienced R & D personnel, We can offer different products to meet your needs.
Our company has a superior geographic position and rich traffic. It takes about over one hour away from the Xinzheng airport . Welcome friends come to visit.
Let the world is not difficult screening material!
Contact Us
- Xinxiang Dayong Vibration Equipment Co., Ltd.
- Contact nameCathy Feng
- Phone86-373-3669005
- AddressHongqi Industrial Zone,Xinxiang City,Henan Province Xinxiang,Henan
