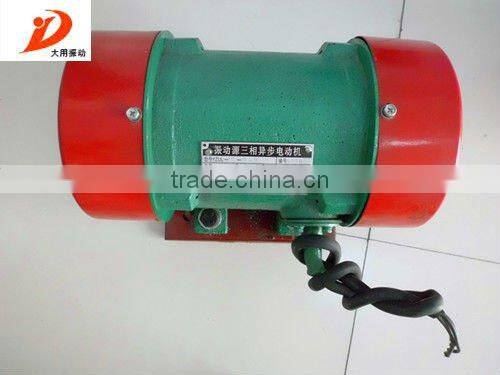

Three-phase Screen And Feeder Ac Vibrator Motor
- 500 Set / Sets per Month
- Qingdao or Tianjin
- T/T Credit Card
Product Details
Place of Origin: | Henan, China | Brand Name: | DY | Model Number: | YZS |
Packaging Details
be packed in wooden case or standard export packing
Product Description
Specifications
ac vibrator motor1.Accepted custom-made
2.Operating voltage: 220V, 380V.
3.Excellent price-performance ratio
AC vibrator motor
♦ Electric Motor Using scope:
1.sieving equipment :linear vibrating sieve ,sieve mining ,coal washing sieve ,sieve abrasives,chemic sieve.
nveying equipment :vibration conveyor ,conveyor drying vibration ,vibration vertical lifting machine.
3.feeding equipment :vibratory feeder, vibrating hopper machine ,vibration mining machine ,vibration filling machine .
4.other equipment :vibration fluidized bed, vibration platform
♦Main Technical Parameter:
Model | Exciting Force(KN) | Frequency(/min) | Motor Power(kw) | Weight(kg) |
YZS1.5-2 | 1.5 | 2870 | 0.12 | 13 |
YZS2.5-2 | 2.5 | 0.22 | 14 | |
YZS3-2 | 3 | 0.25 | 20 | |
YZS5-2 | 5 | 0.37 | 21 | |
YZS10-2 | 10 | 0.75 | 31 | |
YZS15-2 | 15 | 1.1 | 47 | |
YZS20-2 | 20 | 1.5 | 68 | |
YZS30-2 | 30 | 2.2 | 107 | |
YZS50-2 | 50 | 3.7 | 210 |
Model | Exciting Force(KN) | Frequency(/min) | Motor Power(kw) | Weight(kg) |
YZS1.0-4 | 1 | 1460 | 0.09 | 13 |
YZS1.5-4 | 1.5 | 0.12 | 16 | |
YZS3-4 | 3 | 0.18 | 22 | |
YZS5-4 | 5 | 0.25 | 32 | |
YZS10-4 | 10 | 0.55 | 49 | |
YZS15-4 | 15 | 0.75 | 76 | |
YZS20-4 | 20 | 1.1 | 82 | |
YZS30-4 | 30 | 1.5 | 117 | |
YZS50-4 | 50 | 2.2 | 219 | |
YZS75-4 | 75 | 3.7 | 360 |
Model | Exciting Force(KN) | Frequency(/min) | Motor Power(kw) | Weight(kg) |
YZS1.5-6 | 1.5 | 980 | 0.12 | 22 |
YZS3-6 | 3 | 0.25 | 35 | |
YZS5-6 | 5 | 0.37 | 50 | |
YZS10-6 | 10 | 0.75 | 82 | |
YZS15-6 | 15 | 1.1 | 125 | |
YZS20-6 | 20 | 1.5 | 130 | |
YZS30-6 | 30 | 2.2 | 190 | |
YZS40-6 | 40 | 3 | 190 | |
YZS50-6 | 50 | 3.7 | 300 | |
YZS75-6 | 75 | 5.5 | 400 | |
YZS100-6 | 100 | 7.5 | 420 | |
YZS125-6 | 125 | 8.5 | 468 |
♦Product pictures:
♥Our operation principle is mutual reciprocity and mutual benefit, Intimate service!
