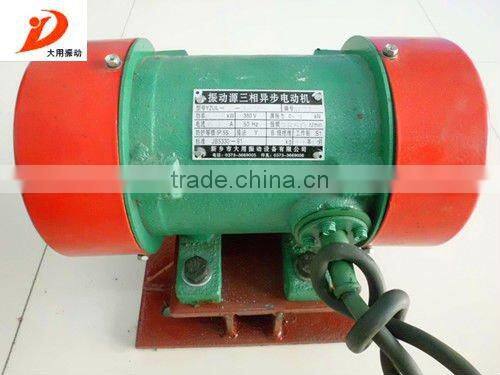

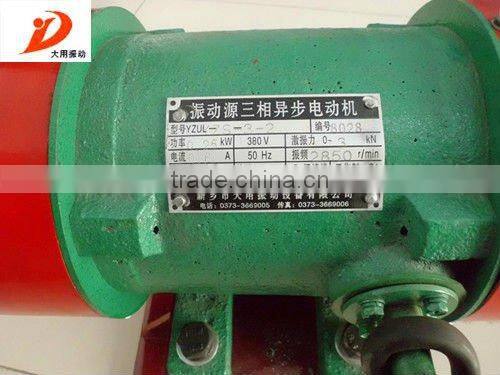

DY Horizontal Three Phase Vibrating Motor
- QingDao or TianJin
- T/T Money Gram
You May Like
Product Details
| Place of Origin | Henan, China | Brand Name | DY | |
| Model Number | YZS |
be backed inwooden case or standard export packing
Product Description
Specifications
1.stable frequency2.Low energy consumption
3.Multi-role motor
4.ISO9001:2000
5.500-3000
Features
1 .Small volume, light weight
2. Low energy consumption, low noise, long life
3. High efficiency, start quickly,
4. Convenient installation, easy maintenance
Using scope
1.Sieving equipment:linear vibrating sieve, sieve mining, coal washing sieve,sieve abrasives, chemic sieve.
2.Conveying equipment:vibration conveyor, conveyor drying vibration,vibration vertical lifting machine.
3.Feeding equipment:vibratory feeder, vibrating hopper machine ,vibration mining machine ,vibration filling machine .
4. Other equipment:vibration fluidized bed, vibration platform
Using conditions
Ambient temperature---no more than 40°C
Altitude---no more than 1000 meters
Protection grade---IP55
Operation voltage---380V
Frequency---50HZ
Work style---SI
Technical parameters
Model | Exciting Force(KN) | Frequency(/min) | Motor Power(kw) | Weight(kg) |
YZS1.5-2 | 1.5 | 2870 | 0.12 | 13 |
YZS2.5-2 | 2.5 | 0.22 | 14 | |
YZS3-2 | 3 | 0.25 | 20 | |
YZS5-2 | 5 | 0.37 | 21 | |
YZS10-2 | 10 | 0.75 | 31 | |
YZS15-2 | 15 | 1.1 | 47 | |
YZS20-2 | 20 | 1.5 | 68 | |
YZS30-2 | 30 | 2.2 | 107 | |
YZS50-2 | 50 | 3.7 | 210 |
Model | Exciting Force(KN) | Frequency(/min) | Motor Power(kw) | Weight(kg) |
YZS1.0-4 | 1 | 1460 | 0.09 | 13 |
YZS1.5-4 | 1.5 | 0.12 | 16 | |
YZS3-4 | 3 | 0.18 | 22 | |
YZS5-4 | 5 | 0.25 | 32 | |
YZS10-4 | 10 | 0.55 | 49 | |
YZS15-4 | 15 | 0.75 | 76 | |
YZS20-4 | 20 | 1.1 | 82 | |
YZS30-4 | 30 | 1.5 | 117 | |
YZS50-4 | 50 | 2.2 | 219 | |
YZS75-4 | 75 | 3.7 | 360 |
NOTE:we can design special type of product according to your special demand.
We will be healed the enthusiasm for you to provide more perfect service!
Company Profile
Dayong Vibration Equipment Co. , Ltd. is a professional manufacturer of mechanical vibration of the professional design, development, manufacture which is also the first domestic production of vibrating screen equipment manufacturers. At present we have established a long-term cooperative partnership with the United States, Germany, Turkey, Indonesia, Tunisia and other countries. The DY series we produced ultrasonic screening machine, CNC standard test sieves widely used in food, medicine, chemical industry, metallurgy abrasives, plastics, glass, paint, nuisance processing. Our products have a wide range of application, screening accuracy, large handling capacity, long service life advantages compared with their peers. We have 65 experienced R & D personnel, We can offer different products to meet your needs. Our company has a superior geographic position and rich traffic. It takes about over one hour away from the Xinzheng airport . Welcome friends come to visit. Let the world is not difficult screening material!
