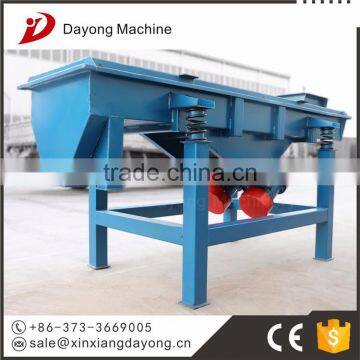

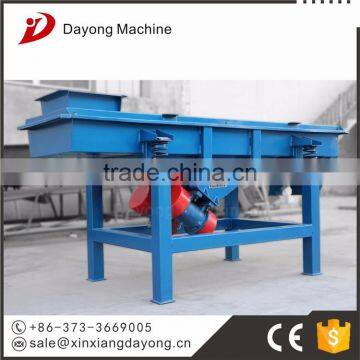

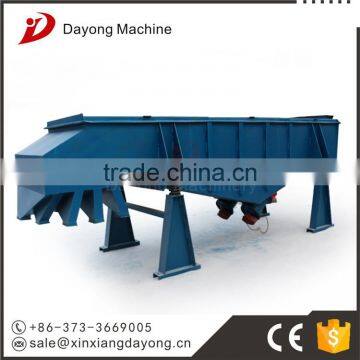

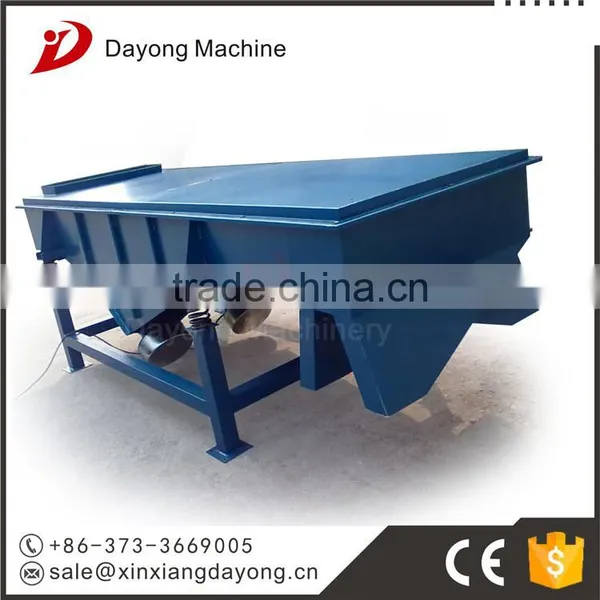

DAYONG brand free $200 coupon coffee bean carbon steel large capacity linear vibration screen/separator
- 200 Set / Sets per Month
- shanghai qingdao or you required
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Condition: | New | Type: | Linear | Application: | Other, linear heavy vibration screen for ore, Granular, fine material,chemicals, food, agriculture etc |
Place of Origin: | Henan, China | Brand Name: | DAYONG | Model Number: | DZSF-520 |
Voltage: | 220V/380V/415V/450V | Power(W): | 0.4kw*2 | Dimension(L*W*H): | 500*2500mm |
Weight: | 200kg | Certification: | ISO9001:2008 | Warranty: | 12 months + 6 months |
After-sales Service Provided: | Engineers available to service machinery overseas |
Packaging Details
Wooden packing. the packing size should be according to the actual size
Product Description
Inquiry us for $200coupon,only 1 week left.
Inquiry us for $200coupon,only 1 week left.
- Easy to operate and maintain.
- Low consumption with high yield and low cost.
- Fully enclosed structure, automatic layout, more suitable for pipeline operations.
- Good sealing without dust flying.
- Can be used for single or multi layer.
- Material auto discharge, be able to continuous operation.
- Every part of the screen box used copper plate and section welded together.
Application in details:
1) Chemical industry: resin pigment, medicine, grease, paint, palette, etc.
2) Organic fertilizer industry.
3) Plastics industry.
4) Abrasive material and ceramic industry: building sand, mica, alumina, abrasive, refractory material, slurry, etc.
5) Food industry: sugar, salt, alkali, gourmet powder, starch, milk powder, yeast powder, pollen, food additive, bean milk, juice, etc.
6) Paper-making industry: coated slurry, exhaust liquid, paper making liquid and waste water reclamation, etc.
7) Metallurgy and mining industry: quartz sand, ore, titanium oxide, zinc oxide, etc.
8) Mechanical industry: casting sand, powder metallurgy, electromagnetic material and metal powder, etc
Inquiry us for $200coupon,only 1 week left.
Model | W*L (mm) | Power(KW) | Mesh size(mm) | screen surface angle (°) | Amplitude(mm) | Layer |
DZSF-520 | 500*2000 | 2*(0.4-0.75) | 2-200 | 0°-7° | 4-8 | 1-7 |
DZSF-525 | 500*2500 | |||||
DZSF-1020 | 1000*2000 | |||||
DZSF-1025 | 1000*2500 | 2*(0.4-1.1) | ||||
DZSF-1030 | 1000*3000 | 2*(1.1-1.5) | ||||
DZSF-1040 | 1000*4000 | |||||
DZSF-1235 | 1200*3500 | 2*(1.1-2.2) | ||||
DZSF-1250 | 1200*5000 | |||||
DZSF-1535 | 1500*3500 | |||||
DZSF-1560 | 1500*6000 | 2*(2.2-3.7) | ||||
DZSF-1845 | 1800*4500 | |||||
DZSF-2050 | 2000*5000 | |||||
DZSF-2260 | 2200*6000 |
Packing information:
Available Options:
- Voltage:110v,220V,230v,380V,415v,440v
- structure material:all carbon steel Q205;Contact part stainlee steel;all stainless steel 304/316L
- Custom paint color:Green,blue,white,orange or other
- Increase or decrease parts:as your request
Not only Sell Machines, But also Build Solutions.
- Design the equipment according to your technical request.
- Providing solutions according to the real situation.
- If needed, relevant technical documents would be available.
- Payment terms is flexible.
- Delivery on time
- Warranty: 12 months.
- 13 years engaged in machinery production
- 65 experienced R & D personnel to provide technical guide
- Certification supporting
- Standard production workshop
- Professional sales team
1.How to choose the machine?
a: Customers who are familiar with technical performance and parameters can directly order.
Note: You had better send us the pictures you have ever used.
b: Customers who need us to choose the models, please follow the information, tell us:
- Name and feature of the raw material?
- Aim of using: get rid of impurity, filtration, grading
- Handling capacity: kg /h, L/h
- The raw material size: (mesh or mm)
- How many final materials you want, or how many layer you need?
Note: You had better send us the relevant pictures about the details.
2.How many kinds of material are supported?
- All stainless steel (304, 316L)
- All carbon steel Q235A
- Contact part Stainless steel.
3.Is it special requirement available?
Yes, the equipment could be designed according to customer's using aim or special requirements.
Contact person:Laura
Skype: xinxiangdayong06
Whatsapp/Viber/Line: 0086-13849388672
;
Inquiry us for $200coupon,only 1 week left.
Company Profile
Dayong Vibration Equipment Co. , Ltd. is a professional manufacturer of mechanical vibration of the professional design, development, manufacture which is also the first domestic production of vibrating screen equipment manufacturers. At present we have established a long-term cooperative partnership with the United States, Germany, Turkey, Indonesia, Tunisia and other countries.
The DY series we produced ultrasonic screening machine, CNC standard test sieves widely used in food, medicine, chemical industry, metallurgy abrasives, plastics, glass, paint, nuisance processing. Our products have a wide range of application, screening accuracy, large handling capacity, long service life advantages compared with their peers. We have 65 experienced R & D personnel, We can offer different products to meet your needs.
Our company has a superior geographic position and rich traffic. It takes about over one hour away from the Xinzheng airport . Welcome friends come to visit.
Let the world is not difficult screening material!
Contact Us
- Xinxiang Dayong Vibration Equipment Co., Ltd.
- Contact nameCathy Feng
- Phone86-373-3669005
- AddressHongqi Industrial Zone,Xinxiang City,Henan Province Xinxiang,Henan
