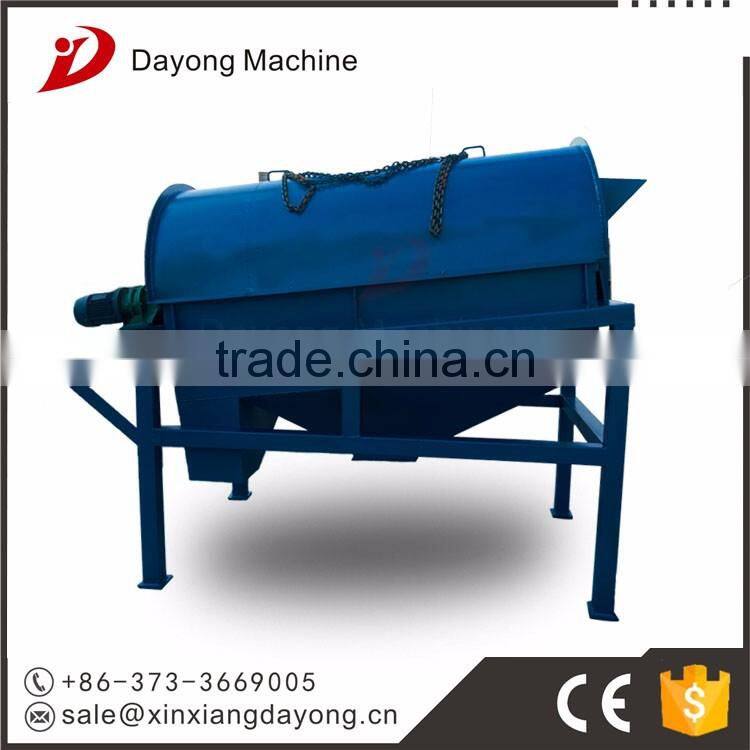

Mobile trommel sieve shaker for garbage disposal
| Working principle | Roller screen mainly consists motor,reduction gear,roller device,frame,hermetic,seal material,in and out of mouth.Roller device slantly put on the frame.The motor drive the roller device to move around axis.Due to roller device's tilt and rotation, materialput into the roller device begin rolling over.Then the qualified material pass through the screen and the rest of material discharge from the bottom.
|
| Main Parts | Motor,Reducer,Drum gear,Frame,Sealing cover
|
| Advantages | 1.The machine's outlet can be adjusted to any direction. Sieved material can be discharged straight away, suitable for automatic operation.
|
2.Wet drum separators are available in different configuration like single drum, double drum and multiple drum.The drum is made from thick stainless steel for long service life
| |
3.The IP54 protection rank, F level insulation, though work 24 hours a day also can greatly extend the vibration motor's service life; motor can run in the bad environment.
| |
| Application | 1.Quarry industry: suitable for screening and classifying gravel, clay, mountain meal, sand, etc. 2.Coal Industry: suitable for screening and classifying lump coal, coal dust, coal washing, etc. 3.Chemical industry: fertilizer industry etc. 4.Mineral-selecting Industry: suitable for grading and classifying lump, powder substance, etc. 5.Metallurgy, construction, building materials, abrasives, and other industries
|
| Model | Diameter(mm) | Capacity(m3/h) | Power(kw) | Length of Screen Surface(mm) |
| DYT-600 | Φ600 | 1~5 | 3 | 1500-3000 or as requested, It is related to the sifting ratio of the material |
Services
According to the ISO9001 series standard,we have established the quality manual and program files,established the quality responsibility system so as to ensure the standard quality of our vibrating screen. We care about all of our customers and seek to give each one attentive service.” Quick response, efficiency and professional” is our after-sale service standard which we always carry on. While there are any technical or operation questions during usage, or any product quality problems feedback, please call or email us. Our 24/7 service shall respond you as thoroughly and quickly as possible.
Company brief introduction
Our company is the manufacturer which produces manufacture of the vibrating screen for many years.Our enterprise is professional in vibration machine which are widely used in screening and conveying. We are also specialized in the design and manufacture of other related supporting products.With the excellent equipment, the rich technical, the complete detection method and great after- services,our production is famous for advanced design, precise manufacture, stable quality and reasonable price.
