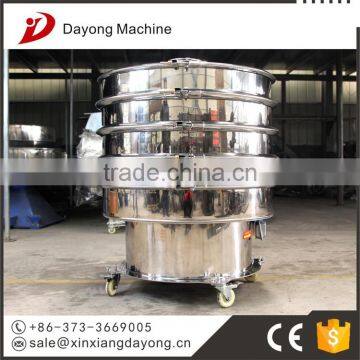

Help CenterStainless Steel Vibrating Screen Sieve for Brown Sugar Separation
Related Products
-
Stainless Steel High Separation Rate Vibration Sieve for Protein PowderUS$ 600 - 7,000MOQ: 1 Set -
Friction Materials Separate Vibration ScreensUS$ 2,800 - 6,000MOQ: 1 Set
-
Pulp Separator Filter SieveUS$ 2,800 - 6,000MOQ: 1 Set
-
Zirconia Beads Separate Sieving Vibration ScreensUS$ 2,800 - 6,000MOQ: 1 Set
-
Welding Rod ScreeningUS$ 2,800 - 6,000MOQ: 1 Set
5 We emphasize each detail, just for your a trust !
|
DY-600-1S DY-600-2S DY-600-3S |
0.35-0.55kw |
550mm |
800*800*680 800*800*780 800*800*880 |
1 2 3 |
|
DY-800-1S DY-800-2S DY-800-3S |
0.55-0.75 kw |
750mm |
900*900*780 900*900*930 900*900*1080 |
1 2 3 |
|
DY-1000-1S DY-1000-2S DY-1000-3S |
0.75-1.5 kw |
950mm |
1160*1160*880 1160*1160*1030 1160*1160*1180 |
1 2 3 |
|
DY-1200-1S DY-1200-2S DY-1200-3S |
1.5-1.75 kw |
1150 mm |
1360*1360*980 1360*1360*1160 1360*1360*1360 |
1 2 3 |
|
DY-1500-1S DY-1500-2S DY-1500-3S |
1.75-2.2 kw |
1450mm |
1850*1850*1130 1850*1850*1330 1850*1850*1550 |
1 2 3 |
|
DY-1800-1S DY-1800-2S DY-1800-3S |
2.2 kw |
1750mm |
2200*2200*1360 2200*2200*1460 2200*2200*1680 |
1 2 3 |
♦ Cast the good material into the quality product!
- The sust cover is hydroforming in one time, Increase strength, no welds, flat taper, smooth discharge
- The screen frame is solid,not easy to break
- We choose the small difference steel sheets, the error less that 10%
- ASTM standrad sieve
- α angle can be made 95 °, good sealability
- Vibrator using self-developed automatic welding, flat welds, no slag
| 1) Food industry: sugar, salt, alkali, gourmet powder, starch, milk powder, yeast powder, pollen, food additive, bean milk, juice, etc. |
| 2) Chemical industry: resin pigment, medicine, grease, paint, palette, etc. |
| 3) Medicine Industry: Pills, tablets, capsules, granules |
| 4) Abrasive material and ceramic industry |
| 5) The Building industry: sand , cement,Pebble |
| 6) Plastics industry. |
| 7) Organic fertilizer industry. |
| 8) Mechanical industry: casting sand, powder metallurgy, electromagnetic material and metal powder, etc |
| 9) Paper-making industry: coated slurry, exhaust liquid, paper making liquid and waste water reclamation, etc. |
Wooden case , Plywood case or according to customer's requirement
Welcome to vist our factory
a: Customers who are familiar with technical performance and parameters can directly order.
It appreciate If you send us the pictures you have ever used.
b: Customers who need us to choose the models, please tell us follow the information, :
Name and feature of the raw material?
Aim of using: get rid of impurity, filtration, grading
Handling capacity: kg /h, L/h
The raw material size: (mesh or mm)
How many final materials you want, or how many layer you need?
It appreciate If you send us the relevant pictures about the details.
c: How many kinds of material are supported?
All stainless steel (304, 316L)
All carbon steel Q235A
Contact part Stainless steel.
d: Is it special requirement available?
Yes, the equipment could be designed according to customer's using aim or special requirements.
