GMP Stainless steel vibrating sieve machine for tablet
The vibrating sieve machine is widely used throughout the Pharmaceutical Industry. The screening of granular material for use in tablets and capsules poses blinding and dust control problems for pharmaceutical manufacturers.
For those applications where containment is an issue, the vibrating sieve machine allows for safer handling because of its fully contained, highly polished, crevice-free interior design. vibrating sieve machine is designed for use in Class 100 Clean Room environments.
Product Feature
1. The vibration power come from the center-of-inertia of rotating motor shaft, make the screen body produces approximate circular trajectory, the materials rotating rolling on the screen surface, rolling forward at the same time, with a certain rolling effect.
2.The machine could match with vibrating feeder, the material could feed into the screen machine equably.
3.Special made the screen and screen mesh size, not blocking the screen, screening efficiency is higher.
4. Unique design of vibration amplitude and frequency, dry pill is not broken, wet pill will not stick and not blocked.
5. Low consumption, high output, fully closed structure, automatic discharge the material, more suitable for assembly line production.
Technical parameter:
Model |
Size(mm) |
Material size(mm) |
Inclination |
Amplitude(mm) |
Layer |
Power(KW) |
GFZX-515 |
500×1500 |
0.25-15 |
0-7 degree |
1-8 |
1-3 layer |
2*(0.15-0.25) |
GFZX-520 |
500×2000 |
2*(0.15-0.25) |
||||
GFZX-615 |
600×1500 |
2*(0.15-0.25) |
||||
GFZX-620 |
600×2000 |
2*(0.25-0.4) |
||||
GFZX-820 |
800×2000 |
2*(0.4-1.1) |
||||
GFZX-825 |
800×2500 |
2*(0.75-1.1) |
Machine in customer workshop:

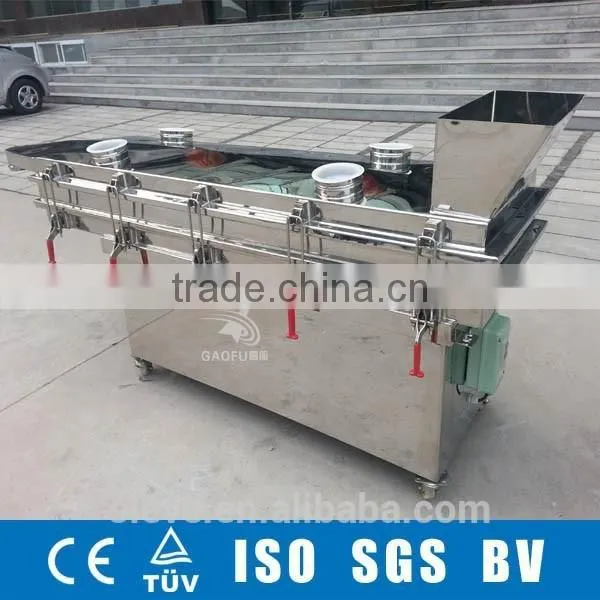

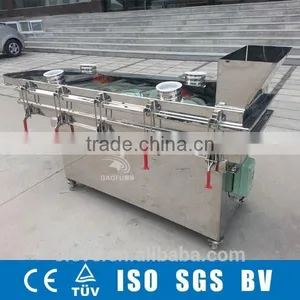

New machine:
