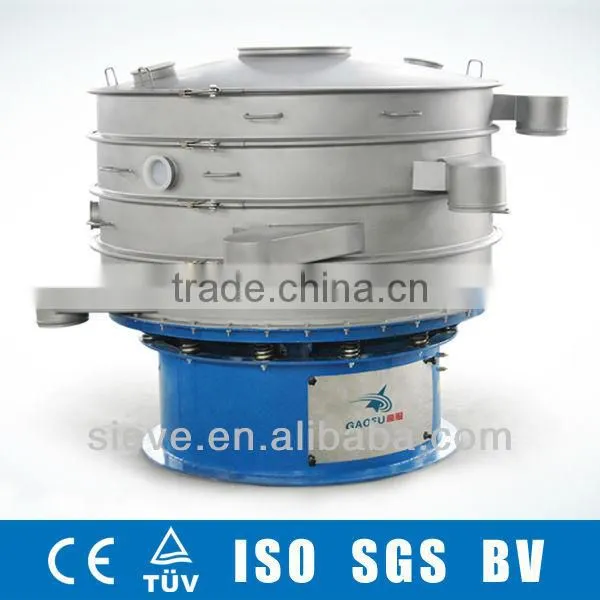

Rotary Vibrating Sieve in plastics industry
Principle of the structure :
S49-A series rotary vibrating screen use upright motor as the source of vibration,equipped eccentricity hammer on the both sides of motor ,change circumrotate to level, upright and incline movement, then pass these three movement to the surface of the screen.Adjust the phasic angle on the both sides of the top and bottom to change the movement orbits of the surface screen.
Typical Applications :
♦ Dry separation
-Separation of different materials on the basis of their particle shape
♦ Solid/Liquid separation
-Dewatering of solids and clarification of liquids
♦ Solids classification in liquid medium
-Separation of solids into sized fraction in a liquid medium
-Chemicals, minerals, pulp and paper, ceramics, waste disposal
Main Features and Certificate
♦ Small volume with easy moving
♦ High efficiency with compact structure
♦ Easy operation and maintenance
♦ Long screen life, easy&quick screen cloth exchange
♦ Equipped with anti-blinding device(bouncing balls), as well as dust-proof cover
♦ ISO9001:2008, CE certification
Technical parameters
Model |
Effective Diameter for sieving surface(mm) |
Effective sieving area(m2) |
Sieving mesh specification |
Layers |
Power(KW) |
|
Vibration motor |
Common motor |
|||||
S49-400 |
340 |
0.0907 |
2-500 mesh |
1-5 |
0.18 |
|
S49-600 |
540 |
0.2289 |
2-500 mesh |
1-5 |
1.25- |
0.75 |
S49-800 |
730 |
0.4183 |
2-500 mesh |
1-5 |
1.55 |
1.1 |
S49-100 |
900 |
0.6359 |
2-500 mesh |
1-5 |
1.1 |
1.5 |
S49-1200 |
1100 |
0.9499 |
2-500 mesh |
1-5 |
1.1 |
1.5 |
S49-1500 |
1400 |
1.5386 |
2-500 mesh |
1-5 |
1.5 |
2.2 |
S49-1800 |
1700 |
2.2687 |
2-500 mesh |
1-5 |
4 |
3.0 |
S49-2000 |
1886 |
2.7922 |
2-500 mesh |
1-5 |
4 |
3.0 |

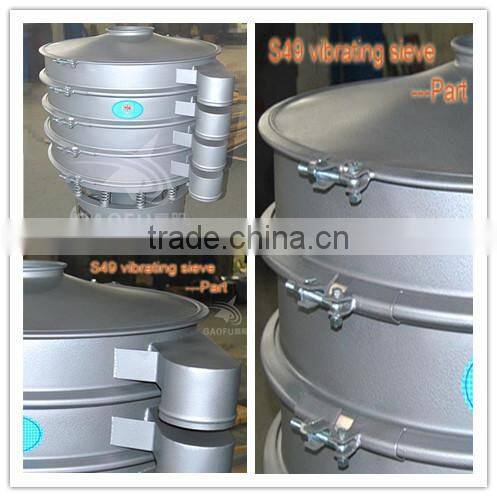

Products ' Detail :
Package for shipment :
The process equipment :
Note:
All technical information and size of our products based on the real machine . The machine can be customized according to different requirements of customers
Our operation principle is mutual reciprocity and mutual benefit , Intimate service !
After sales service :
Our Factory :
