linear shaking screen for coconut active charcoal
SZF Series linear shaking screenis low consuming, high output, simple structure, easy maintain, no powder dispersed, automobile discharged.
It can be used universally for test screening or to produce between 2 and 4 screen fractions. A good screening effect is achieved by the circular vibration in the vertical plane.

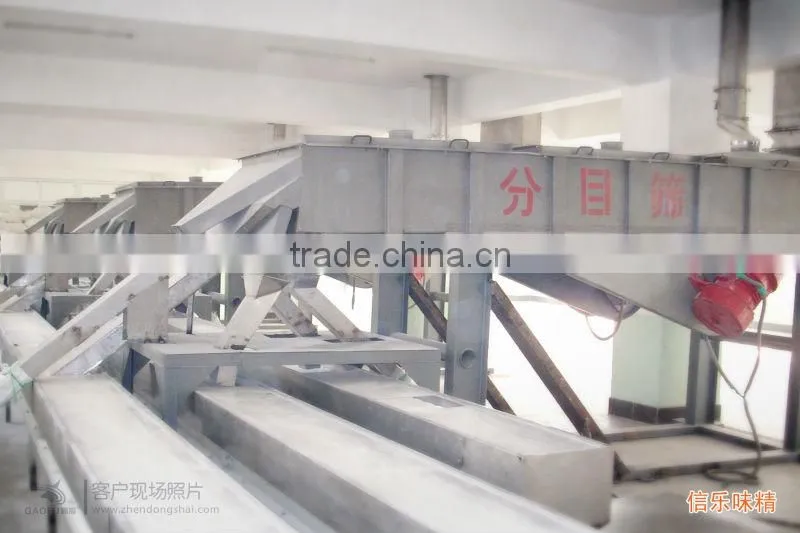

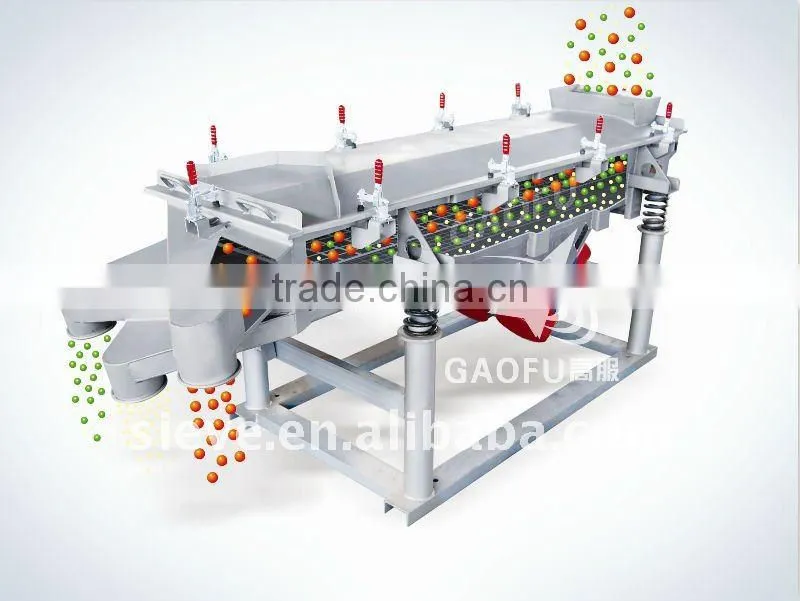

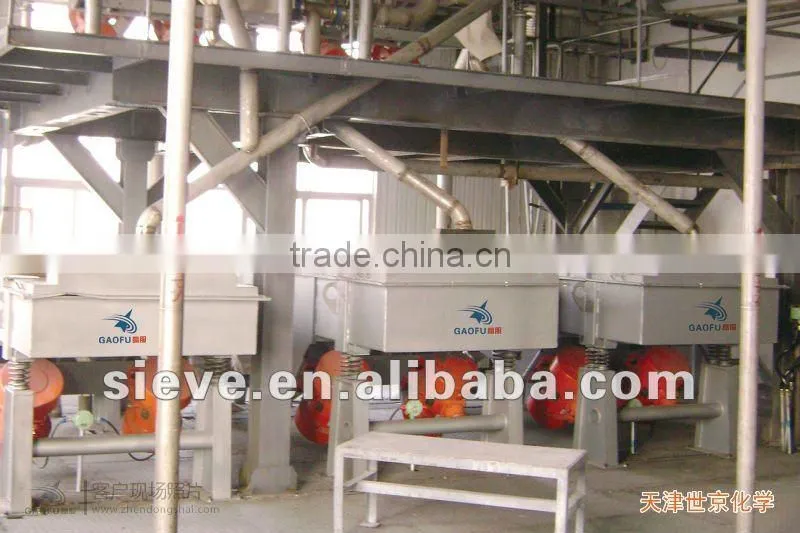

Effect demo figure
SZF Series linear shaking screen are very useful in plastics, rubber, ceramic, food, chemical, fertilizer, glass industries. Vibratory screens can be provided with dust proof cover as required.
SZF Series linear shaking screen can be supplied of different sizes depending upon capacity required. They can also handle slightly wet material.
- Inlets, outlets and legs can be customed fit to your installation requirements.
Technical parameter
Model |
Size(mm) |
Material size(mm) |
Inclination |
Amplitude(mm) |
Layer |
Power(KW) |
SZF-520 |
500×2000 |
0.074-10 |
0-7 degree |
4-10 |
1-6 layer |
2*(0.4-0.75) |
SZF-525 |
500×2500 |
2*(0.4-0.75) |
||||
SZF-1020 |
1000×2000 |
2*(0.4-0.75) |
||||
SZF-1025 |
1000×2500 |
2*(0.4-1.1) |
||||
SZF-1030 |
1000×3000 |
2*(1.1-1.5) |
||||
SZF-1040 |
1000×4000 |
2*(1.1-1.5) |
||||
SZF-1235 |
1000×3500 |
2*(1.1-2.2) |
||||
SZF-1250 |
1200×5000 |
2*(1.1-2.2) |
||||
SZF-1535 |
1500×3500 |
2*(1.1-2.2) |
||||
SZF-1560 |
1500×6000 |
2*(2.2-3.7) |
||||
SZF-1845 |
1800×4500 |
2*(2.2-3.7) |
||||
SZF-2050 |
2000×5000 |
0.074-15 |
2*(2.2-3.7) |
|||
SZF-2260 |
2200×6000 |
2*(2.2-3.7) |
Note:
1. Each type can be 1-5 layers, and the mesh size is from 0.1 to 30mm.
2. Material: Q235A / SUS 304 / 316L
3. Voltage: 380V /400V, Frequency: 50 / 60 HZ.
Our Screen frame has two types: different screen frame structures, help you get more quality screening purpose!

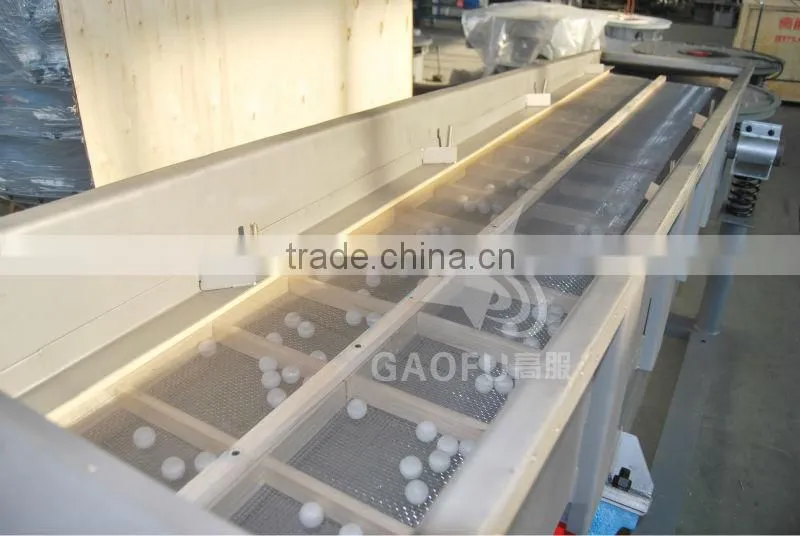

The screen surface:
Delivery by container
CE and ISO Certificate
Top after sales service
Chinese style gifts for you
