High Output Linear Vibrating Screen Equipment for Gravel and Sand Production Line

High Output Linear Vibrating Screen Equipment for Gravel and Sand Production Line thumbnail-1
High Output Linear Vibrating Screen Equipment for Gravel and Sand Production Line photo-1
US$ 7,932 - 15,712 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Linear
Application:
Other, Ore, Gravel and sand
Contact Supplier Request Quote Chat Now
Xinxiang Gaofu Machinery Co., Ltd.
Gold Verified Supplier
5Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin/Shanghai/Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Linear
Application Other, Ore, Gravel and sand
Place of Origin Henan, China
Brand Name Gaofu
Model Number SZF-1235-2S
Voltage 220V.380V.415V or other
Power(W) 2.2kw*2
Dimension(L*W*H) 3800*1450*1600mm
Weight 2.2T
Certification CE/ISO9001:2008/BV/SGS
Warranty 12Months
After-sales Service Provided Engineers available to service machinery overseas

high output Linear vibrating screen equipment

for gravel and sand production line




Product Description



SZF Series high output linear vibrating screen equipment is low consuming, high output, simple structure, easy maintain, no powder dispersed, automobile discharged.



It can be used universally for test screening or to produce between 2 and 4 screen fractions. A good screening effect is achieved by the circular vibration in the vertical plane.





Effect demo figure



SZF Series high output linear vibrating screen equipment are very useful in gravel,sand, plastics, rubber, ceramic, food, chemical, fertilizer, glass industries. linear vibrating screen equipment can be provided with dust proof cover as required.



SZF Series high output linear vibrating screen equipment can be supplied of different sizes depending upon capacity required. They can also handle slightly wet material.



  •  Inlets, outlets and legs can be custom fit to your installation requirements.

Technical parameter



Model

Size(mm)

Material size(mm)

Inclination

Amplitude(mm)

Layer

Power(KW)

SZF-520

500×2000

      0.074-10

0-7 degree

 4-10

 1-6 layer

2*(0.4-0.75)

SZF-525

500×2500

2*(0.4-0.75)

SZF-1020

1000×2000

2*(0.4-0.75)

SZF-1025

1000×2500

2*(0.4-1.1)

SZF-1030

1000×3000

2*(1.1-1.5)

SZF-1040

1000×4000

2*(1.1-1.5)

SZF-1235

1000×3500

2*(1.1-2.2)

SZF-1250

1200×5000

2*(1.1-2.2)

SZF-1535

1500×3500

2*(1.1-2.2)

SZF-1560

1500×6000

2*(2.2-3.7)

SZF-1845

1800×4500

2*(2.2-3.7)

SZF-2050

2000×5000



0.074-15

2*(2.2-3.7)

SZF-2260

2200×6000

2*(2.2-3.7)





Note:



1. Each type can be 1-5 layers, and the mesh size is from 0.1 to 30mm.

2. Material: Q235A / SUS 304 / 316L

3. Voltage: 380V /400V, Frequency: 50 / 60 HZ.



Our Screen frame has two types:  different screen frame structures, help you get more quality screening purpose!





Type 1. Stainless steel screen frame





Type 2. wooden screen frame

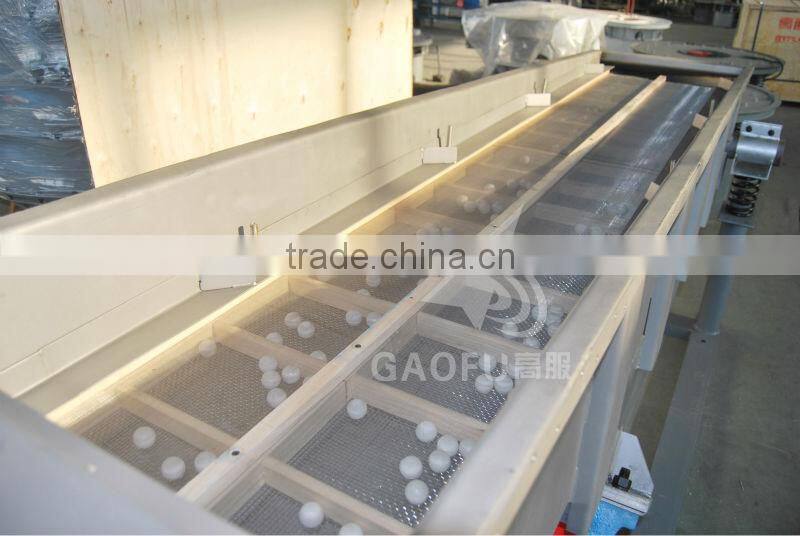

The screen surface:








Packaging & Shipping





Delivery by container





Our company



high output Linear vibrating screen equipment for gravel and sand production line
