Linear Vibrating Grader Machine for Tungsten Carbide

Xinxiang Gaofu Machinery Co., Ltd. Gold Verified Supplier
5Yrs

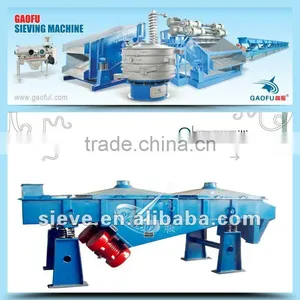

Linear Vibrating Grader Machine for Tungsten Carbide thumbnail-1
Linear Vibrating Grader Machine for Tungsten Carbide photo-1
US$ 2,652 - 6,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New, new
Type:
Linear
Application:
Ore
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin / Shanghai / Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Linear
Application Ore
Place of Origin Henan, China
Brand Name Gaofu
Model Number SZF-1235-2S-Q235A carbon steel
Voltage 220/240/380/400/415/480V
Power(W) 4.4Kw
Dimension(L*W*H) 1450*3800*1600mm
Weight 2200kg
Certification ISO9001:2008
Warranty 12 Months, 15 months
After-sales Service Provided Engineers available to service machinery overseas

                                                         SZF series linear vibrating grader machine



     SZF Series linear vibrating grader machine is low consuming, high output, simple structure, easy,maintain, no powder dispersed, automobile discharged. It can be used universally for test screening or to produce between 2 and 4 screen fractions. A good screening effect is achieved by the circular vibration in the vertical plane.

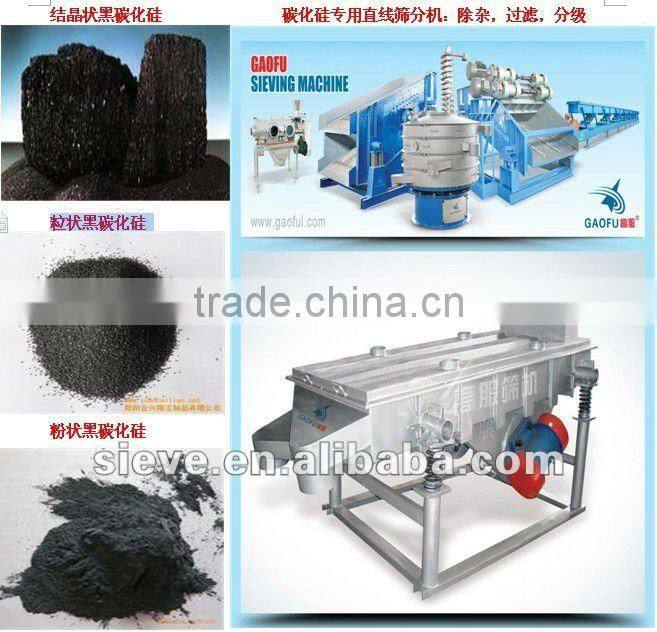

Linear Vibrating Grader Machine for tungsten carbide

Effect demo figure



    SZF Series linear vibrating grader machine are very useful in plastics, rubber, ceramic, food, pharmaceutical, chemical, fertilizer, glass industries. Vibratory screens can be provided with dust proof cover as required.



    SZF Series linear vibrating grader machine can be supplied of different sizes depending upon capacity required. They can also handle slightly wet material.



   Make the order: Inlets, outlets and legs can be custom fit to your installation requirements.





Model

Size(mm)

Material size(mm)

Inclination

Amplitude(mm)

Layer

Power(KW)

SZF-520

500×2000

      0.074-10

0-7 degree

 4-10

 1-6 layer

2*(0.4-0.75)

SZF-525

500×2500

2*(0.4-0.75)

SZF-1020

1000×2000

2*(0.4-0.75)

SZF-1025

1000×2500

2*(0.4-1.1)

SZF-1030

1000×3000

2*(1.1-1.5)

SZF-1040

1000×4000

2*(1.1-1.5)

SZF-1235

1000×3500

2*(1.1-2.2)

SZF-1250

1200×5000

2*(1.1-2.2)

SZF-1535

1500×3500

2*(1.1-2.2)

SZF-1560

1500×6000

2*(2.2-3.7)

SZF-1845

1800×4500

2*(2.2-3.7)

SZF-2050

2000×5000



0.074-15

2*(2.2-3.7)

SZF-2260

2200×6000

2*(2.2-3.7)



Screen frame:

       Different screen frame structure, help you get more quality screening purpose!



1. Stainless steel screen frame

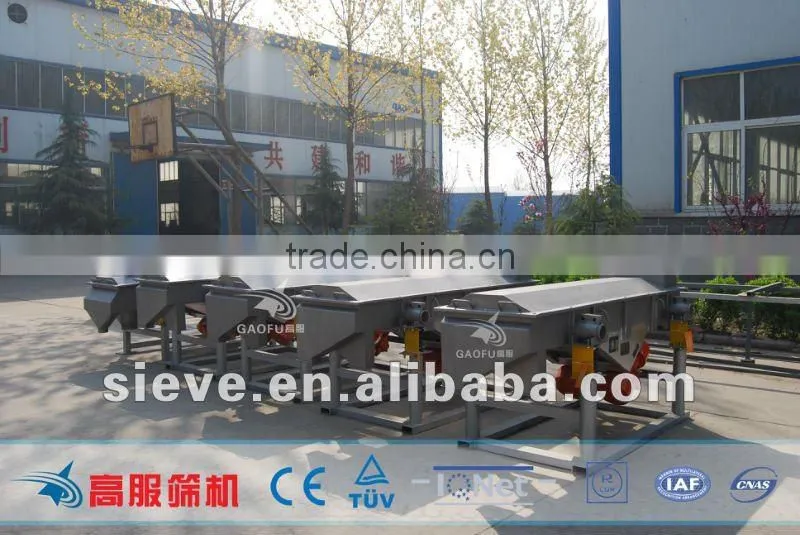

Linear Vibrating Grader Machine for tungsten carbide

2. wooden screen frame



Linear Vibrating Grader Machine for tungsten carbide



3. Vibrating motor

Linear Vibrating Grader Machine for tungsten carbide



Linear Vibrating Grader Machine for tungsten carbide



 Linear Vibrating Grader Machine for tungsten carbide





Note:



    All technical information and size of our products based on the real machine . The    machine can be customized according to different requirements of customers
