Rectangular vibrating screen
SZF series linear vibrating screen has a long history in designing and manufacturing, which can be customized for clients, regardless of width, length, height, materials. Should you be interested in any items, please do not hesitate to contact us !
Features of the linear screen equipment:
1. It can be continuous working, single or multi-layer auto-classification filtering.
2. Good sealing performance, no dust overflow.
3. Low consuming, high output.
4. Having no blockage in the screen, easily to change the screen.
5. It is easy to install,operate and maintain.
6. High utilization rate of screen, large unit area.
7. High-precision screening, large processing capacity.
Operating Principle of the linear screen equipment:
Our series linear vibrating screen is composed of a screen box, screen frame, vibration motor, damping system and mountings and other components. It is the vibration motor as vibration source, so that materials in the screen to be tossed, and at the same time, move forward in a straight line on the screen, then the materials from the feeder are discharged from their respective export separately.
Application of the linear screen equipment:
Linear vibrating screen is suitable to sieving and grading powder or granule, widely used in many industries, such as ceramic, food, pharmaceutical, plastic, grinding, mining, chemical, medicine, building material, and fertilizer industries. Vibratory screens can be provided with dust proof cover as required. Vibrating screen can be supplied of different sizes depending upon capacity required. They can also handle slightly wet material.
Technology parameters
Model |
Size(mm) |
Material size(mm) |
Inclination |
Amplitude(mm) |
Layer |
Power(KW) |
SZF-520 |
500×2000 |
0.074-10 |
0-7 degree |
4-10 |
1-6 layer |
2*(0.4-0.75) |
SZF-525 |
500×2500 |
2*(0.4-0.75) |
||||
SZF-1020 |
1000×2000 |
2*(0.4-0.75) |
||||
SZF-1025 |
1000×2500 |
2*(0.4-1.1) |
||||
SZF-1030 |
1000×3000 |
2*(1.1-1.5) |
||||
SZF-1040 |
1000×4000 |
2*(1.1-1.5) |
||||
SZF-1235 |
1000×3500 |
2*(1.1-2.2) |
||||
SZF-1250 |
1200×5000 |
2*(1.1-2.2) |
||||
SZF-1535 |
1500×3500 |
2*(1.1-2.2) |
||||
SZF-1560 |
1500×6000 |
2*(2.2-3.7) |
||||
SZF-1845 |
1800×4500 |
2*(2.2-3.7) |
||||
SZF-2050 |
2000×5000 |
0.074-15 |
2*(2.2-3.7) |
|||
SZF-2260 |
2200×6000 |
2*(2.2-3.7) |
NOTE:
Transact certificate of origin
Authentication of invoice
Authentication of fumigation

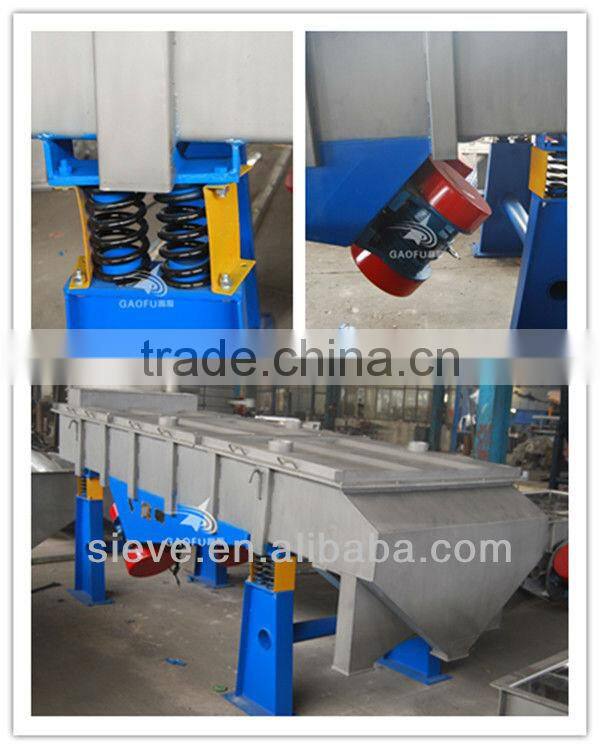

Sieve machine side figure
screen frame 1. Stainless steel screen
2.Wooden screen
spare parts:
1. 5 mm-120 mesh screen

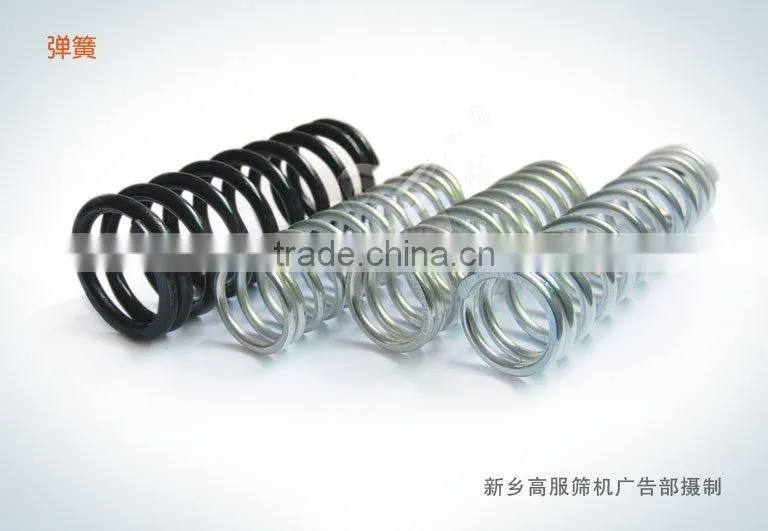

2. Spring
3. Vibrating screen special tools -- buy equipment sent
You also can't find good for manufacturers and worry? Looking for high uniform, we help you out for you to provide the first-class products and high quality service, and become your excellent supplier!
