Specifications
1.Used in chemical,building materials, fertilizer industrial2.Passed ISO 9001:2000
3.Energy saving, High efficiency
Linear Vibrator Mechanical Separator
SZF Linear Vibrator Mechanical Separatoris low consuming, high output, simple structure, easy,maintain, no powder dispersed, automobile discharged. It can be used universally for test screening or to produce between 2 and 4 screen fractions. A good screening effect is achieved by the circular vibration in the vertical plane.
Effect demo figure
SZF Linear Vibrator Mechanical Separators are very useful in plastics, rubber, ceramic, food, pharmaceutical, chemical, fertilizer, glass industries. Vibratory screens can be provided with dust proof cover as required. SZF Series linear vibration screen can be supplied of different sizes depending upon capacity required. They can also handle slightly wet material.
Make the order: Inlets, outlets and legs can be custom fit to your installation requirements.
Model | Size(mm) | Material size(mm) | Inclination | Amplitude(mm) | Layer | Power(KW) |
SZF-520 | 500×2000 | 0.074-10 | 0-7 degree | 4-10 | 1-6 layer | 2*(0.4-0.75) |
SZF-525 | 500×2500 | 2*(0.4-0.75) | ||||
SZF-1020 | 1000×2000 | 2*(0.4-0.75) | ||||
SZF-1025 | 1000×2500 | 2*(0.4-1.1) | ||||
SZF-1030 | 1000×3000 | 2*(1.1-1.5) | ||||
SZF-1040 | 1000×4000 | 2*(1.1-1.5) | ||||
SZF-1235 | 1000×3500 | 2*(1.1-2.2) | ||||
SZF-1250 | 1200×5000 | 2*(1.1-2.2) | ||||
SZF-1535 | 1500×3500 | 2*(1.1-2.2) | ||||
SZF-1560 | 1500×6000 | 2*(2.2-3.7) | ||||
SZF-1845 | 1800×4500 | 2*(2.2-3.7) | ||||
SZF-2050 | 2000×5000 |
0.074-15 | 2*(2.2-3.7) | |||
SZF-2260 | 2200×6000 | 2*(2.2-3.7) |

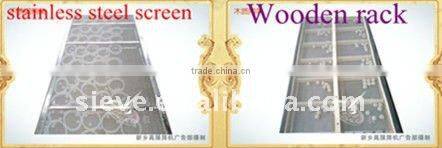

Screen frame:
Different screen frame structure, help you get more quality screening purpose!
1. screen frame

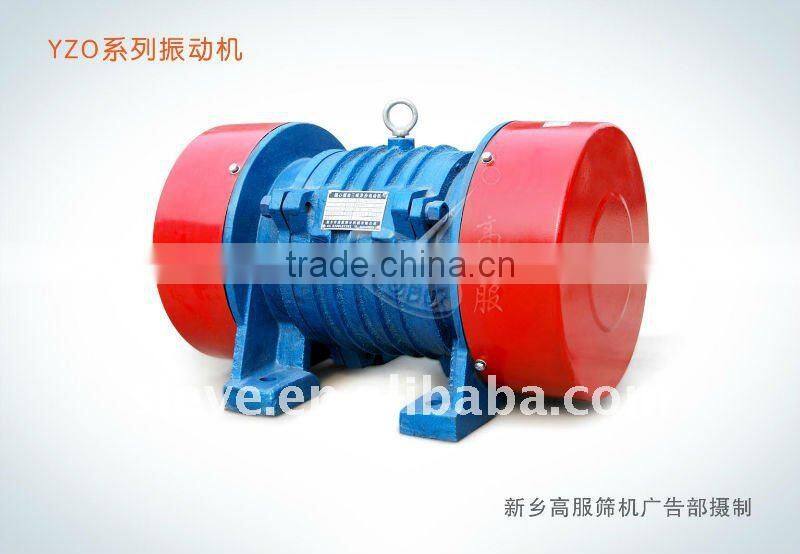

2. Vibrating motor
3.Production corner
