Specifications
1. Used in medicine, sand, chemical industry2. Passed ISO 9001:2008
3. Energy saving, High efficiency

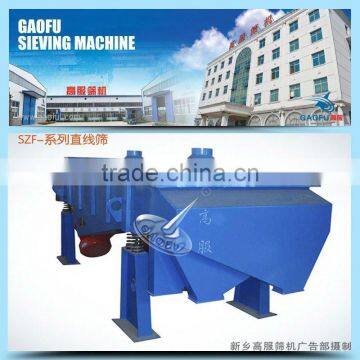

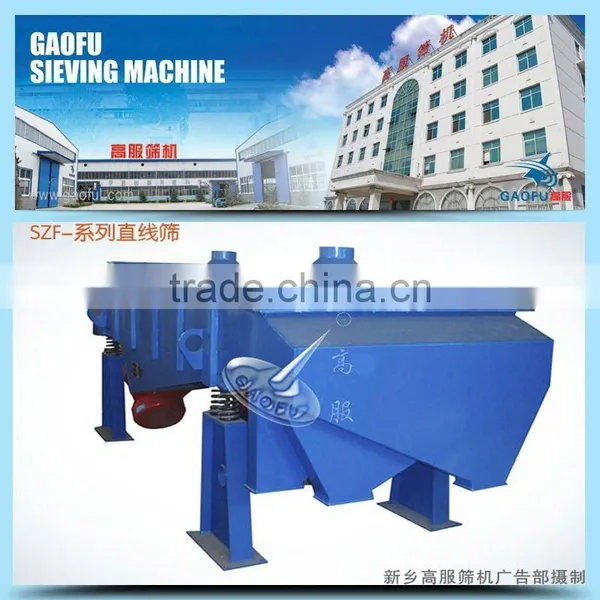

Rectangular sieving machine
Part One: Out-standing Features of Our Screen
Our standard range of linear vibrating screen ranges from 1.25m ×3.0m in width and 2.4m × 9.6m in length and are available in single and multi-deck arrangements.
Bespoke machines are also available to suit specific need. Gaofu linear vibrating screens can be designed to suit you specific application.
Part Two: Applications
The linear vibrating screens are used in many industries, such as, steel making, mining, quarrying, foundries, food processing and chemical industry for the separating of bulk materials like stone aggregates, different kind of sand, active carbon and other materials.
Unlike other systems, the vibrating screen is simple to install and do
Technical Parameters
Model |
Size(mm) |
Inclination |
Amplitude(mm) |
Layer |
Power(KW) |
SZF-520 |
500×2000 |
0-7 degree |
4-10 |
1-6 layer |
2*(0.4-0.75) |
SZF-525 |
500×2500 |
2*(0.4-0.75) |
|||
SZF-1020 |
1000×2000 |
2*(0.4-0.75) |
|||
SZF-1025 |
1000×2500 |
2*(0.4-1.1) |
|||
SZF-1030 |
1000×3000 |
2*(1.1-1.5) |
|||
SZF-1040 |
1000×4000 |
2*(1.1-1.5) |
|||
SZF-1235 |
1200×3500 |
2*(1.1-2.2) |
|||
SZF-1250 |
1200×5000 |
2*(1.1-2.2) |
|||
SZF-1535 |
1500×3500 |
2*(1.1-2.2) |
|||
SZF-1560 |
1500×6000 |
2*(2.2-3.7) |
|||
SZF-1845 |
1800×4500 |
2*(2.2-3.7) |
|||
SZF-2050 |
2000×5000 |
2*(2.2-3.7) |
|||
SZF-2260 |
2200×6000 |
2*(2.2-3.7) |
Advantage
Transact certificate of origin
Authentication of invoice
Authentication of fumigation
Screen frame
