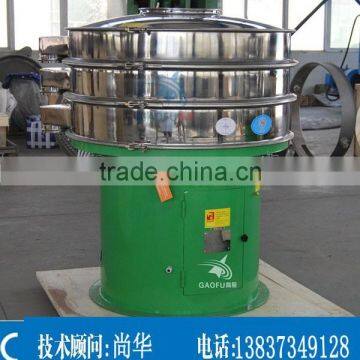

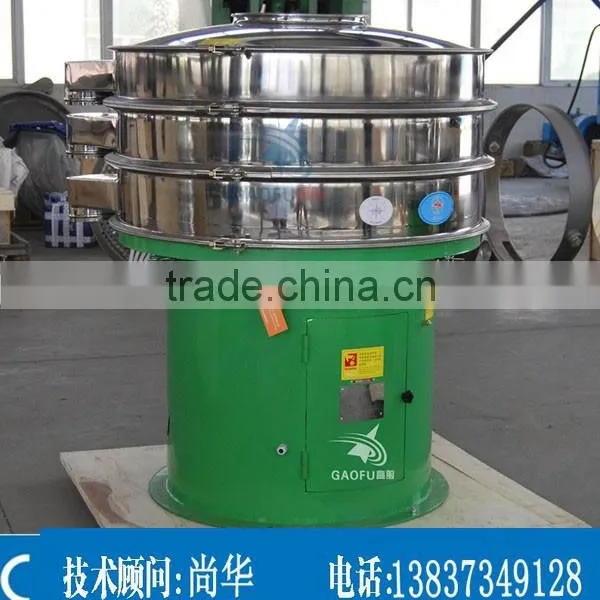

Explosion-Proof Motor vibro sieve machine
---with GMP and CE certificate
Prouction description of vibra sieve machine
1. Model : S49-800-2S
2. Diameter :800mm
3. Overall dimensions :1000*1210*1325mm
4. Material : SUS304 Stainless steel or 316L
5. Layer : two layers
6. Explosion Proof and power : BxdⅡBT4 , ⅡP55 ; 1.5KW
7. Certificate : SGS , BV ,CE , ISO ,GMP and others you need .
Prodction Application of vibra sieve machine
1. Raw medicine---40mesh or 60mesh or 80mesh
Pharmaceutical intermediates rnstarch---230mesh with ultrasonic
Micropill---20 to 80 mesh or 20 to 60 mesh Radix isatidis---5 to 230 mesh
Pellets;harmaceutical Intermediates; bulk drug; ;Bulk Pharmaceutics
2. Screening layers :
Pharmaceutical intermediates usually use one layer ; Bulk drug useally use two layers and Pellets usually use three layers or more ;
3. Screening purpose : grading or impurity and filtering ;
4. Screening capacity :600-1000kg ;
Working principle of vibra sieve machine
1. By changing the eccentric block’s included angle (the upper and down), the motion material moves on the mesh ill be changed. So that the screening target will be realized.
2. By means of a hammer (unbalance hammer) mounted along the motor shaft, S49 Series 3-D rotary shaker machine convert the rotation of the motor into a 3-D movement, i.e. horizontal, vertical and inclined movement, and then the 3-D movement is transferred to the screen surface, which leads to an involute movement of the materials on the screen surface
Feature of vibra sieve machine
♦ Small volume with easy moving
♦ High efficiency with compact structure
♦ Easy operation and maintenance
♦ Long screen life, easy&quick screen cloth exchange
♦ Equipped with anti-blinding device(bouncing balls), as well as dust-proof cover
♦ ISO9001:2008, CE and Food standard certification

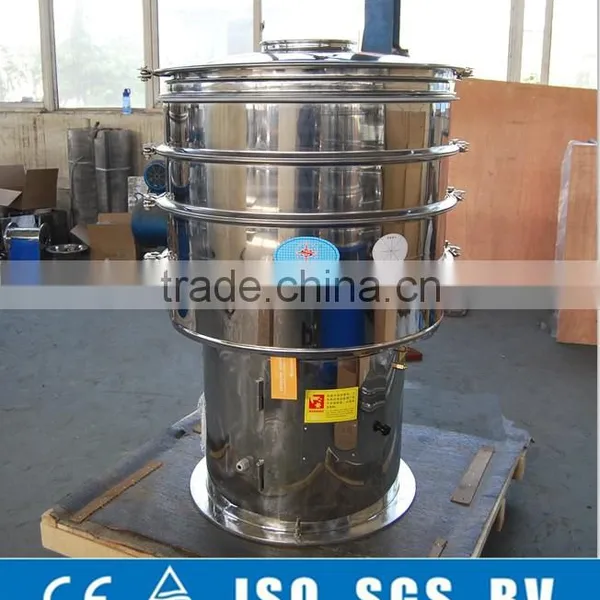

Product details of vibra sieve machine
vibra sieve machine of Scientific research team:
vibra sieve machine of Certification
vibra sieve machineof product packaging
