Ultrasonic Vibrating Sieve Machine for Fine Powder

Ultrasonic Vibrating Sieve Machine for Fine Powder photo-1
US$ 2,250 - 5,550 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Henan, China
Brand Name:
Gaofu
Model Number:
S49-800-1S-SUS304 stainless steel
Payment & Shipping
Payment Methods:
Port of Shipment:
tianjin/shanghai/qingdao
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Henan, China
Brand Name Gaofu
Model Number S49-800-1S-SUS304 stainless steel
Application Powder
Type Other, separator
After-sales Service Provided Engineers available to service machinery overseas

GMP standard round vibrating sieve

Top quality vibration sieve machine to meet different industries’ special requirements, such like chemical, food, pharmaceutical etc .

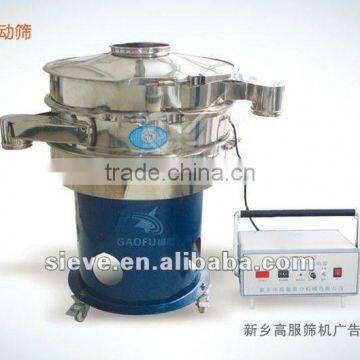

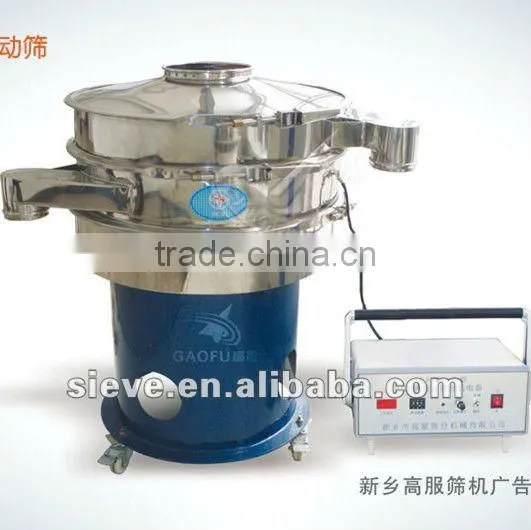

           Ultrasonic Vibrating Sieve Machine for fine Powder







Description







S49-AC series ultrasonic vibrating sieve suitable to sieve power, which is light density, low humidity, easy adhesion or a static of the powder and super fine powder, and improve the sieving efficiency. It is widely used in carbonize silicon, alloy powder, tungsten powder, aluminum powder, rubbing powder etc. it can completely solve the difficult technology problems that other screening machines cannot solve.







The vibrating sieve applies an ultrasonic vibration directly to the screening mesh. The vibrating sieve action injects a secondary high frequency, low amplitude vibration to improve mesh delinking and screener performance.







Ultrasonic vibration sieve efficient control unit in 110 or 220 volts.Touch panel controls enable many of the settings to be easily adjusted by the operator — allowing for optimal performance. The ultrasonic vibrating sieve action greatly increases mesh life, since there is no harsh abrasive action to impair tension and cause wear.







Type

S49-600

S49-800

S49-1000

S49-1200

Efficient diameter screen(mm)

Φ540

Φ730

Φ900

Φ1000

Efficient area screen(mm)

0.2289

0.4183

0.6359

0.9499

Screen size

100-500 mesh

Layer

1-2 layers

Power(KW)

Vibration motor

0.25

0.55

0.75

1.1

Common motor

0.75

1.1

1.5

1.5







                    Ultrasonic Vibrating Sieve Machine for fine Powder







Motor



                                                    Ultrasonic Vibrating Sieve Machine for fine Powder

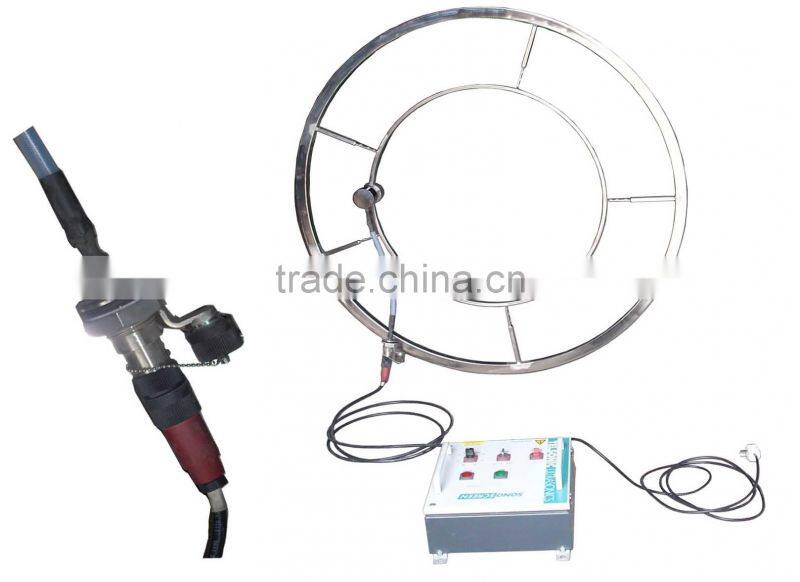

Ultrasonic Device







Clean Device



Ultrasonic Vibrating Sieve Machine for fine Powder



Detailes of Input

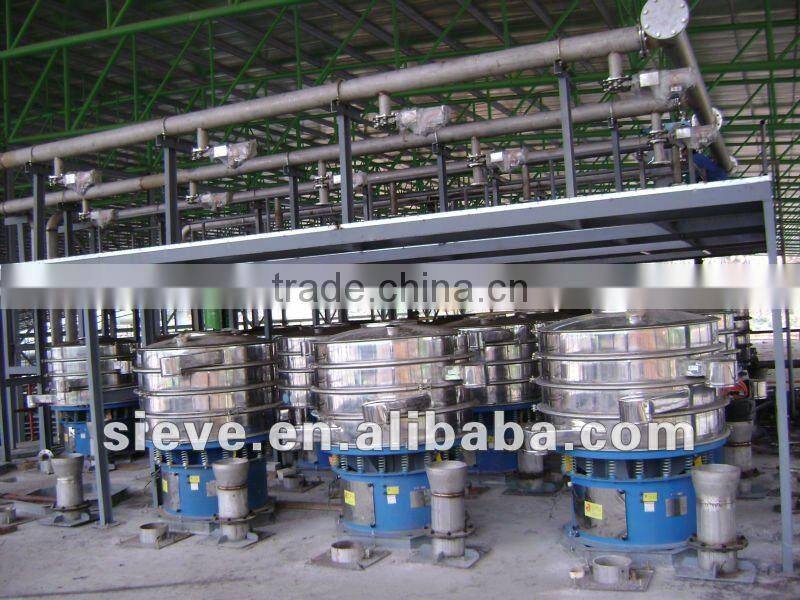

Customer's Scene



Ultrasonic Vibrating Sieve Machine for fine Powder



Our Exhibition Hall

Ultrasonic Vibrating Sieve Machine for fine Powder



Don't hesitate to contact with me, Gaofu Sieving machine has good quality and best after-sale service, waiting for your witness!
