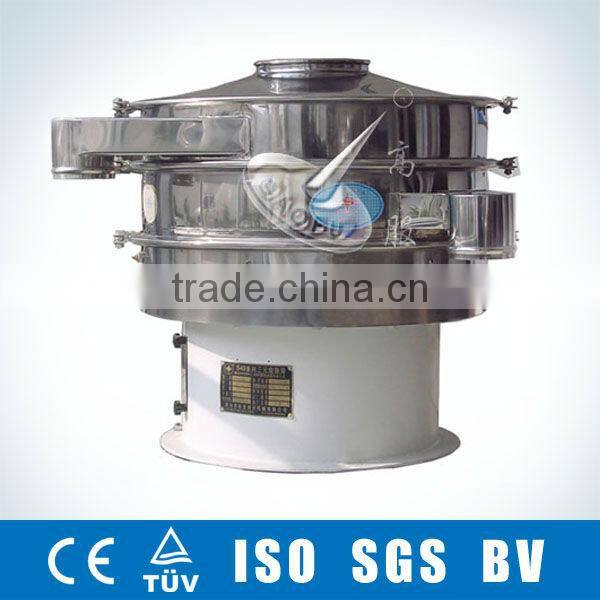

China Hot Sale Rotary Vibratory Separators Manufacturer
Introduction
Gaofu S49-A series rotary vibrating screen is one kind of high appreciated sieving machine for cigarettes factory .it is designed for accurate screening of wet and dry raw materials. It can up to five different fractions in one-time screening process.

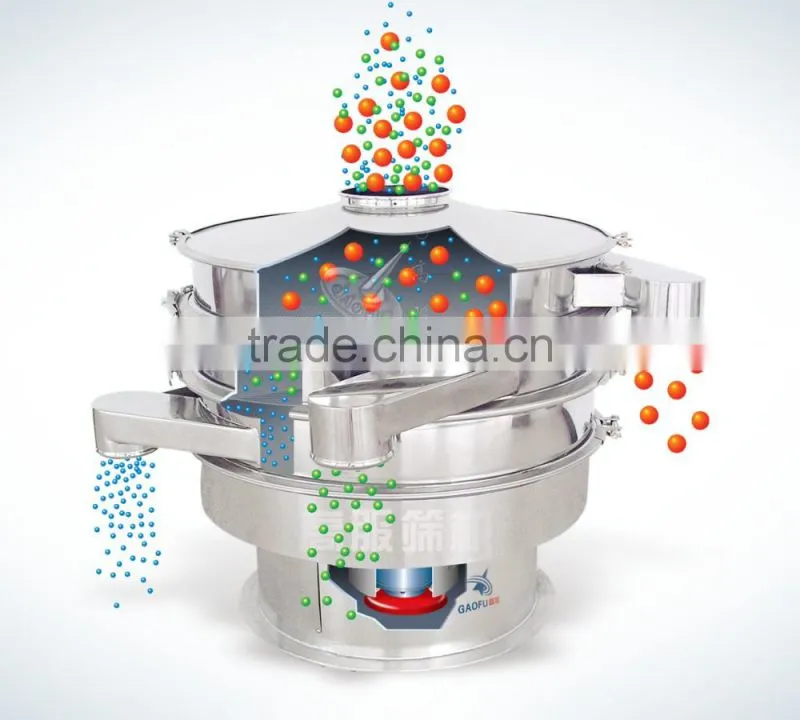

Principle of the structure
S49-A series rotary vibrating screen use upright motor as the source of vibration, These consist of specially designed motor which is mounted vertically at the center of the base plate of the screen.Equipped eccentricity hammer on the both sides of motor,change circumrotate to level, upright and incline movement, then pass these three movement to the surface of the screen. Adjust the phasic angle on the both sides of the top and bottom to change the movement orbits of the surface screen.
Features
a. Any powders and mucilage are suitable for screening;
b. Easily to replace the screen, only 3-5 mins to replace the screen;
c. Never jam the hole meshwork, no powder flying;
d. Discharge the impurity and coarse materials automobile and operates continuously;
e. Unique- designed screen flame type, simple operation and convenience washing, long duration of screen;
f. Low noise;
g. High screening accuracy.
Using for different materials
Our vibrating screens can handle wide range of materials in ,such as dry or wet & coarse or fine.
Product details
More Vibrating Screens Technical parameters
Model |
Effective diameter (mm) |
Effective sieving area(m 2 ) |
Mesh size |
Layer |
Powder(KW) |
|
|
Vibrating motor |
Common motor |
|||||
S49-400 |
Φ340 |
0.0907 |
5-500 |
1-5 |
0.18 |
-- |
S49-600 |
Φ540 |
0.2289 |
5-500 |
1-5 |
0.25 |
0.75 |
S49-800 |
Φ730 |
0.4183 |
5-500 |
1-5 |
0.55 |
1.1 |
S49-1000 |
Φ900 |
0.6359 |
5-500 |
1-5 |
1.1 |
1.5 |
S49-1200 |
Φ1100 |
0.9490 |
5-500 |
1-5 |
1.1 |
1.5 |
S49-1500 |
Φ1400 |
1.5386 |
5-500 |
1-5 |
1.5 |
2.2 |
S49-1800 |
Φ1700 |
22687 |
5-500 |
1-5 |
4 |
3.0 |
S49-2000 |
Φ1886 |
2.7922 |
5-500 |
1-5 |
4 |
3.0 |
Note:
.If the specification or appearance has changed, we will not notify additionally.
Exhibition hall corner

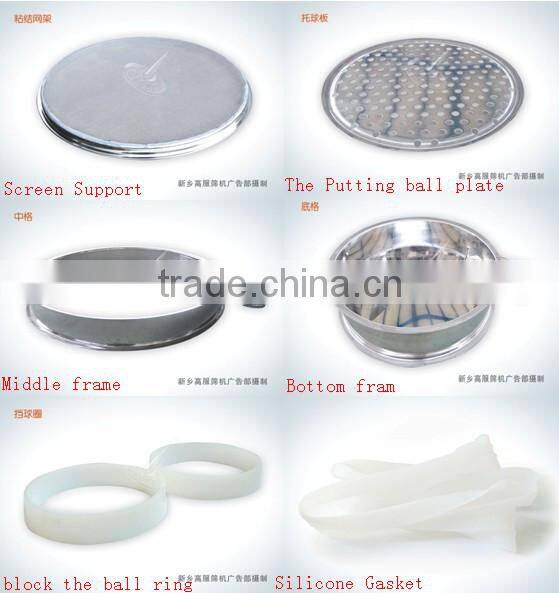

all kinds of parts

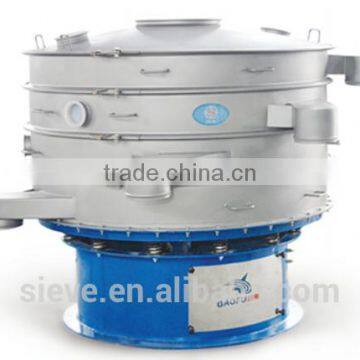

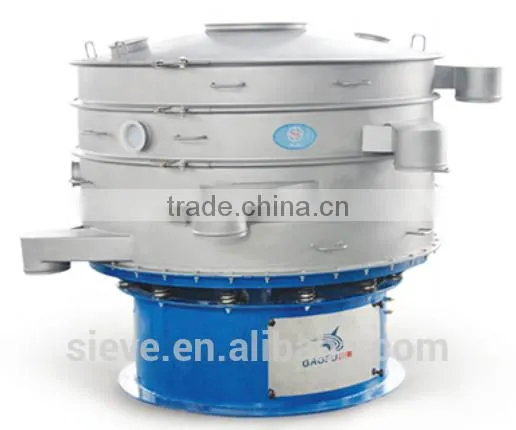

types of vibrating sieve machine
Company Certificate
Packing and Shipping
Our Factory
CE and ISO Certificate
Top after sales service
Our operation principle is mutual reciprocity and mutual benefit , Intimate service !
If you have any questions , please feel free to contact with us .
