Home > Products > Fine Sieving Equipment > food grade rotary vibration screen for sale
food grade rotary vibration screen for sale
- 100000 Set / Sets per Month
- Tianjin / Shanghai / Qingdao
- T/T L/C D/P D/A Credit Card PayPal
- China Top Durable High Quality Circular Vibrator Sieve Screen
- Food Grade Stainless Steel Vibrating Sieve Screen Machine
- high screening efficiency stainless steel vibration screen sifter
- rotary sifting machine for fine powder separator
- food grade vibrator screen sieve for screening or grading
- S49-A stainless steel round rotary screener
Product Details
Condition: | New | Type: | Circular | Application: | Food Processing |
Place of Origin: | Henan, China | Brand Name: | Gaofu | Model Number: | S49-1000-3S-304 |
Voltage: | 220V/380V/415V/450V | Power(W): | 1.1kw | Dimension(L*W*H): | 1000*1150*1100mm |
Weight: | 600kg | Certification: | CE ISO | Warranty: | 12 Months |
After-sales Service Provided: | Engineers available to service machinery overseas |
Packaging Details
Non-fumigation wooden box
Product Description

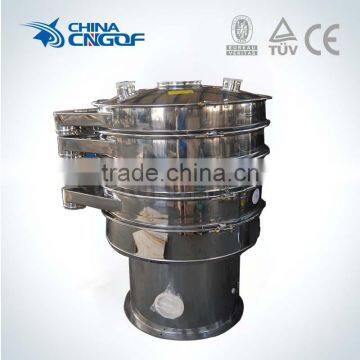

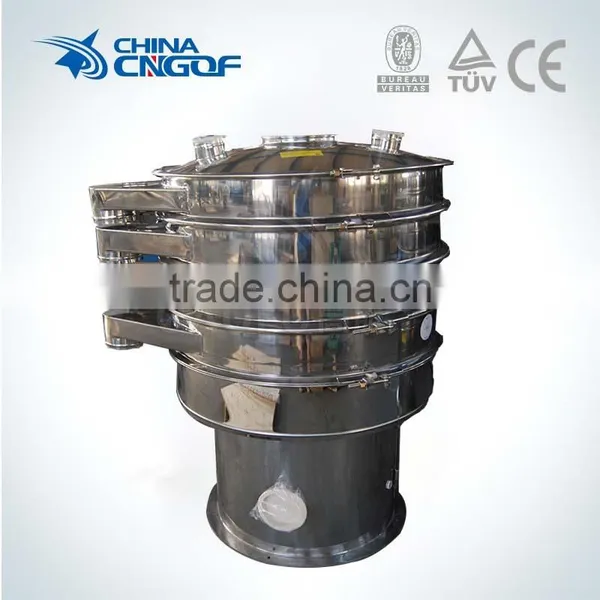

food grade rotary vibration screen for sale
--sepacial-desinged sieving machine for FOOD raw material powder.
[Introduction]
Gaofu S49-A series rotary vibration screen is one kind of high appreciated sieving machine for FOOD industry, it is designed for accurate screening of wet and dry raw materials. It can up to five different fractions in one-time screening process.
[Principle of the structure]
S49-A series rotary vibration screen use upright motor as the source of vibration, These consist of specially designed motor which is mounted vertically at the center of the base plate of the screen.Equipped eccentricity hammer on the both sides of motor,change circumrotate to level, upright and incline movement, then pass these three movement to the surface of the screen. Adjust the phasic angle on the both sides of the top and bottom to change the movement orbits of the surface screen.
[Features]
a. Any powders and mucilage are suitable for screening;
b. Easily to replace the screen, only 3-5 mins to replace the screen;
c. Never jam the hole meshwork, no powder flying;
d. Discharge the impurity and coarse materials automobile and operates continuously;
e. Unique- designed screen flame type, simple operation and convenience washing, long
duration of screen;
f. Low noise;
g. High screening accuracy.
[Spare parts list]
More Vibrating Screens Technical parameters
Note:
1. Each type can be 1-5 layers (But 3 lagers are suggested), and the mesh is from 5 to 500 meshes;
2. Material: Q235A / SUS 304 / 316L;
3. Voltage: 220 / 380V /415V / 440V, Frequency: 50 / 60 HZ;
4. If the specification or appearance has changed, we will not notify additionally
Spin vibration sieve three functions: classification, filtering, impurity
CE and ISO Certificate
Top after sales service
Company Profile
Xinxiang Gaofu Sieving Machinery Co., Ltd. specializes in manufacturing vibration screens and vibrating sieves. To solve sieving problems in all fields, we can manufacture all kinds of vibrating screens to meet the different needs of customers.
Thanks to production equipment, strong technical capabilities, improved detection means and strict managing system, we have enjoyed good reputation.
our company has attained ISO9001:2000 certification and CE Certification. Our products sell well throughout China and are exported to North America, West Europe, Southeast Asia and other countries and regions.
Do you want to improve your product quality? Do you want your products to become more competitive? Choosing Xinxiang Gaofu Sieving Machine Co., Ltd.! We will be your friend in the way to success! And you will create a shiny future in 2014!
Please visit our website: www.gaoful.com.
Our tenet: "Honest Service, the Highest Quality".To solve sieving problems in all fields, we can manufacture all kinds of vibrating screens to meet the different needs of customers.
