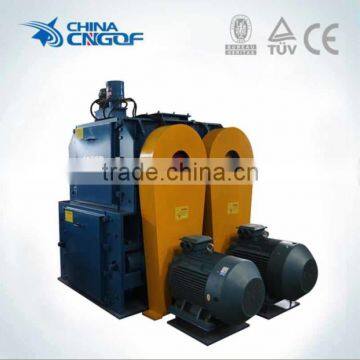

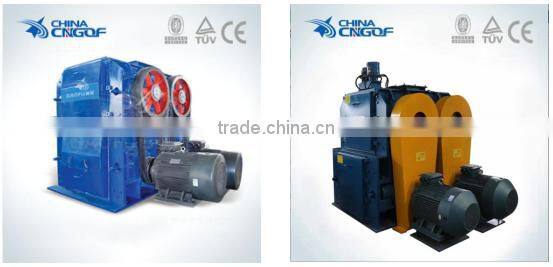

GF series four teeth crusher machine with hydraulic concession device
1.Product overview
GF series four teeth crusher machine with hydraulic concession device is a new type crusher which developed by Gao Fu engineers after a lot of market research and technical innovation, Which mainly used to crush medium and low hardness brittlematerials, for example coal, soft coal, coal gangue, lignite, sinter, shale, coke limestone and etc.
2.Working principle
GF series four teeth crusher machine with hydraulic concession device composed by rollers which rotate toward each other , material directly falls into for the size in accordance with two teeth roll gap, exceed the gap’s material are crushed by rollers of splitting, breaking, and striking then falls to meet the granularity’s requirement. Relative roller differential operation can clear up the slot residual materials, all of this avoidance the material’s repeated crushing, without gluing and plugging
3.GF series four teeth crusher machine with hydraulic concession device data:
4.Product details:
5.Product with high reliablity and security intelligence
GF series four teeth crusher machine with hydraulic concession device adopts double protection of electrical and mechanical, electrical control cabinet is equipped with PLC programmable controller with chain safeguard function, which can realize local control and central control room manual / automatic control, so which is the ideal crusher for heating and power supply.
6.GF series four teeth crusher machine with hydraulic concession device's features:
High yield and no gluing plugging.
Small repeated crushing and uniform grain size
Low investment cost
Simple structure and convenience maintenance
Environmental protection and energy saving
Provided material uniformly and long service life
Modularization & Fast dismounting structure
7.Production process
8.Delivery and shipping
1>.What is your products material?
Our product’s frame with Q235A material, teeth plate with high wear resistant alloy steel.
2>.How long the teeth plate’s replacement cycle? How long does it will be take to change one piece of teeth plate?
Teeth plate’s replacement cycle decided by the crushing material, normally one year. It’s will be take 4-5 minutes to change one piece of teeth plate.
3>.How about your products’ security performance?
Our product with four protective measures to ensure machine’s running when unbroken objects came in crushing cavity suddenly. More details, please feel free to contact us.
4>.Products warranty?
The products warranty is one year.
Thanks a lot for your interesting, we are looking forward your inquiry!
