Zircon Sand Testing Machine

Zircon sand testing machine

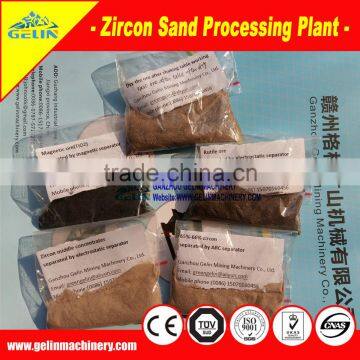

Mixed beach placer is variety of mixed ore minerals, it should separate mineral step by step though the gravity separation, wet magnetic separation, dry magnetic separation, electric separation. Then we will get ilmenite, monazite, Tin sand, rutile and zircon sand, Iron ore and other finished products, that all have a very high economic value.
Mixed beach placer rough separator benefication process were made up two systems, one is Screen sysytem, the other is Separator system, with the details as below.

Screening
This equipment is one of the unique product or equipment. It is used for separating the stuff. Rotary screen works on circular motion. Rotary screen are efficient screening machines for the classification of bulk material such as coal, minerals, coke etc. Rotary screen are mainly used in coal dressing, metallurgy, mine, power station, water conservancy project, building industry, light industry and chemical industry etc.

Spiral Separator
This equipment is one of the gravity concentrators, which separate minerals of different specific gravity according to their relative movement in response to gravity, centrifugal force and other forces in the fluid medium. It has extremely good performance and effects in processing placer of beach, riverside, seashore and stream. Desen spirals separator are made of polyurethane lined fiber glass with wearable corundum inner surface. Generally there are 5 turns in one start, single, twin, triple and quad starts available per column to suit capacity requirements.

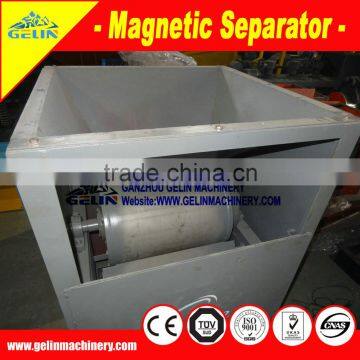

Wet permanent magnetic separator
This product is designed for multi ≤15mm fine grain size of manganese ore wet separation. It widely used in carbonate manganese and oxide manganese separation and limonite etc weak magnetic minerals in the field of magnetic separation.

Three roller magnetic separator
This product is designed for multi ≤15mm fine grain size of manganese ore wet separation. It widely used in carbonate manganese and oxide manganese separation and limonite etc weak magnetic minerals in the field of magnetic separation.

Gold Shaker Table, Table Concentrator
GELIN Shaker Table is one of the main equipments of gravity concentration. It is not only widely applied on separating tungsten, the tin, the tantalum niobium and other rare metals and the noble metal ore.
The Shaker Table is also widely used in separation for Gold, Silver, Tin, Columbium, Tantalum, Titanium, Barium, Tungsten, Iron, Chrome, Manganese, Zircon, Lead, Zinc, Mercury, Copper, Aluminum, etc. The shaker effective recycling granularity scope is 2-0.22 millimeters.

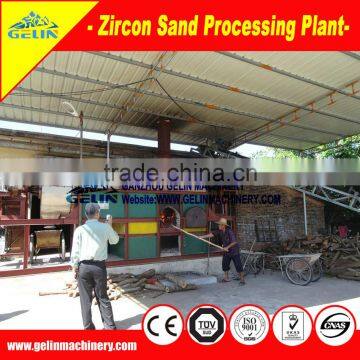

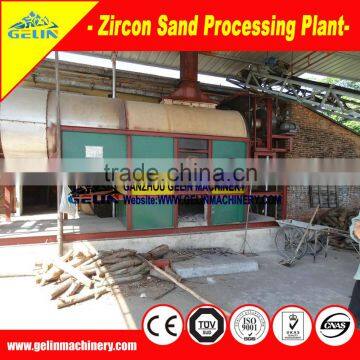

Dryer machine

ARC Pate separator & Lift
This machine performs separation under the electric intensity and gravity force based on the difference of minerals in their conductivity and the variation of electrostatic force applied on these minerals when they pass through the electric field.
It is suitable to separation of conductive mineral and non conductive mineral, thus to obtain high-grade conductive concentrates and non-conductive concentrates, rutile ore and zircon ore. It may be used in combination with single disc separator, double disc separator , permanent magnetic separator. This machine is equipped with 0-45000v high-voltage generator, so that it can also be used for separating the high phosphorus ore or rutile ore that is difficult to separate.

Ganzhou Gelin Mining Machinery Co., Ltd is an expert manufacturer of mining machines in China. Our company is located in Guzhang Industrial Zone, Shicheng county, Jiangxi province, covering an area of over 30000 square meters, having more than 30 sets of heavy processing equipment and with an annual outpurt of more than 2000 sets of mining machinery.

Welcome you visit our factory in your free time!
