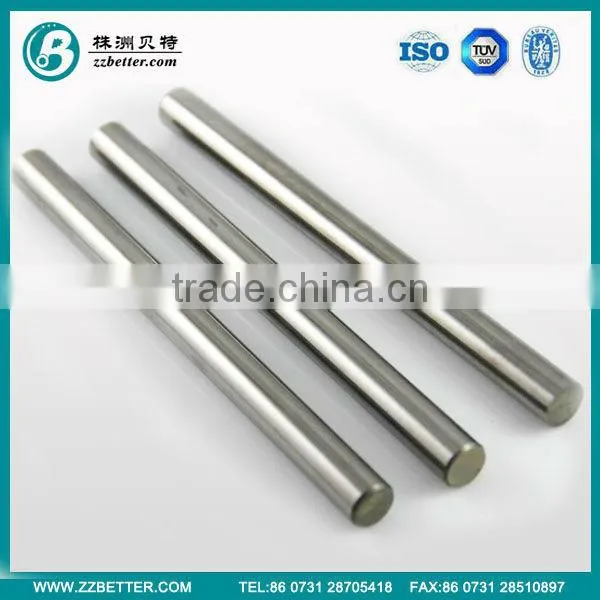

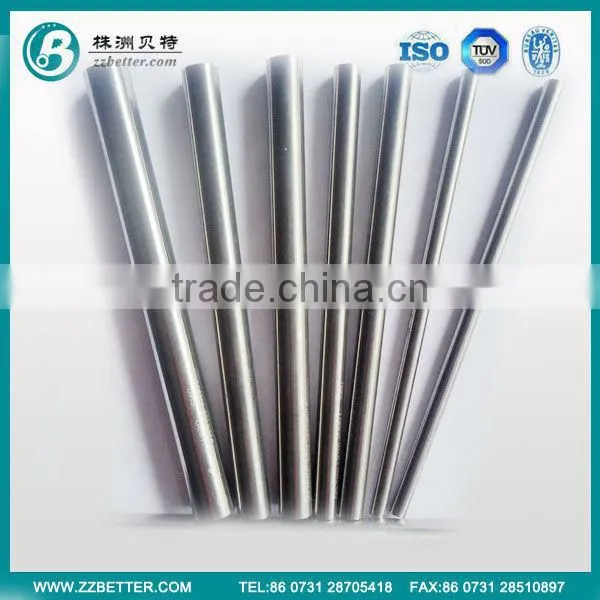

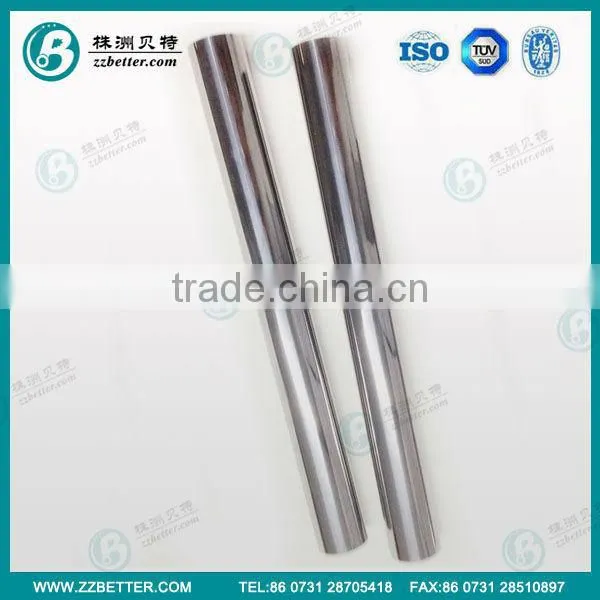

Tantalum Sintered Bar for Ingot Blanks

Name: Tantalum Sintered Bar for Ingot Blanks
Brand: ZZBETTER
SKU: 141622784
Availability: InStock

US$ 500 - 600 MOQ: 1 Kilogram

Key Specifications

Place of Origin:

Hunan, China

Brand Name:

ZZBETTER

Model Number:

Full

Zhuzhou Better Tungsten Carbide Co., Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

all mainland ports

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Hunan, China

Brand Name ZZBETTER

Model Number Full

Specifications

Tantalum sintered bar for ingot blanks
1.High quality
2.Vergin material
3.ISO9001:2008
4.Fastdelivery

Tantalum sintered bar for ingot blanks

Chemical composition of tantalum sintered bar

Chemical composition
Chemical composition
	Chemical composition,max
Grade	Fe	Si	Ni	W	Mo	Ti	Nb	O	C	H	N	Ta
Ta1	0.005	0.005	0.005	0.005	0.002	0.002	0.005	0.02	0.004	0.002	0.005	balance
Ta2	0.005	0.005	0.005	0.005	0.002	0.002	0.1	0.03	0.01	0.002	0.01	balance
FTa1	0.005	0.005	0.005	0.005	0.002	0.002	0.005	0.02	0.003	0.002	0.005	balance
FTa2	0.01	0.03	0.01	0.005	0.002	0.002	0.1	0.035	0.003	0.002	0.01	balance
Remark	Ta1 and Ta2 are made of ingot blanks,FTa1 and FTa2 are made of vertical melted bars

Grade, contents and applications

Grade of tantalum plate
Grade		TTa-01	TTa-02	TTa-1	TTa-2
Impurity Content,%,max	O	0.02	0.03	0.15	0.15
	C	0.005	0.006	0.015	0.02
	N	0.003	0.01	0.008	0.01
	Fe	0.005	0.01	0.005	0.01
	Ni	0.005	0.01	0.01	0.01
	Cr	0.005	--	0.005	0.01
	Nb	0.005	0.1	0.01	0.02
	W	0.002	0.05	0.003	0.005
	Mo	0.001	0.02	0.003	0.005
	Si	0.002	0.025	0.003	0.015
Size (mm)		diameter(20-26)×(500-600)		(12-17)×(12-17)×(100-400)
Density(g/cm3)		equal or higher than 15.2		--
Application		For materials to processsed	For superalloys and electron-beam melting
Application		For materials to processsed	For superalloys and electron-beam melting
