YG6X Tungsten Carbide Sealing Ring of Mechanical Sleeve and Seal
US$ 5 - 100
MOQ: 1 Piece
Key Specifications
Get Latest Price
Standard or Nonstandard:
Standard
Style:
O Ring
Material:
Other, tungsten carbide
Payment & Shipping
Payment Methods:
Port of Shipment:
any port in china
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Tungsten Carbide Sealing Rings With Complicated ShapeUS$ 5 - 100MOQ: 1 Piece -
Carbide Mechanical Seal RingUS$ 5 - 100MOQ: 1 Piece
-
Tungsten Carbide Seal RingUS$ 5 - 100MOQ: 1 Piece
-
Cemented Carbide Seal Rings for SaleUS$ 3.5 - 3.5MOQ: 1 Piece
-
Tungsten Carbide Roll Ring for Rolling MillUS$ 10 - 100MOQ: 1 Piece
Standard or Nonstandard
Standard
Style
O Ring
Material
Other, tungsten carbide
Place of Origin
Hunan, China
Brand Name
zzbetter
Model Number
various
Specifications
1. carbide seal ring2.high wear resistance
3.high abrasion resistance
rrosion resistance
5.ISO9001
YG6X tungsten carbide sealing ring of mechanical sleeve and seal
1,Description
Tungsten Carbide seal Ring | Circulars have the characters of high wear resistance, high corrosion resistance and good compressive properties.It's widely used in petrochemical industries and other industries which call for high properties of the mechanical sealing rings or prats.
Good quality, advanced process, stable mechanical properties
high abrasion resistance and corrosion resistance.
Various sealing rings with complicated shape, either blanks or finished products can be provided.
2,Grade
Our material covers: WC-Co alloy, WC-Ni alloy, WC-Ni/Co alloy, WC-TiC-Ni/Cr alloy etc.
| Grade |
Binder (Wt%) |
Density (g/cm3) | Hardness (HRA) | TRS (≥N/mm²) |
| YG6 | 6 | 14.8 | 90.0 | 1520 |
| YG6X | 6 | 14.9 | 91.0 | 1450 |
| YG6A | 6 | 14.9 | 92.0 | 1540 |
| YG8 | 8 | 14.7 | 89.5 | 1750 |
| YG12 | 12 | 14.2 | 88.0 | 1810 |
| YG15 | 15 | 14.0 | 87.0 | 2050 |
| YG20 | 20 | 13.5 | 85.5 | 2450 |
| YG25 | 25 | 12.1 | 84.0 | 2550 |
Nickel Binder Grades
| Grade |
Binder (Wt%) |
Density (g/cm3) | Hardness (HRA) | TRS (≥N/mm²) |
| YN6 | 6 | 14.7 | 89.5 | 1460 |
| YN6X | 6 | 14.8 | 90.5 | 1400 |
| YN6A | 6 | 14.8 | 91.0 | 1480 |
| YN8 | 8 | 14.6 | 88.5 | 1710 |

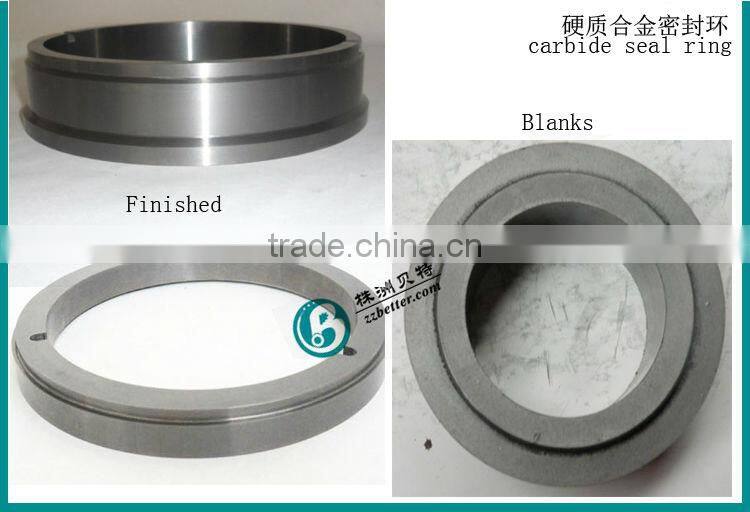

3,Drawings of carbide seal ring
