Home > Industrial Equipment & Components > Sealing & Gaskets > Oil Seal > Tungsten Carbide Seal Ring
Tungsten Carbide Seal Ring
US$ 5 - 100
MOQ: 1 Piece
Key Specifications
Get Latest Price
Standard or Nonstandard:
Nonstandard
Style:
O Ring
Material:
Other, tungsten carbide
Payment & Shipping
Payment Methods:
Port of Shipment:
any port in china
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Cemented Carbide Seal Rings for SaleUS$ 3.5 - 3.5MOQ: 1 Piece -
Tungsten Carbide Roll Ring for Rolling MillUS$ 10 - 100MOQ: 1 Piece
-
Zhuzhou Smooth Coating Durable Cemented Carbide RollsUS$ 10 - 100MOQ: 1 Piece
-
Tungsten Carbide Rolls the Three Dimensional Carbide Rolls for Cold Rolling Ribbed-screw Thread Steel ReinforeementsUS$ 10 - 100MOQ: 1 Piece
-
Carbide Steel Milling RollerUS$ 206.8 - 241.94MOQ: 1 Piece
Standard or Nonstandard
Nonstandard
Style
O Ring
Material
Other, tungsten carbide
Place of Origin
Hunan, China
Brand Name
zzbetter
Model Number
various
Specifications
1.tungsten carbide seal ring2.high wear resistance
chanical sealing ring
4.material is TC6%Ni
5.ISO9001
tungsten carbide seal ring
1,Description
Tungsten Carbide Rings | Circulars have the characters of high wear resistance, high corrosion resistance and good compressive properties.It's widely used in petrochemical industries and other industries which call for high properties of the mechanical sealing rings or prats.
Good quality, advanced process, stable mechanical properties
high abrasion resistance and corrosion resistance.
Various sealing rings with complicated shape, either blanks or finished products can be provided.
2,Grade
Our material covers: WC-Co alloy, WC-Ni alloy, WC-Ni/Co alloy, WC-TiC-Ni/Cr alloy etc.
| Grade | Binder (Wt%) | Density (g/cm3) | Hardness (HRA) | TRS (≥N/mm²) |
| YG6 | 6 | 14.8 | 90.0 | 1520 |
| YG6X | 6 | 14.9 | 91.0 | 1450 |
| YG6A | 6 | 14.9 | 92.0 | 1540 |
| YG8 | 8 | 14.7 | 89.5 | 1750 |
| YG12 | 12 | 14.2 | 88.0 | 1810 |
| YG15 | 15 | 14.0 | 87.0 | 2050 |
| YG20 | 20 | 13.5 | 85.5 | 2450 |
| YG25 | 25 | 12.1 | 84.0 | 2550 |
Nickel Binder Grades
| Grade | Binder (Wt%) | Density (g/cm3) | Hardness (HRA) | TRS (≥N/mm²) |
| YN6 | 6 | 14.7 | 89.5 | 1460 |
| YN6X | 6 | 14.8 | 90.5 | 1400 |
| YN6A | 6 | 14.8 | 91.0 | 1480 |
| YN8 | 8 | 14.6 | 88.5 | 1710 |

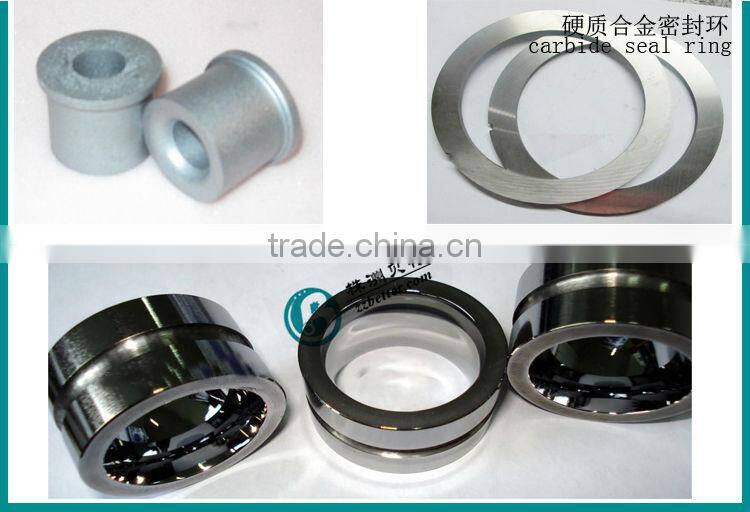

3,Drawings of tungsten carbide seal ring
