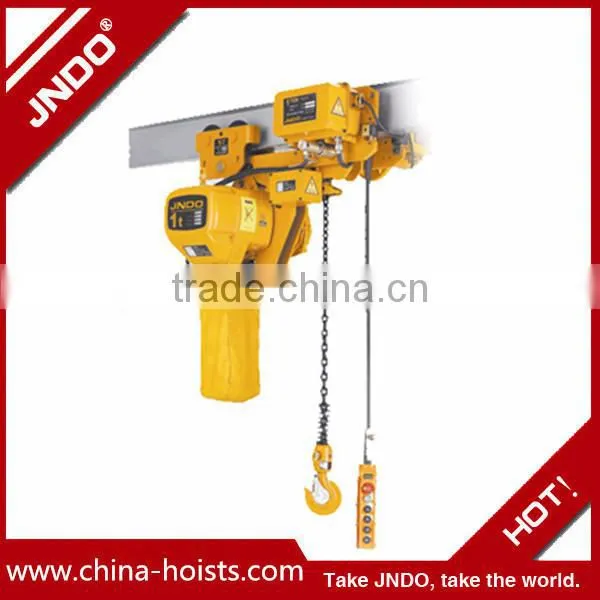

10T Super-Low Headroom Electric Chain Hoist
Description of Low headroom electric chain hoist
The super-low headroom electric chain hoist is uniquely designed to have a shorter headroon than that of standrard of k model configurations. This proudct is the most suitable for installation which requires a low ceiling of building or maximizes effective lift, especially suitalbe for use in temporarily erected plant buildings or on the sites where expansion of effective hoisting spaces inside the buildings is required. The trolleys are availalbe as option.
Advantages of low headroom electric chain hoist
1.Compact and high efficient motor: DC brake system without asbestos, low power
consumption
2.Light weight ,light wheel pressure. It raises the Safety coefficient of girder
3. Most tensile safety hooks: both the top and bottom hooks are made of high tensile
alloy steel with special treatment; it guarantees the hook will not break and deform
gradually under a sudden extra-load
4. Compact and durable chain container: high strength plastic container has
outstanding durability
5.Limit switch devices fitted at both top and bottom ends: switch off power
automatically to prevent load chain from running out
6. Phase error relay: a specially designed current-post, prevents motor from running
at incorrect wire connection.
Paraeters of low headroom electric chain hoist
| Model HHBB | Capa city | Lift ing ght | Lift ing eed /MIN | Lifting motor | Drive motor | I beam | |||||||||
Po wer | Rota tional | Ph ase | Vol tage | Fre quency | Power KW | Rota tional | Run ning | Phase | Voltage V | Freq uency | |||||
01-01 | 1 | 3/9 | 6.8 | 1.5 | 1440 | 3 |
/220 |
/60 | 0.4 | 1440 |
/21 | 3 |
/220 |
/60 |
-153 |
02-02 | 2 | 3/9 | 3.4 | 1.5 | 1440 | 3 |
/220 |
60 | 0.4 | 1440 |
/21 | 3 |
/220 |
/60 |
-153 |
2.5-01 | 2.5 | 3/9 | 6.8 | 3.0 | 1440 | 3 |
/220 |
/60 | 0.75 | 1440 |
/21 | 3 |
/220 |
/60 |
-153 |
03-02 | 3 | 3/9 | 5.8 | 3.0 | 1440 | 3 |
/220 |
/60 | 0.75 | 1440 |
/21 | 3 |
/220 |
/60 |
-153 |
05-02 | 5 | 3/9 | 2.8 | 3.0 | 1440 | 3 |
/220 |
/60 | 0.75 | 1440 |
/21 | 3 |
/220 |
/60 |
-178 |
| NO. | Parts | Specification of electric chain hoist |
| 1 | Shell | Made of die-cast aluminum alloy,light but hard. |
| 2 | Motor | Adopt the Side Magnetic Series YEP Braking Motor. |
| 3 | Gear | Made of alloy steel by carburizing quenching treatment. Thus transmission with low noise and high efficiency is guaranteed. |
| 4 | Inverse phase sequence protecting device | Controls the circuit not to work in case of wiring error in the power supply. |
| 5 | Side Magnetic Braking Device | Allows instant brake as soon as the electric power is cut off. |
| 6 | Chain bag | Light, attractive and durable. |
| 7 | Chain | FEC G80 chain |
| 8 | Hook | hot forging with perfect strength that is hard to break. |

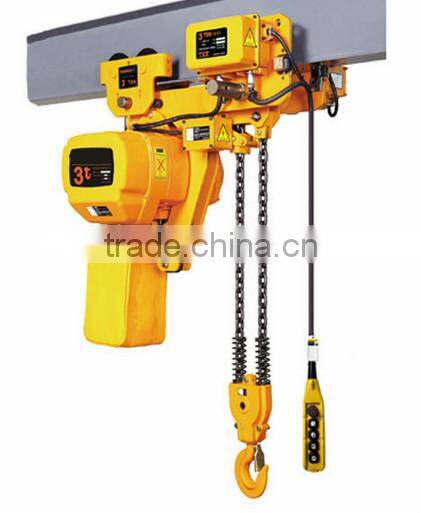

Physical diagram shows(electric chain hoist)

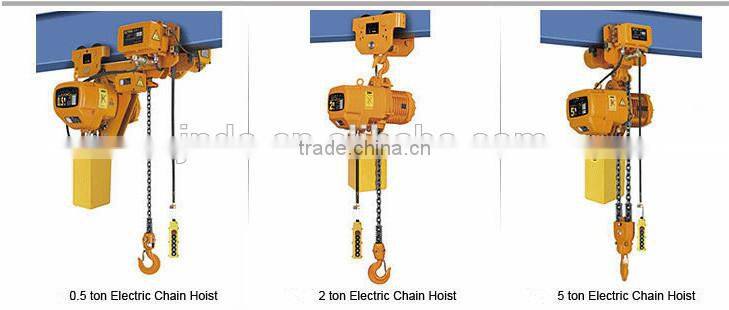

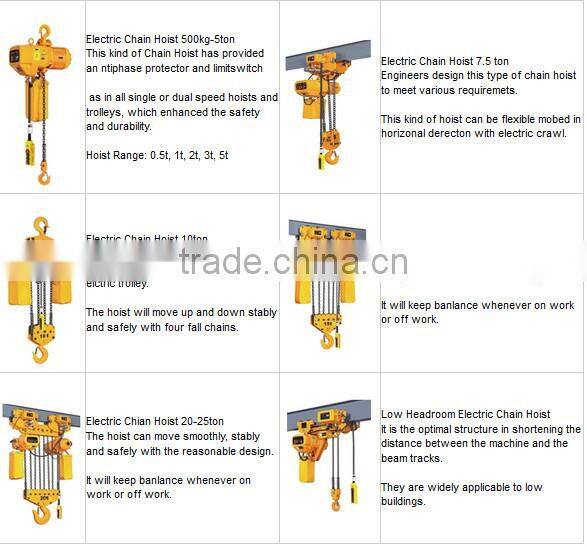

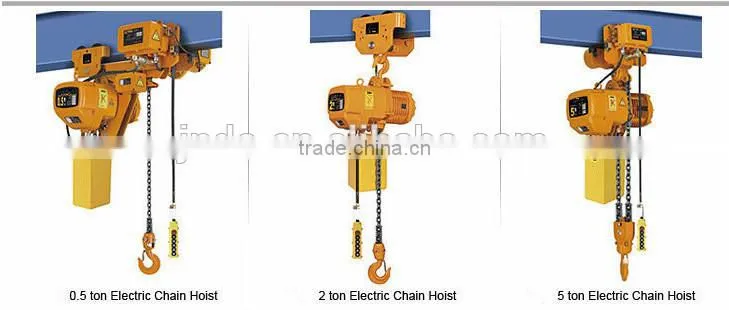

Related products
We can provide not only amazing products,but also special ones designed at requests. We'll do our best to meet the need of customers.
