Specifications
G450 U.S.Type Forged Clip1.Drop forged
2.Hot dip galvanized.
3.Used with wire rope
4.G450 wire rope clip

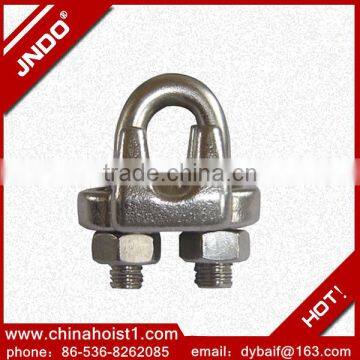

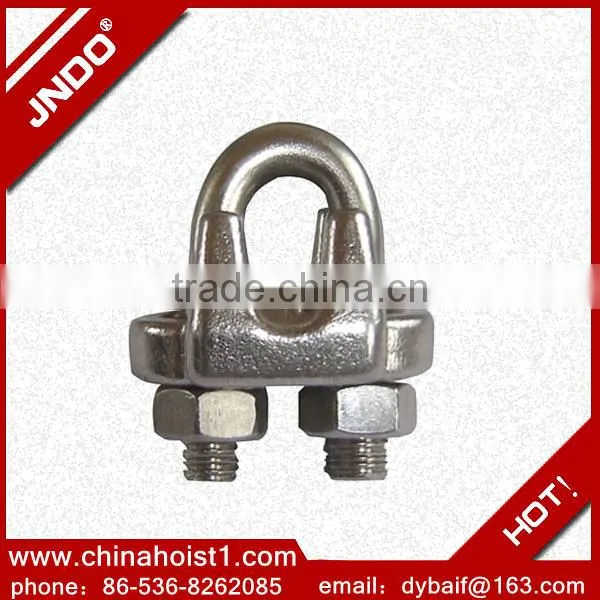

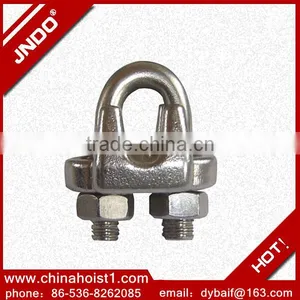

G450 U.S.Type Forged Clip
1. U.S. type drop forged wire rope clips similar to G-450
2. Size: 1/8"-3 1/2"
3. Material: steel or stainless steel 304, 316
4. Surface: hot dipped galvanized, electro galvanized, self colored
5. Customers' special need is welcomed.
6. Timely Delivery, High Quality and Good price, Satisfying Service
7. Remark: put in cartons then in the pallet or as your requirements
delivery time: within one month after order confirmed
payment terms: L/C, T/T,Western Union,Paypal
supply ability: 600000 pieces/month
8. Test cert can be provided.

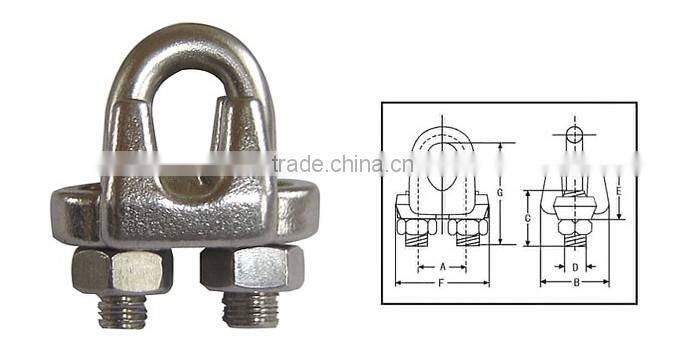

Model | Size | Size (inch ) | Weight(kg/piece) | ||||
| A | G | F | D | E | |||
| 01C01 | 1/8” | 0.47 | 0.72 | 0.94 | 0.22 | 0.4l | 0.002 |
| 0lC02 | 3/16” | 0.59 | 0.97 | 1.16 | 0.25 | 0.50 | 0.003 |
| 01C03 | 1/4” | 0.75 | 1.03 | 1.44 | 0.31 | 0.66 | 0.003 |
| 0lC04 | 5/16” | 0.88 | 1.38 | 1.69 | 0.38 | 0.72 | 0.004 |
| 0lC05 | 3/8” | 1.00 | 1.50 | 1.94 | 0.44 | 0.9l | 0.005 |
| OlC06 | 7/16” | 1.19 | 1.88 | 2.28 | 0.50 | 1.O3 | 0.005 |
| 0lC07 | 1/2” | 1.19 | 1.88 | 2.28 | 0.50 | 1.13 | 0.005 |
| 0lC08 | 9/16” | 1.3l | 2.25 | 2.50 | 0.56 | 1.22 | 0.O06 |
| 0lC09 | 5/8” | 1.3l | 2.38 | 2.50 | 0.56 | 1.34 | 0.006 |
| 01C10 | 3/4” | 1.50 | 2.75 | 2.84 | 0.62 | 1.4l | 0.007 |
| O1Cll | 7/8” | 1.75 | 3.12 | 3.16 | 0.75 | 1.59 | 0.O08 |
| OlCl2 | l | 1.88 | 3.50 | 3.47 | 0.75 | 1.78 | 0.009 |
| 01C13 | 11/8 | 2.O0 | 3.88 | 3.59 | 0.75 | 1.91 | 0.009 |
| 0lCl4 | 11/4 | 2.3l | 4.25 | 4.13 | 0.88 | 2.19 | 0.Oll |
| 01C15 | 13/8 | 2.38 | 4.63 | 4.19 | 0.88 | 2.31 | 0.0ll |
| 01C16 | 11/2 | 2.59 | 4.94 | 4.44 | 0.88 | 2.44 | 0.Ol2 |
| 01C17 | 15/8 | 2.75 | 5.3l | 4.75 | 1.00 | 2.66 | 0.013 |
| 01C18 | 13/4 | 3.O6 | 5.75 | 5.28 | 1.13 | 2.94 | 0.Ol4 |
| 01C19 | 2 | 3.38 | 6.44 | 5.88 | 1.25 | 3.28 | 0.Ol5 |
| 0lC20 | 21/4 | 3.88 | 7.13 | 6.38 | 1.25 | 3.19 | 0.018 |
| OlC21 | 21/2 | 4.13 | 7.69 | 6.63 | 1.25 | 3.69 | 0.019 |
