5897 Kg/13000lbs Long Time Best Selling Winch With Cut Metal Gears

5897 Kg/13000lbs Long Time Best Selling Winch With Cut Metal Gears thumbnail-1
5897 Kg/13000lbs Long Time Best Selling Winch With Cut Metal Gears thumbnail-2
5897 Kg/13000lbs Long Time Best Selling Winch With Cut Metal Gears thumbnail-3
5897 Kg/13000lbs Long Time Best Selling Winch With Cut Metal Gears thumbnail-4
5897 Kg/13000lbs Long Time Best Selling Winch With Cut Metal Gears thumbnail-5
5897 Kg/13000lbs Long Time Best Selling Winch With Cut Metal Gears thumbnail-6
5897 Kg/13000lbs Long Time Best Selling Winch With Cut Metal Gears photo-1
5897 Kg/13000lbs Long Time Best Selling Winch With Cut Metal Gears photo-2
5897 Kg/13000lbs Long Time Best Selling Winch With Cut Metal Gears photo-3
5897 Kg/13000lbs Long Time Best Selling Winch With Cut Metal Gears photo-4
5897 Kg/13000lbs Long Time Best Selling Winch With Cut Metal Gears photo-5
5897 Kg/13000lbs Long Time Best Selling Winch With Cut Metal Gears photo-6
US$ 172 - 257 MOQ: 1 Unit
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Brand Name:
JNDO
Model Number:
JNDO
Contact Supplier Request Quote Chat Now
Shandong Jndo Hoisting Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Hebei, China
Brand Name JNDO
Model Number JNDO
Power Source Electric
Application Other, SUV/Jeep/Off Road
Capacity 13000lbs
Product Description

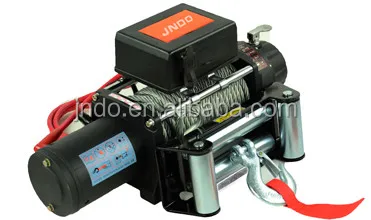

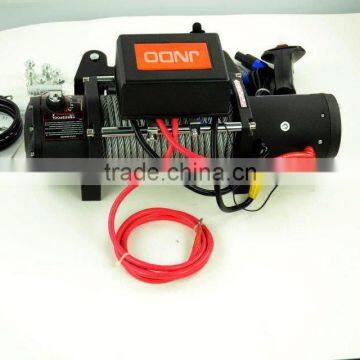

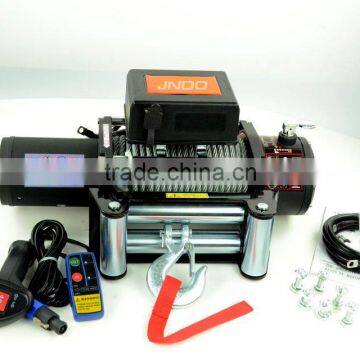

5897 kg/13000lbs Long Time Best Selling Winch With Cut Metal Gears

We built the JNDO series to appeal to the 4WD enthusiast who is passionate about quality but wants value for money.
This winch is loaded with the strength you need for light to medium-duty recovery and pulling. Plus, it's built tough so it's ready for the most demanding situations.
This heavy duty JNDO offroad winch comes equipped with a series wound motor and synthetic rope which is 85% lighter and 20% stronger than steel, as well as an abrasion sleeve to protect the rope material. The synthetic rope glides through the aluminum hawse included with this kit. Also included are a handheld remote and clevis hook. Add your own mounting channel and you're ready to start winching!


• Sintered Steel Bushings
• Galvanized Wirerope and Hook,Chromed Clutch
• Technology Upgraded Motor and Solenoid
• Ergonomically Shaped Freespool Control
• Exacting Duty Textured and Brushed Finished

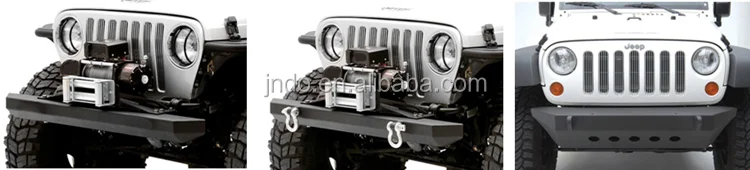

• Multi Position to Install

SPECIFICATIONS FOR 12V 13000LBS ELECTRIC WINCH
Rated Line Pull
13000LB(5897kg) single-line
Motor
6.8hp/5.0kw 12V, Series Wound motor Usd2 more for 24V
Gear Train
3-stage planetary
Gear Reduction Ratio
265:1
Clutch
Turn 180°
Cable
Φ3/8"x92"(Φ9.5mm×28m)
Drum Size
Φ2.51"x8.82"(Φ64mm×224mm)

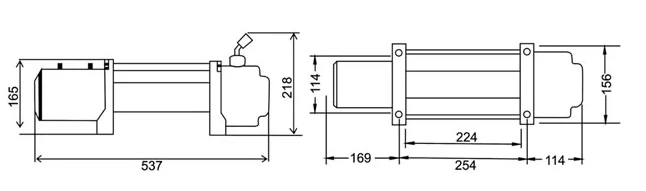

Overall Dimensions
(L×W×H)21.5”×6.3”×8.7”(574×199×241/mm)
Gross Weight
95 lbs(43kg)
Duty Cycle
Intermittently
Fairlead
4-way roller fairlead
Package
1pc/box, 22.4"x13"x9.9"(670x380x275/mm)
Mounting Bolt Pattern
10” ×4.5”(254mm×114.3mm)
Remote Control
included
Note
clutch style, solenoid, brake system can be chosen, different cost
LINE PULL AND ROPE CAPACITY IN LAYER
Layer of cable
1
2
3
4
5
Rated line pull
Lbs
13000
10714
8881
7584
3479
Kgs
5897
4860
4028
3440
1578
Cable of layer
Ft
15.6
35.9
60.7
90.2
92.0
M
4.75
10.93
18.50
27.49
28.04
LINE SPEED & AMP DRAW-FIRST LAYER
Line pull
Lbs
0
4000
6000
8000
10000
13000
Kgs
0
1814
2722
3629
4536
5897
Line speed
Fpm
28.3
10.6
8.13
6.53
6.2
4.6
Mpm
8.63
3.23
2.48
1.99
1.89
1.40
Amp
A
85
93
140
270
311
380

Noice

• Do not use winch as a hoist, do not use for transportaion of people!
• Don't operate and spool under full load over one minute continuously!
• While motor is overtheating, please stop for a while to cool down!

Products Features

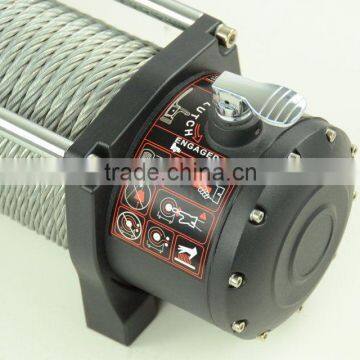

DRUM

Heavy duty drum supports
load tested beyond rated line pull.

CONTROL BOX

Waterproof contactor (solenoid) system. Compact design, can be permanently mounted on the bull bar or in the engine bay.

GEARBOX

Three Stage Planetary with quality components
• Sintered Steel Bushes
• Hardened Steel Gears

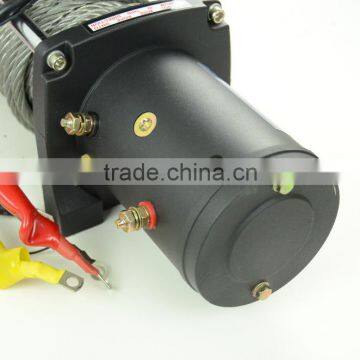

MOTOR

Series Wound motor

Difficult to produce heat , long service life.

ELECTRICAL CABLES

All winches have been equipped with Tinned Coated Copper Power Cables with PVC insulation and the additional protection of a fibreglass outer sheath.

REINFORCED EYELET

Thimble in cable eyelet provides reinforcement and maximum strength.

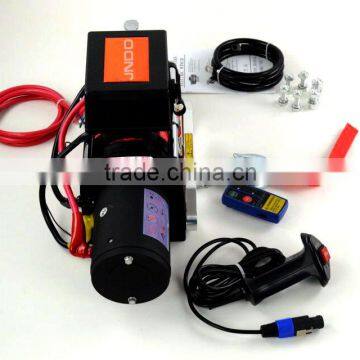

Products Accessories

12V SOLENOID

Compatible with other brands of winches containing a series wound motor. Solenoid only.

CONTROL BOX

Compatible with other brands of winches equipped with a series wound motor. (Hand control and electrical power cable not included)

HAND/WIRELESS CONTROL

Full rubberised body hand control with forward and reverse. 3.7 meter lead.

Connect to the control box or contactor plug to allow wireless winch control.

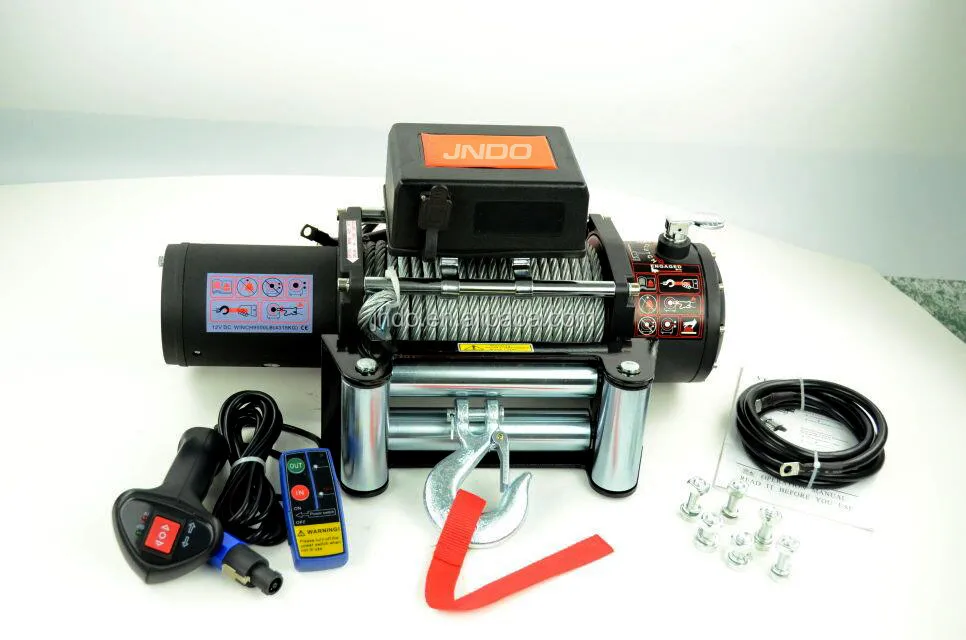

Product Show

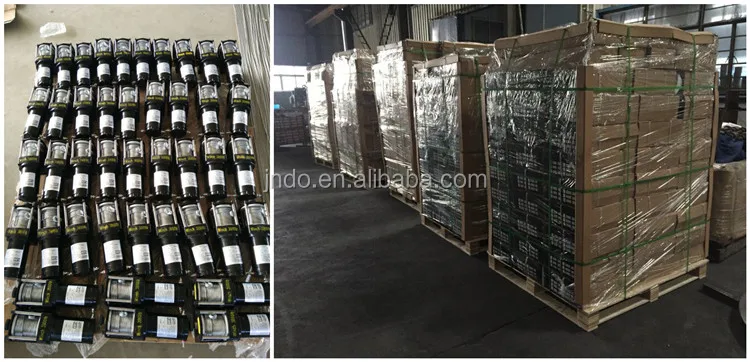

Packing & Delivery
Our service

Certification

Strong quality control, each and every winch is tested by one specific designated worker for its amps with no load right after the assmeble of winch body to avoid any future problems.

Payment

Methods of payment we accept:

Paypal

Western Union

MoneyGram

L/C
T/T

Shipping

We work with different courier partners to provide reasonable freight costs and quality service. The type of courier is depending on the size and weight of each item and the delivery location.

Warranty

For your peace of mind,this product comes with 1 year warranty.

We value our customers and wish to make your purchase experience enjoyable.

If something goes wrong with your product,you should always contact us for assistance.
