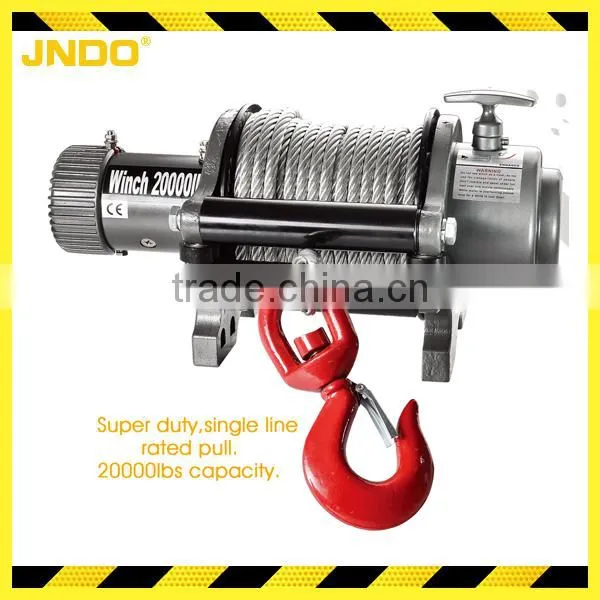

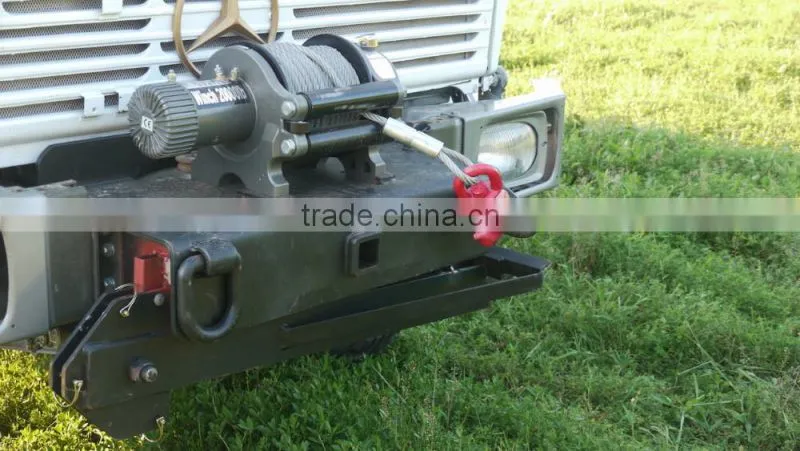

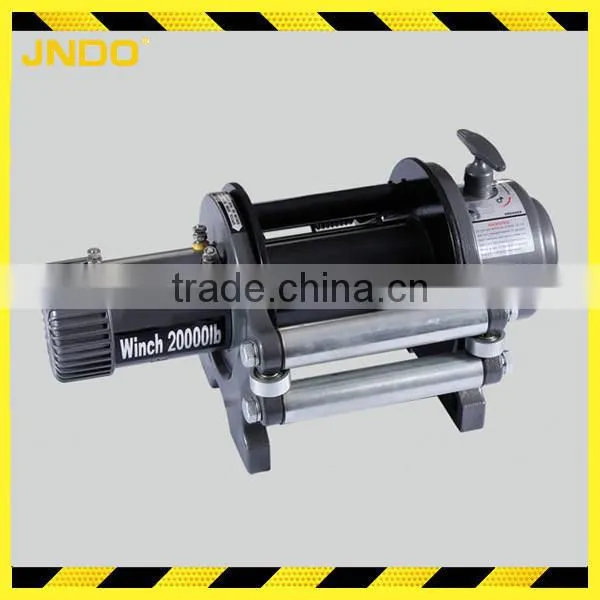

Automatic brake truck 20000lbs large capacity electric winch
Product Description
JN-S20000/JN-S20000T

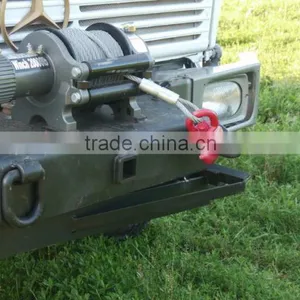

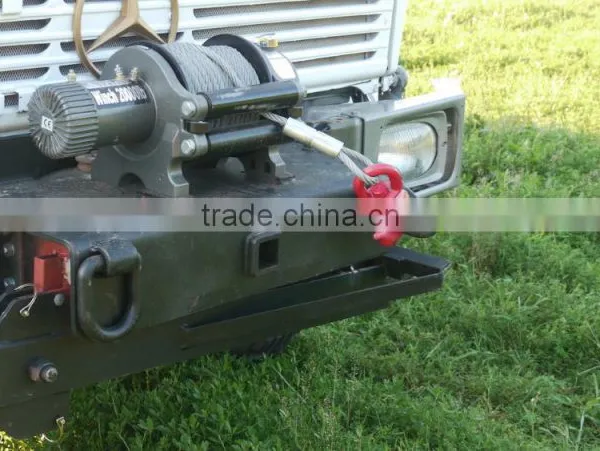

The single line pull of 20000lb off-road vehicle winch is as high as 9.1ton. It can be used
on the heavy vehicle such as the cargo truck. This product is firstly developed by our
company. It was once the tool with largest pulling force. Currently, it is still quite popular
by virtue of its good performance. If you need a product with large pulling force, this
product is sure to meet your requirement.
The fairlead of the product is integrated with the winch. Therefore, it saves the time for
installation. For the product with big pulling force, the design makes the product safer
and more humanized.
Overall dimensions of 20000lbs large capacity electric winch
| Rated Rope tension | 20000LBS | Voltage | DC 12V/24V |
| Color | CUSTOMIZED | Application | Auto |
| Motor |
7.3hp/5.5kW,12V 8.16hp/6.0kW,24V |
Certification | CE |
| Control |
Wired remote switch, wireless remote |
Mounting bolt pattern |
254mm×114.3mm, 254mm×194.3mm |
| Gear reduction rate |
375:1 |
Drum Size (Dia.×L) | Φ99mm×201.5mm |
| Gear Train | 3-stage planetary gear | Fairlead | 4-way roller fairlead |
| Model Number | S20000/S20000T | Packing Size |
Winch:600×380×400mm Cable:460×460×150mm |
| Clutch | Sliding ring gear | Port | Ningbo/QingDao |
Standard Configuration of 20000lbs large capacity electric winch
1. Control box of electric winch
2. Wired remote switch: with 1.83m cable
3. Roller fairlead/Hawse fairlead
4. The series wound motor of 20000lb 20000lbs heavy duty electric winch is fully sealed
Therefore, the motor has good water resistance
5. Clutch: sliding ring gear

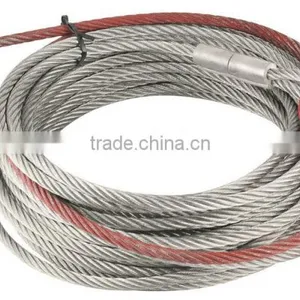

6. Wire rope: Φ13.5mm×30m
7.Certifications of electric winch:CE certification
Optional Accessories of 20000lbs large capacity electric winch
1. Mounting rack
2. Wireless remote control
3. Nylon rope
4. Tree strap

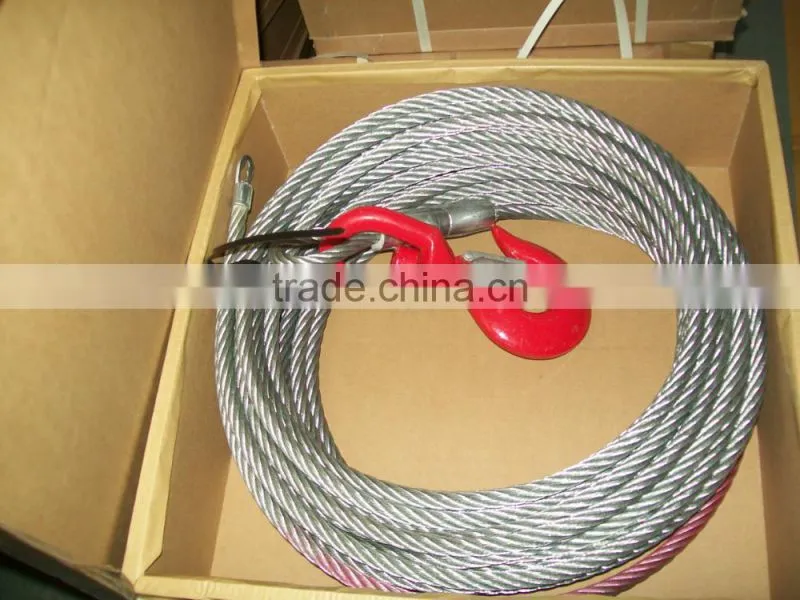

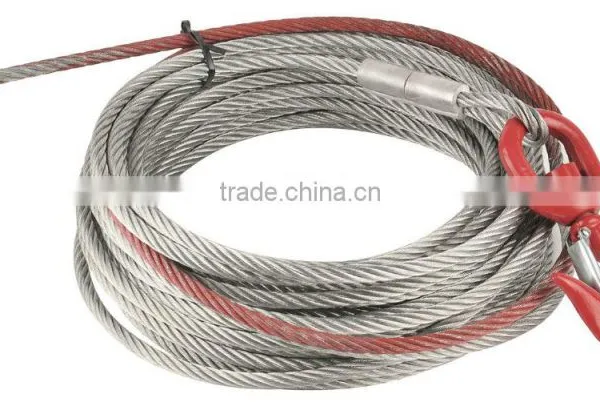

Cable and hook
Shandong JNDO Hoisting Equipment Co., Ltd. is a manufacturer specialized
in the research, development and production of high-quality made-in-China
winch/windlass,hoist,crane,jack,pallet truck,magnet lifter and
accessories etc.
Please feel free to contact us with any inquiries for products.
Our certificates

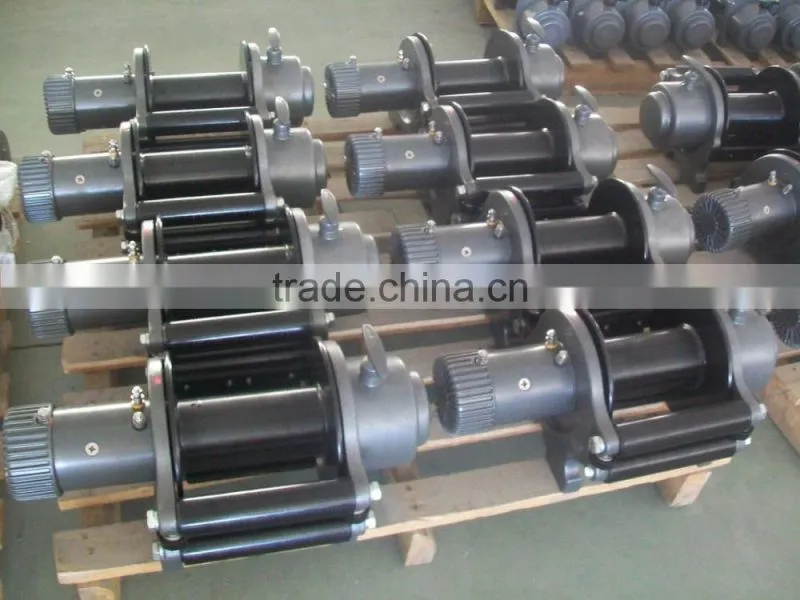

Parts of our products
We aim at your MAXIMUM satisfaction
Your SUCCESS is our BUSINESS!
1. OEM Manufacturing welcome: Product, Package...
2. Sample order.
3. We will reply you for your inquiry in 24 hours.
4. After sending, we will track the products for you once every two days, until you get the products.
When you got the goods, test them, and give me a feedback.If you have any problems, contact us,
and we will offer the way to solve them.

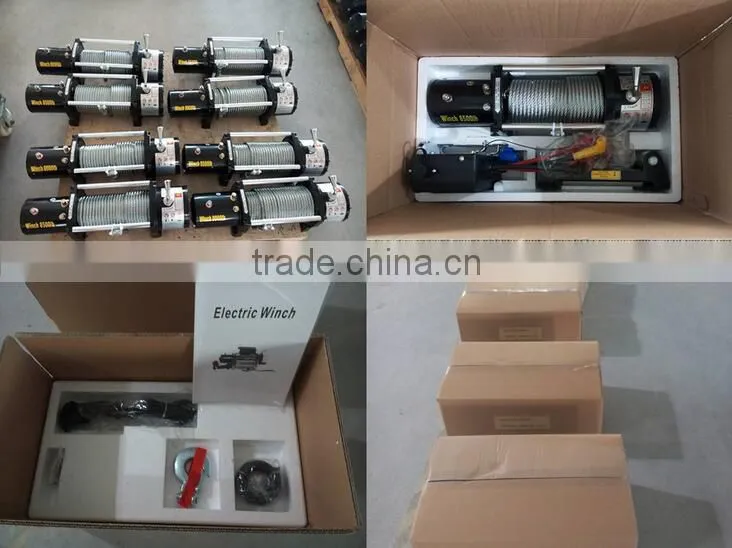

| Q1:How are your goods packed? |
| A:Generally, we pack our goods in wooden box with plate , If you have legally registered patent,we can pack the goods in your branded boxes after getting your authorization letters. |
| Q2:What is your terms of payment? |
| A:T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance. |
| Q3:What is your terms of delivery? |
| A: EXW, FOB, CFR, CIF. |
| Q4:How about your delivery time? |
| A:Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order. |
| Q5:What is your sample policy? |
| A:We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost. |
| Q6:Do you test all your goods before delivery? |
| A:Yes, we have 100% test before delivery. |
