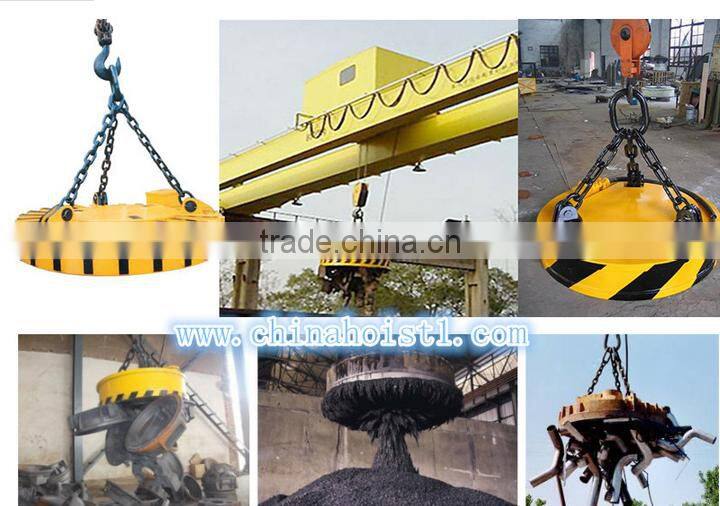

Electric material handling equipment with remote control
*** Features of lifting magnet
1.The protection plate for coil adopts abrasion-resisting and shockproof rolling high-manganese steel.
2.The electromagnet is dealt with special technology, thus insulation grade can be up to Grade F.
3.Coils of magnets are made of Aluminum (flat aluminum wire covered by double spun glass) or cooper.
4.High lifting capacity, light self-weight.
5. Low power consumption, long service life.
*** Types of lifting magnet
1. Normal temperature type (DC-220V TD-60%)
2. High frequency type (DC-220V TD-75%)
3. High temperature type (DC-220V TD-60)
*** Parameters of lifting magnet
Model | MW5-110L/1-75 | MW5-130L/1-75 | MW5-150L/1-75 | MW5-165L/1-75 | MW5-180L/1-75 | MW5-210L/1-75 | MW5-240L/1-75 | MW5-250L/1-75 | ||
Overall dimension (mm) | A | 1100 | 1300 | 1500 | 1650 | 1800 | 2100 | 2400 | 2500 | |
B | 1270 | 1290 | 1360 | 1690 | 1650 | 1900 | 2100 | 2260 | ||
C | 220 | 250 | 350 | 370 | 370 | 400 | 450 | 450 | ||
D | 150 | 175 | 210 | 230 | 230 | 250 | 280 | 280 | ||
E | 45 | 50 | 60 | 75 | 75 | 80 | 90 | 90 | ||
Weight (kg) | 1500 | 2280 | 3175 | 3840 | 4690 | 7810 | 10115 | 11100 | ||
Constant voltage control mode | Current in cold state (A) |
27.6 |
40.7 |
51.4 |
55.6 |
73.9 |
98.5 |
117.6 |
185 | |
Consumption power in cold state (KW) |
6.07 |
8.95 |
11.3 |
12.2 |
16.3 |
21.7 |
25.9 |
40.3 | ||
Lifting capacity for impact ball (kg) |
6500 |
8500 |
11000 |
12500 |
14500 |
21000 |
--- |
--- | ||
Lifting capacity for packed pig irons (kg) |
1000/800 |
1400/1100 |
1900/1500 |
2300/1800 |
2750/2100 |
3500/2800 |
4800/3800 |
5600/4500 | ||
Lifting capacity for packed steel cuttings (kg) |
450/400 |
700/600 |
1100/900 |
1300/1100 |
1600/1350 |
2200/1850 |
2850/2250 |
3500/2650 | ||
Strong excitation mode | Current in cold/hot state (A) |
36.4/16.2 |
53.7/23.9 |
69.8/30.1 |
73.3/50.6 |
97.4/54 |
129.8/57.8 |
155/67.2 |
244/126 | |
Consumption power in cold/hot state (KW) |
10.6/3.24 |
15.6/4.8 |
19.7/6.02 |
21.3/10.1 |
28.2/10.8 |
37.6/11.6 |
45/13.4 |
70.8/27.7 | ||
Lifting capacity for packed pig irons (kg) |
1050/900 |
1500/1250 |
2000/1700 |
2500/2100 |
2900/2400 |
3700/3100 |
5000/ | |||
1.1 year standard warranty (could be prolonged by discussion).
2. 24 hours response.
3. Free mail and telephone service guidance.
4.In warranty period, if our machine has problem and the problem can’t be solved by door to door service for 3 times, we will send you a new machine replace the former one freely.
5.one or two sets free quick-wear parts.
