Small steel plate lifting permanent magnetic lifter

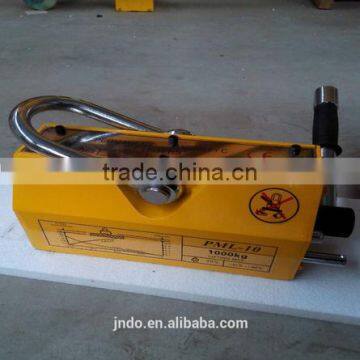

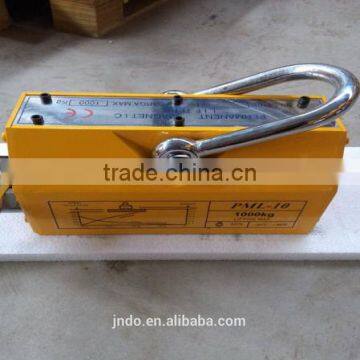

1 ton pernament magnet lifter specifications:
Pernament magnet lifter has strong magnetic path produced by NdFeB magnet. On and off magnetic path is controlled by turning the manual handle. The lifters have the features of strong attraction, smaller volume, lighter weight, powerful lifting effort, easy and safe to operate, long-period effort and without power supply. They are been used to lift and transport the steel and iron for factories, docks, ware houses, and so on.
Pernament magnet lifter material: NdFeB Magnet, Neodymium Magnet, Pernament Magnet, Rare-earth Magnet
Pernament magnet lifter weight:100kg,300kg,400kg,500kg,1000kg,2000kg,3000kg,5000kg
pulling-out force:3 times,3.5 times
Pernament magnet lifter widely used in machining, mould producing industry.
Using high-performance manual pernament magnet lifter materials, Strong in magnetic suction, patent circuit design, remanence almost zero.
High safety factor, maximal breakway force is 3.5 times rated lifting power.

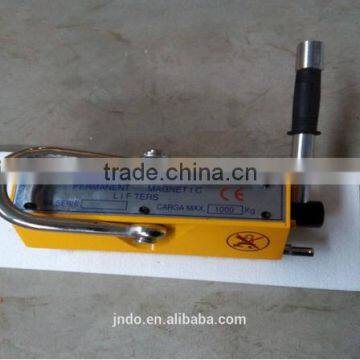

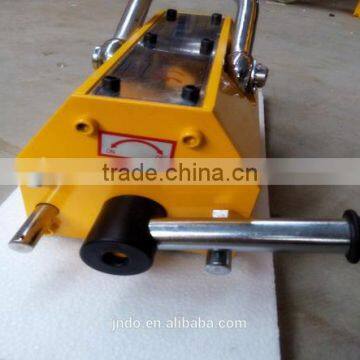

Handle switches with safety twist, easy for Single-hand operation, more safety and convenience.

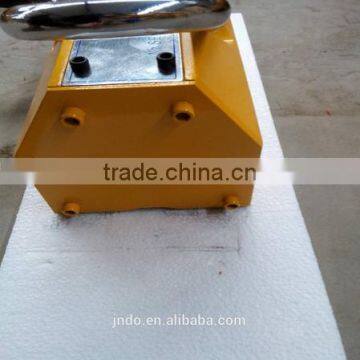

V style design at the bottom of manual magnet lifter,can lift opposite round steel or steel board.
parameter of 1 ton lifting magnet permanent magnetic lifter :

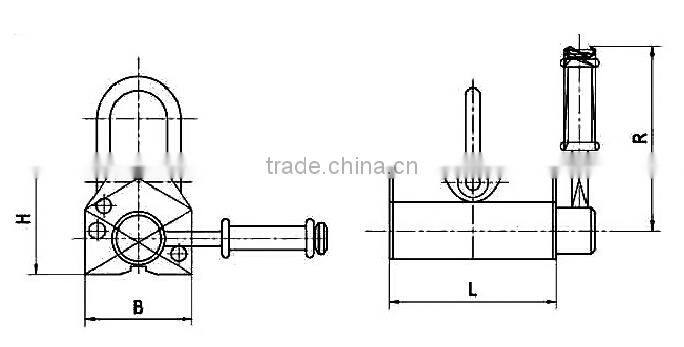

Model | Rarde Lifting (KG) | Boundary dimension(MM) | MAX Lift | Net Weight | ||||
steel plate | cylidrical workpiece | L | B | H | R | KG | KG | |
PML-1 | 100 | 50 | 95 | 77 | 80 | 155 | 350 | 3.5 |
PML-3 | 300 | 150 | 163 | 105 | 110 | 185 | 1050 | 11.5 |
PML-4 | 400 | 200 | 201 | 115 | 115 | 210 | 1400 | 18.2 |
PML-6 | 600 | 300 | 221 | 120 | 125 | 235 | 2100 | 25 |
PML-10 | 1000 | 500 | 295 | 145 | 152 | 265 | 3500 | 48 |
PML-15 | 1500 | 750 | 313 | 145 | 152 | 350 | 5000 | 55 |
PML-20 | 2000 | 1000 | 360 | 170 | 178 | 426 | 6000 | 90 |
PML-30 | 3000 | 1500 | 460 | 180 | 186 | 520 | 9000 | 120 |
PML-50 | 5000 | 2500 | 660 | 260 | 280 | 650 | 15000 | 240 |
PML-100 | 10000 | 5000 | 870 | 260 | 300 | 750 | 30000 | 500 |
1.1 year standard warranty (could be prolonged by discussion).
2. 24 hours response.
3. Free mail and telephone service guidance.
4.In warranty period, if our machine has problem and the problem can’t be solved by door to door service for 3 times, we will send you a new machine replace the former one freely.
5.one or two sets free quick-wear parts.
