2.5ton Basic Pallet Truck

Shandong Jndo Hoisting Equipment Co., Ltd.
2.5ton Basic Pallet Truck thumbnail-1
2.5ton Basic Pallet Truck thumbnail-2
2.5ton Basic Pallet Truck thumbnail-3
2.5ton Basic Pallet Truck thumbnail-4
2.5ton Basic Pallet Truck thumbnail-5
2.5ton Basic Pallet Truck thumbnail-6
2.5ton Basic Pallet Truck photo-1
2.5ton Basic Pallet Truck photo-2

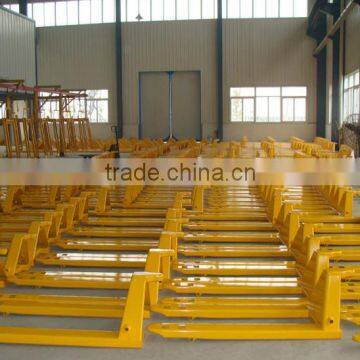

2.5ton Basic Pallet Truck photo-3
2.5ton Basic Pallet Truck photo-4

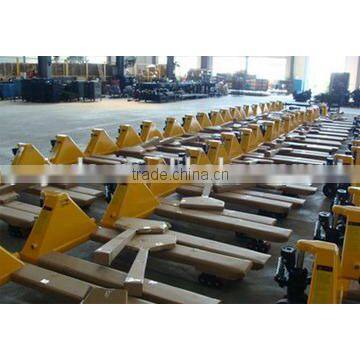

2.5ton Basic Pallet Truck photo-5
2.5ton Basic Pallet Truck photo-6
US$ 140 - 600 MOQ: 6 Pieces
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shanghai, China
Brand Name:
JNDO
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Shanghai, China
Brand Name JNDO
Model Number CBY-AC
Type Manual Pallet Truck
Power Souce DC Motor
Rated Loading Capacity 3T
Max. Lifting Height 195MM
Min. Lifting Height 85MM
Fork Length 1150mm,1100 or 1220mm
Fork Width 450mm,550 or 685mm
Overall Dimensions 1600*680mm (L*W)
Certification CE GS SGS
After-sales Service Provided No overseas service provided

2.5ton basic pallet truck

Product Description



The  lift truck is the ideal " storage aid" and " handling partner " for all manual transport tasks over short distances , exce-llently suitable for use on lorries ,in small warehouses and markets ect .

Product parameter

 Hydraulic Hand Pallet Truck(CBY-AC ),Manual Pallet Truck,Hand Pallet Truck:

the speacification of  hand pallet truck as follows :

Hand Pallet Truck Parameters

CBY.AC 1.5

CBY.AC 2.0

CBY.AC 2.5

CBY.AC 3.0

Capacity(Kg)

1500

2000

2500

3000

Lowered fork height H1(mm)

85/75/65

Total lift height H2(mm)

195/185/175

Fork lenght L1(mm)

1000

1100/1150

1150/1220

1220

Width over the forks B(mm)

520/550

550

550/685

685

Steering wheel A(mm)

Φ180/Φ160

Front wheelC(mm)

Φ80/Φ70/Φ60

Self weight(Kg)

73--92

Qty/20 container(Pcs)

180

180

180/144

144

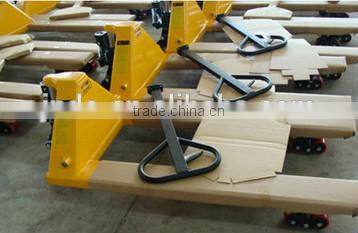

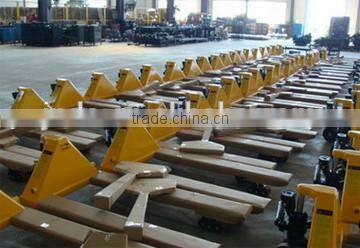

photo show

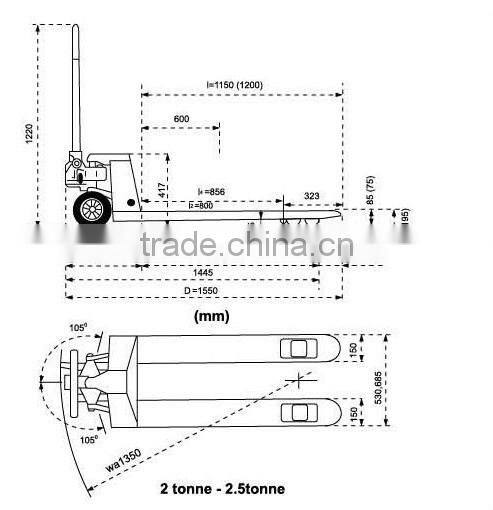

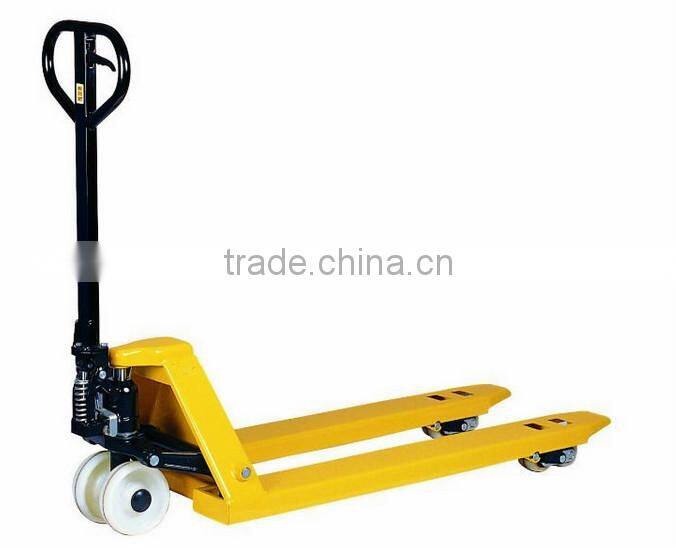

 Physical diagram shows( Hydraulic Hand Pallet Truck(CBY-AC ),Manual Pallet Truck,Hand Pallet Truck: )

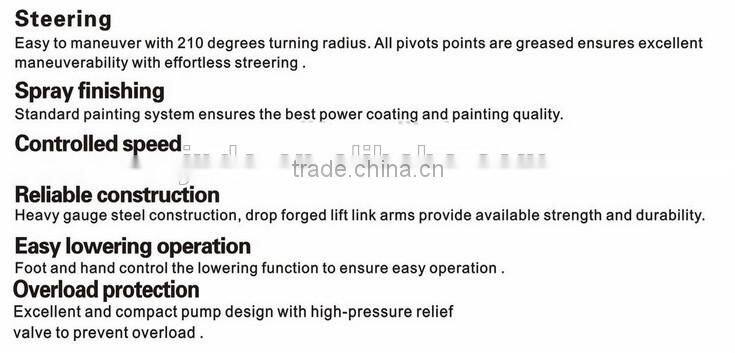

  Advantage of hand pallet truck:

High Safety

Easy to apply, transport and store

Various sizes available for every applications

Strong resistance to chemical, oil & surface abrasion

Long life and economy price

Perfect Quality control by thorough experiment

hand pallet truck

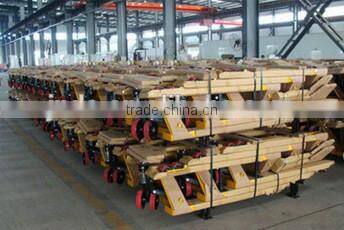

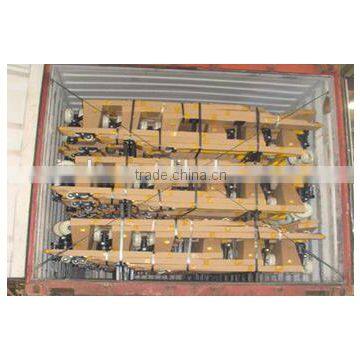

Packaging & Shipping



Delivery: 7 days after received the payment Packing: Plywood pallets or as customers request

Our Services

 We can provide not only amazing products,but also special ones designed at requests.We'll do our best to meet the need of customers.
