CE marked manual hand pallets truck with quick lift
- 1000 Piece / Pieces per Month
- QINGDAO
- T/T Credit Card
Product Details
| Condition: | New | Place of Origin: | Shanghai, China | Brand Name: | JNDO |
| Model Number: | CBY-AC | Type: | Manual Pallet Truck | Power Souce: | DC Motor |
| Rated Loading Capacity: | 3T | Max. Lifting Height: | 195MM | Min. Lifting Height: | 85MM |
| Fork Length: | 1150mm,1100 or 1220mm | Fork Width: | 450mm,550 or 685mm | Overall Dimensions: | 1600*680mm (L*W) |
| Certification: | CE GS SGS | After-sales Service Provided: | No overseas service provided |
Product Description

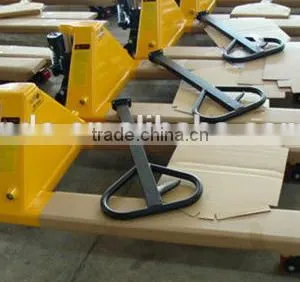

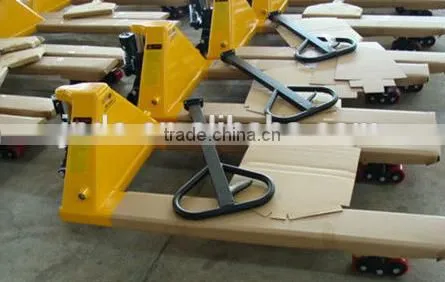

CE marked manual hand pallets truck with quick lift
The lift truck is the ideal " storage aid" and " handling partner " for all manual transport tasks over short distances , exce-llently suitable for use on lorries ,in small warehouses and markets ect .
Hydraulic Hand Pallet Truck(CBY-AC ),Manual Pallet Truck,Hand Pallet Truck:
the speacification of hand pallet truck as follows :
Hand Pallet Truck Parameters | CBY.AC 1.5 | CBY.AC 2.0 | CBY.AC 2.5 | CBY.AC 3.0 |
Capacity(Kg) | 1500 | 2000 | 2500 | 3000 |
Lowered fork height H1(mm) | 85/75/65 | |||
Total lift height H2(mm) | 195/185/175 | |||
Fork lenght L1(mm) | 1000 | 1100/1150 | 1150/1220 | 1220 |
Width over the forks B(mm) | 520/550 | 550 | 550/685 | 685 |
Steering wheel A(mm) | Φ180/Φ160 | |||
Front wheelC(mm) | Φ80/Φ70/Φ60 | |||
Self weight(Kg) | 73--92 | |||
Qty/20 container(Pcs) | 180 | 180 | 180/144 | 144 |
Physical diagram shows( Hydraulic Hand Pallet Truck(CBY-AC ),Manual Pallet Truck,Hand Pallet Truck: )
Advantage of hand pallet truck:
High Safety
Easy to apply, transport and store
Various sizes available for every applications
Strong resistance to chemical, oil & surface abrasion
Long life and economy price
Perfect Quality control by thorough experiment
hand pallet truck
Delivery: 7 days after received the payment Packing: Plywood pallets or as customers request
We can provide not only amazing products,but also special ones designed at requests.We'll do our best to meet the need of customers.
