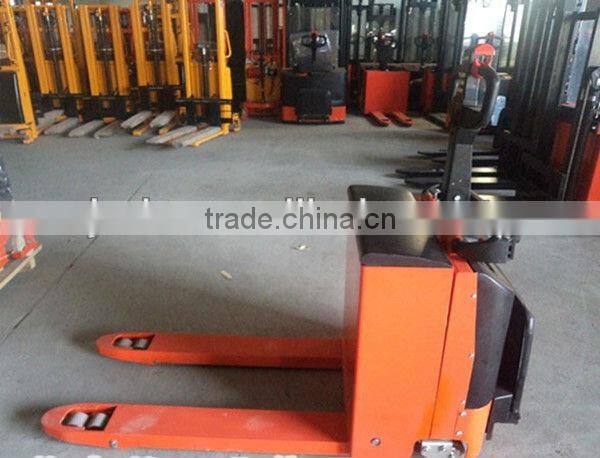

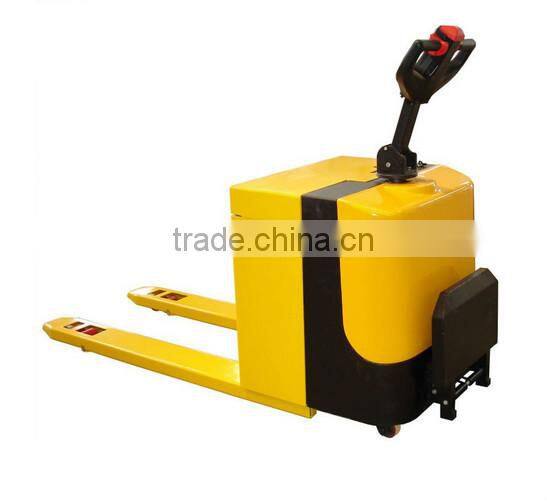

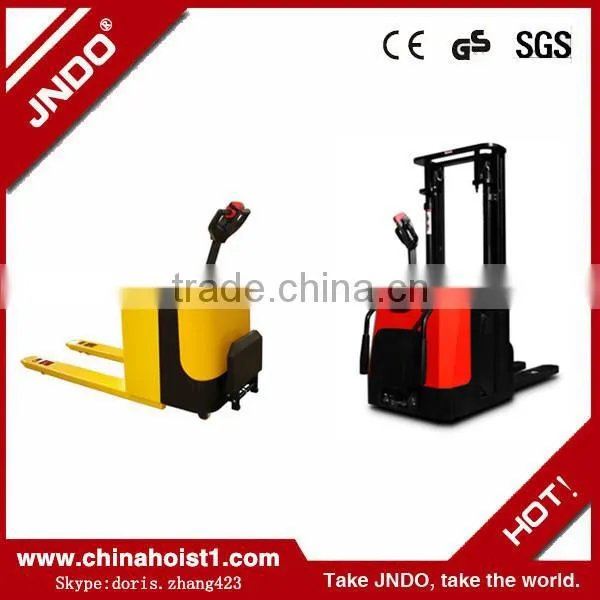

Material Handling Equipment Battery Electric Forklift
***Features of electric pallet truck/pallet jack with CE
1. Powerful and reliable Jialift AC and DC drive system
2. Ergonomic tiller
3. Stability through additional stabilizers
4. Maintenance free battery
5. Built-in charge
***Parameters of electric pallet truck/pallet jack with CE

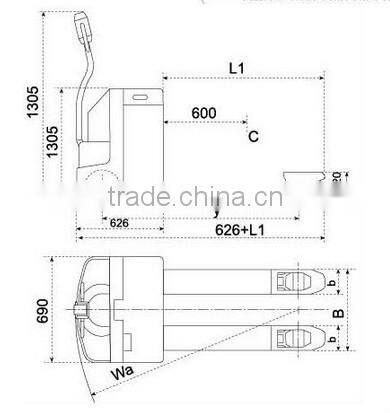

| FULL ELECTRIC PALLET TRUCK | Model | |||||
| Item | Specification | Unit | EPT15 | EPT20 | EPT22 | EPT25 |
| 1 | Rated capacity | Kg | 1500 | 2000 | 2200 | 2500 |
| 2 | Load center | mm | 600 | 600 | 600 | 600 |
| 3 | Drive type | Standed | ||||
| 4 | Motor brake | Electromagnetic | ||||
| 5 | Load distance (centerline of front axle to front face of forks) | mm | 963/1054 | 963/1033 | 963/1033 | 957 |
| 6 | Battery weight | Kg | 48 | 185 | 185 | 280 |
| 7 | Self weight (with battery) | Kg | 286 | 520 | 515 | 970 |
| 8 | Full Load per Axle - Driving side / bearing side | Kg | 675/1115 | 1040/1480 | 1085/1630 | 162/1850 |
| 9 | Empty Load per Axle - Driving side / bearing side | Kg | 230/60 | 405/115 | 400/115 | 780/200 |
| 10 | Lifting Height (standard) | mm | 120 | 120 | 120 | 130 |
| 11 | Fork min. ground clearance | mm | 85 | 85 | 85 | 85 |
| 12 | Adjust width of fork (standard) | mm | 520/650 | 540/685 | 540/685 | 560 |
| 13 | Fork size | mm | 47/160/1220 | 60/160/1150 | 60/160/1150 | 60/160/1150 |
| 14 | Minimum ground clearance | mm | 24 | 25 | 25 | 25 |
| 15 | Overall length | mm | 1660 | 1815/1885 | 1815/1885 | 2025 |
| 16 | Overall width | mm | 700 | 726 | 726 | 796 |
| 17 | Overall height (including handle ) | mm | 1235 | 1323 | 1323 | 1290 |
| 18 | Bodywork height | mm | 677 | 745 | 745 | 1196 |
| 19 | Wheel tread (front/rear) | mm | 490/490 | 540/380 | 540/380 | 441/380 |
| 20 | Supporting wheel tread | mm | 1310 | 1368 | 1368 | 1515 |
| 21 | Minimum turning radius | mm | 1976 | 1640 | 1640/1710 | 1865 |
| 22 | Stacking right angle aisle width (1200mm pallet) | mm | 1976 | 2105 | 2105 | 2255 |
| 23 | Max. driving speed (full) | Km/h | 5 | 5 | 5.8 | 8.7 |
| 24 | Max. driving speed (empty) | Km/h | 5.2 | 5.2 | 6 | 9 |
| 25 | Max. lifting speed (full) | mm/s | 27 | 27 | 19 | 33.7 |
| 26 | Max. lifting speed (empty) | mm/s | 35 | 35 | 38 | 45 |
| 27 | Max. declining speed (full) | mm/s | 42 | 42 | 30 | 35.7 |
| 28 | Max. declining speed (empty) | mm/s | 27 | 27 | 27 | 18.7 |
| 29 | Gradeability full/empty | % | 5/8 | 10/16 | 9/15 | 6.9/14 |
| 30 | Steering angle | ° | 205 | 180 | 180 | 180 |
| 31 | Sound level at the driver's ear | dB(A) | less70 | less70 | less70 | less70 |
| 32 | Wheels material | Polyurethane | ||||
| 33 | Wheel number (front/rear) | 4/3 | ||||
| 34 | Drive wheel (mm) | mm | φ252X89 | φ230X75 | φ230X75 | φ254X82 |
| 35 | Load wheel (mm) | mm | φ74X70 | φ74X70 | φ84X70 | φ84X70 |
| 36 | Balance wheel (mm) | mm | φ100X40 | φ100X40 | φ100X40 | φ149X55 |
| 37 | Travel motor | KW | 0.8 | 1.5 | 1.5 | 2.2 |
| 38 | Lift motor | KW | 0.6 | 0.8 | 0.8 | 2.2 |
| 39 | Voltage | V | 2X12 | 24 | 24 | 24 |
| 40 | Battery capacity | Ah | 80 | 210 | 210 | 360 |
| 41 | Power | Electric | ||||

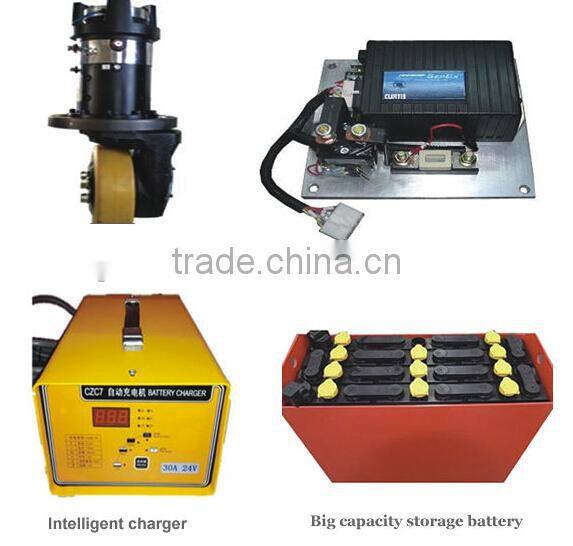

Compoments

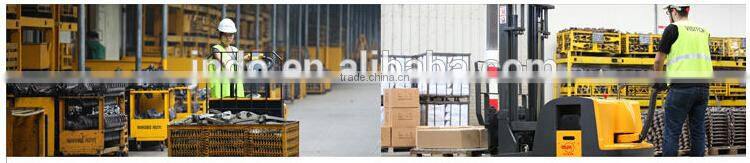

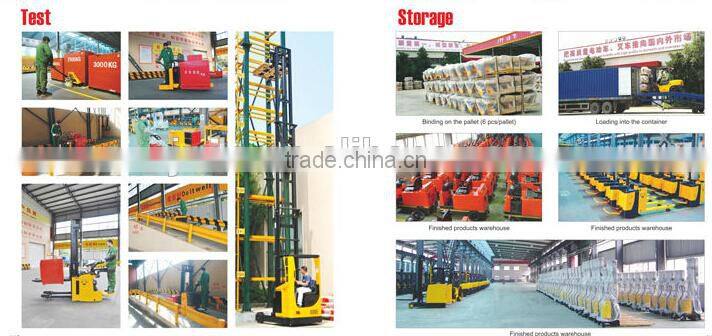

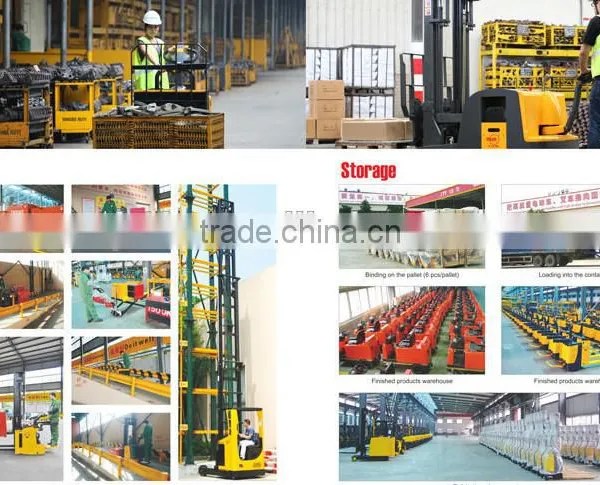

Processing
Shandong Jndo Hoisting Equipment Co., Ltd. is a manufacturer specialized in the research, development and production of hoist, electric hoist, electric chain hoist, crane and electric wire rope hoist. We have a long history of customer confidence and supporting chinese manufacturers. We provide our customers with high-quality made-in-China hoist, electric hoist, electric chain hoist, crane and electric wire rope hoist from hundreds of Chinese manufacturers.
We have a long history of customer confidence and supporting chinese manufacturers. We provide our customers with high-quality made-in-China hoist, electric hoist, electric chain hoist, crane and electric wire rope hoist from hundreds of Chinese manufacturers.
Welcome to JNDO
Your success is our business
Super Abilites:
By adopting carefully selected components and perfect and perfect manufacturing technology,we can show the outstanding product quality to customers so that users can operate our products easier,by using brand new environment-friendly peotection paint and humanization design,it takes you perfect security in different work conditions.
Outstand Service:
We can provide not only amazing products,but also special ones designed at requests.We'll do our best to meet the need of customers.
