Help CenterFamily Used Small Electric Hoist 110v
Related Products
-
Pa200 200kg Small Hoist HomeUS$ 45 - 45MOQ: 100 Sets -
600kg PA Mini Electric HoistUS$ 56 - 66MOQ: 1 Piece
-
Small 110v Pa1000 Lightweight Mini Electric Hoist WinchUS$ 78 - 138MOQ: 1 Unit
-
Micro 250kg Pa500 Electric Hoist WinchUS$ 78 - 138MOQ: 1 Unit
-
220 Volts 250kg Cheap Small Electric Hoist WinchUS$ 78 - 138MOQ: 1 Unit
1. small electric hoist 110v key specifications/features :
• The emergency stop switch
• Upper limit function
• Thermal protection terminal
• Protection class IP54
• Insulation class B
• Group of mechanisms M1
• Work Duty: S3-25%-10min
• Rated Volt: 220/230V ~ 50Hz
• Rated Current: 2.0A
• Input Power: 480W
• Lifting Weight: 100-600kg (Single-line), 200-1200kg (Double-line)
• Lifting Height: 12m (Single-line), 6m (Double-line)
• Lifting Speed: 10m/min (Single-line), 5 m/min (Double-line)
• Diameter of wire rope: 3.0mm
• Tensile strength of wire rope ≥ 1870N/mm2
2. small electric hoist 110v logistic Information:

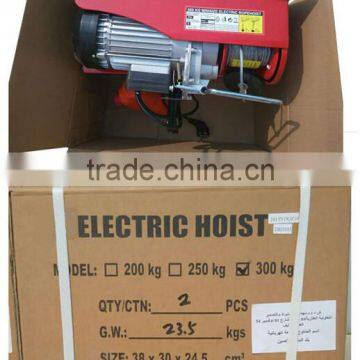

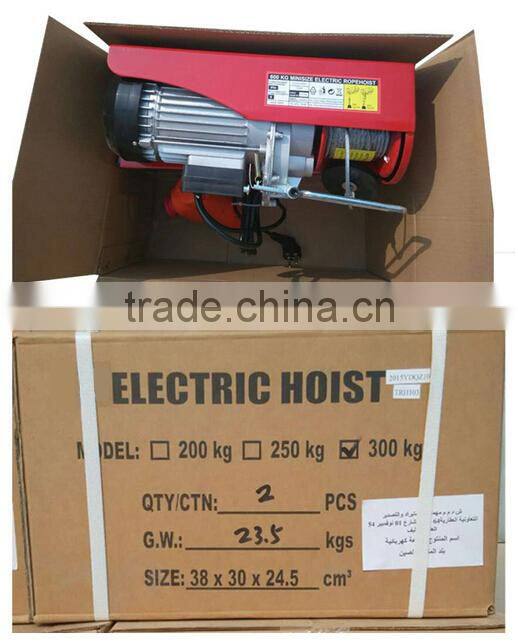

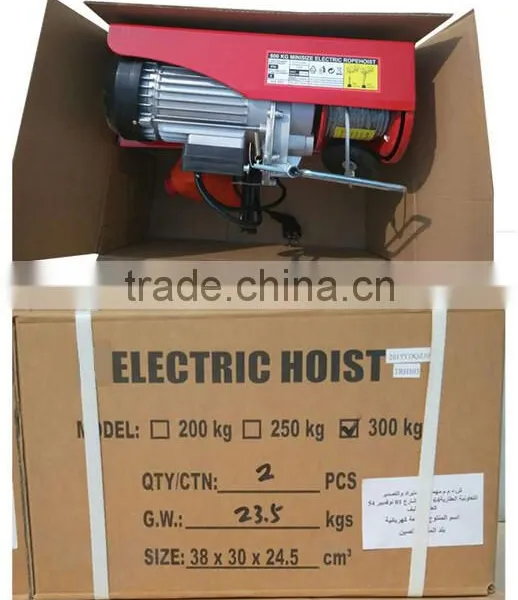

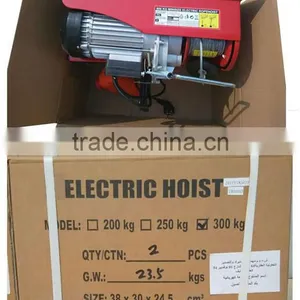

• Packing pattern: 1pc per color inner box, 2pcs per master carton
• Packing Dimension: 44*38*20 cm
• G.W./N.W.: 24/22kg
• Qty /1x20’FCL: 1650pcs
3.payment Details:
• Payment terms: T/T
• MOQ: 200 PCS Min
4.delivery Details:
• FOB Ports: Qingdao port
• Lead time: 10 days
5.harmonization System (HS) Code:
• 8425 1100
6. technical parameters of small electric hoist 110v :
Model |
PA200 |
PA250 |
PA400 |
PA500 |
PA600 |
PA800 |
PA1000 |
Rated Volt(V) |
230-50hz S3 20% 10 min |
||||||
Input Power (w) |
450 |
500 |
750 |
900 |
1050 |
1300 |
1600 |
Rate Lifting(kg) |
100/200 |
125/250 |
200/400 |
250/500 |
300/600 |
400/800 |
500/1000 |
Lifting height(m) |
12/6 |
12/6 |
12/6 |
12/6 |
12/6 |
12/6 |
12/6 |
Lifting speed(m/min) |
10/5 |
10/5 |
10/5 |
10/5 |
10/5 |
10/5 |
10/5 |
packing dimensions(cm) |
44*38*20 |
44*37*25 |
44*37*25 |
44*37*25 |
53*45*19 |
53*28*35 |
53*28*35 |
G.W/N.W |
24/22 |
25/24 |
25/33 |
36/34 |
41/38 |
38/36 |
40/38 |
quan/ctn(pcs) |
2 |
2 |
2 |
2 |
2 |
1 |
1 |
1.The Mini Order of small electric hoist 110v ?
We can accept only one piece.
2.About sample.
The buyer should offer the cost and freight, if the quantity is big then can turn back all of it after placing the order.
3.About payment.
100% TT as deposite, if amount more than 5000usd.
Or 30%TT as deposite, balance after B/L copy.
4.How long does it take to receive my small electric hoist 110v order?
About 15 Days from we get the down payment, 7 days for sample order.
5.What is the information should I provide when inquiry small electric hoist 110v?
a. How many quantity will I want to buy?
b. How much is the maximum lifting weight of the hoist?
c. Which one is my need? fixed or moved by trolley?
6.How will my order shipped?
Usually shipped by sea, small order or urget order we can send you by Air or DHL,UPS or Fedex, after received your agreement.
