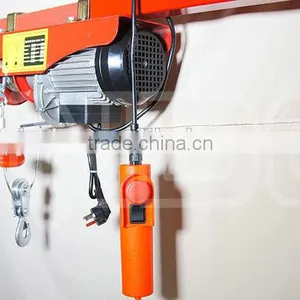

600kg PA mini electric hoist
The PA series mini electric hoist works under a voltage of 100V to 230V. It is mainly used to lift heavy goods under household power supply. A limiting device is provided to ensure the electricity is cut automatically when the hook has met its limit in height. It ensures a high level of safety. This product has been CE certified. We provide different colors for you to choose.
Main Features
1) Approved by CE/GS/TUV/UL
2) Powerful pure copper motor, with good electrical conductivity
3) The protection class is IP54
4) With upper limiting device
5) Lower limiting device optional
6) Aircraft anti-rotation wire rope
7) Different switches with or without emergency brake
8) Fixed or movable
Fixed hoist double line pulling
With the hanging hole and pulley block, the lifting force can be doubled.
Every hoist of ours will be well tested before packing.
Anti-rotation wire rope
The aircraft anti-rotation wire rope is stronger than normal wire ropes and can prevent the goods from rotation. In that case the lifting process becomes safer.
Motor rotor and magnetic braking device
Our motor rotor is designed with an extra fan. This allows for excellent heat dissipation and an extended lifespan of the motor.
Our magnetic braking device has proven to continuously work under full load for 72 hours. It can prevent goods from falling off.
Copper coil
The copper coil of the motor is of superior quality and good conductivity. It is covered by insulation materials.
Thermal protector can be installed to prevent the motor from overheat.
Helical gears
We have designed the hoist with high-precision helical gears to greatly reduce noise.
Made of high-tensile forged steel. Each tooth is quenched to gain high hardness and wear resistance.
Upper limiting device
In case that you may lose control of our hoist, this upper limiting device can cut down the power once it was lifted.
We also provide lower limiting device for you to choose.
Switch handle
Standard switch handle with emergence brake, saving lives and goods.
Switch handle
Small simple switch handle, without solenoid inside, safer for users.
Switch handle
Standard switch handle, cheap and easy to operate.
Electric trolley
Powered by AC 100V to 230V electric source.
New design makes it simple to install and control.
High-quality steel spur gears to ensure the electric trolley runs smoothly.
4-direction switch handle
When you need the electric trolley, this 4-direction switch handle will be necessary for controlling both of the hoist and trolley. Switch with emergency button is also available.
Hanging hole
The hanging hole is used for double line lifting. When the load is beyond the single line lifting force, hook it here and use the pulley block, the rated line pull will be doubled.
Hoist frame
The frame is in small volume, but can bear heavy load.
Very easy to install.
Rotate 180 degrees, with premium casting steel clamp.
Shandong JNDO Hoisting Equipment Co., Ltd is a manufacturer specialized in the research, development and production of high-quality made-in-China winch/windlass, hoist, crane, jack, pallet truck ,magnet lifter and accessories etc.
Please feel free to contact us with any inquiries for products.
Pick-up truck mounted crane
One of our best-selling products in factory, improved over 10 times to make it perfect to users. With 500kg/800kg lifting force, this little thing will save your back!
1. OEM Manufacturing welcome: Product, Package...
2. Sample order
3. We will reply you for your inquiry in 24 hours.
4. After sending, we will track the products for you frequently, until you get the products.
5. If there are any problems with the goods, contact us and we will find a way to solve them.
