Home > Products > Manual trolley > Marine Steel Cargo Block/ Snatch Block/ Lifitng Pulley Block
Marine Steel Cargo Block/ Snatch Block/ Lifitng Pulley Block
- Any China Port
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Type | Other, wire rope,hook or shackle | Material | Alloy | |
| Place of Origin | Shandong, China | Brand Name | JNDO | |
| Model Number | HB |
Product Description
marine steel cargo block/ snatch block/ lifitng pulley block
An ISO 9001 certified firm by Lloyd's Register and a member of LEEA(Lifting Equipment Engineers Association).
HS/DS type heavy duty snatch block
A. Durable powder coat finish
B. Heavy-duty permits to perform under extreme condition.
C. Rated loads is from 2MT to 30MT.
D. Safety factor: 4 times.
E. 200% over load capacity test one by one before package.
F. Manufactured according to ISO9001 quality standard.
G. CE approved.
H. One year guarantee

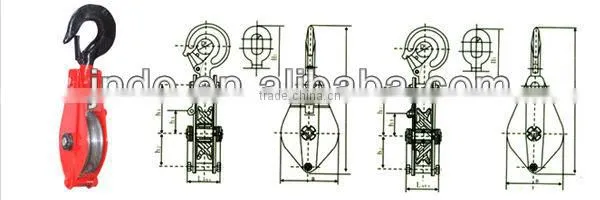

| TYPE | S.W.L | SHEAVE DIA | SHACKLE | HOOK | B | C | WIRE ROPE SIZE | WEIGHT | |
| A1 | A2 | ||||||||
| SHACKLE | HOOK | TON | mm | kg | |||||
| SB-07502 | HB-07502 | 2 | 75 | 286 | 292 | 82 | 70 | 7~9 | 4 |
| SB-11504 | HB-11504 | 4 | 115 | 345 | 358 | 120 | 70 | 10~12 | 6.1 |
| SB-15004 | HB-15004 | 4 | 150 | 399 | 412 | 160 | 70 | 16~18 | 13.8 |
| SB-15008 | HB-15008 | 8 | 150 | 475 | 498 | 160 | 93 | 20~22 | 14.4 |
| SB-20008 | HB-20008 | 8 | 200 | 528 | 549 | 210 | 93 | 20~22 | 16 |
| SB-20015 | HB-20015 | 15 | 200 | 663 | 672 | 230 | 102 | 22~24 | 24 |
| SB-25010 | HB-25010 | 10 | 250 | 679 | 695 | 260 | 115 | 24~26 | 37.5 |
| SB-25012 | HB-25012 | 12 | 250 | 679 | 701 | 260 | 115 | 24~26 | 42 |
| SB-30012 | HB-30012 | 12 | 300 | 767 | 797 | 310 | 133 | 24~26 | 56 |
| SB-30015 | HB-30015 | 15 | 300 | 884 | 797 | 365 | 133 | 26~28 | 65 |
| SB-35522 | HB-35522 | 22 | 355 | 952 | 960 | 365 | 140 | 28~32 | 90 |
| SB-40022 | HB-45022 | 22 | 400 | 1019 | 1027 | 415 | 140 | 28~32 | 108 |
| SB-40030 | HB-40030 | 30 | 400 | 1126 | 1085 | 415 | 155 | 32~35 | 135 |
| SB-50030 | HB-50030 | 30 | 500 | 1256 | 1177 | 514 | 162 | 32~35 | 210 |
