open snatch pulley block single sheave
- 10000 Unit / Units per Month
- QINGDAO
- T/T Credit Card
- Explosion proof electric hoist with curved rail on top of LNG storage tank
- Explosion proof electric hoist with curved rail on top of LNG storage tank
- Low Head Room Wire Rope Electric Hoist
- Stage Chain Hoist Fashion Mini Cool Design
- Wholesale manual hand operated hoist HSZ chain pulley block hoist for factory
- manual door frame pallet stacker
Product Details
Condition: | New | Place of Origin: | Shandong, China | Brand Name: | JNDO |
Model Number: | HQG | Usage: | Construction Hoist | Sling Type: | Wire Rope |
Certification: | CE | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications

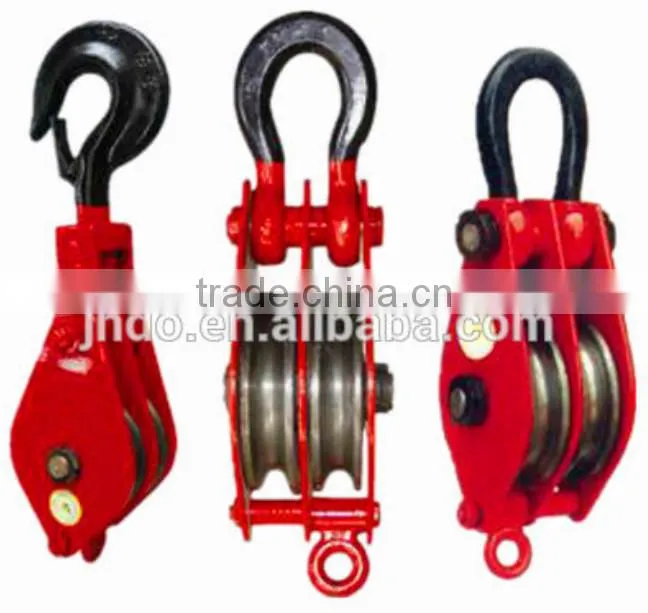

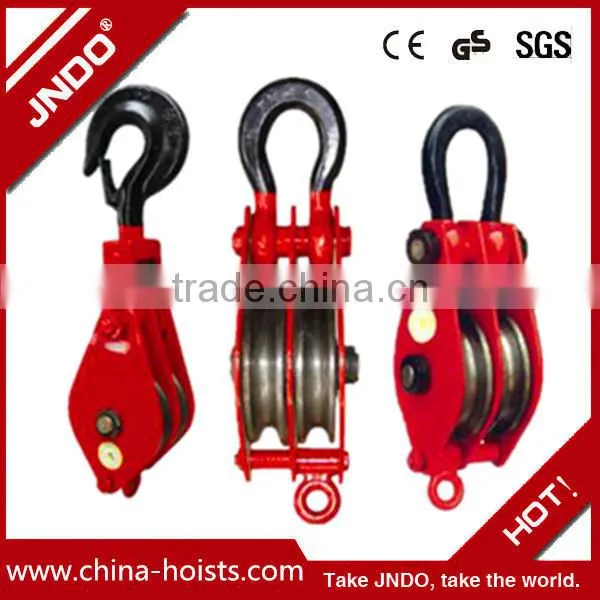

open snatch pulley block single sheaveHeavy Duty Hook/
shackle type Capacity from 2t to 50t
Safety factor 4 times

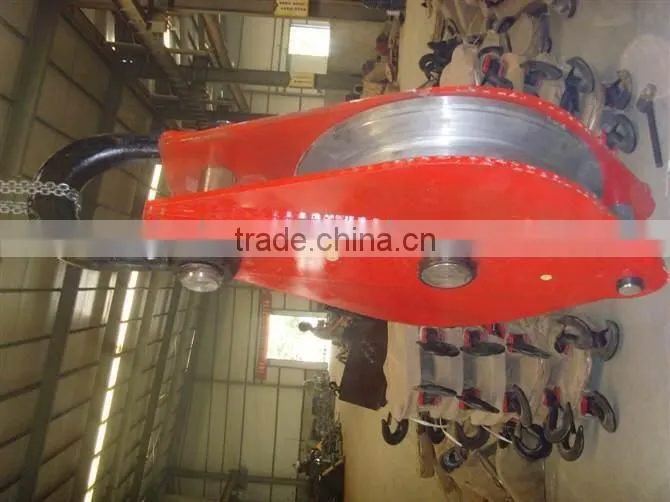

open snatch pulley block single sheave
1.Small trolley,safety and easy to operate
2.The trolley can hang in various small crane or installed in fixed on the range, match with the hand in the composition such as the complete hoisting machinery.
3.Apply to the working efficiency of the demand is high warehouse, workshop and power plant, can be used for installation and maintenance equipment or the lifting heavy manual monorail trolley.
4.two of a master-slave moved the wheels are installed in the left and right two pieces of pull board, two pull board with beams and between bolt binds, beam adorned with rings, sprockets into the gear axis from the end of the drive sprockets are active gear shaft car rotate, the car can do move back and forth along the range.

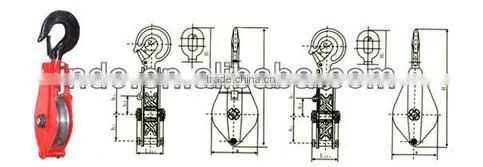

Specification of snatch pulley block:
name | model | rated lifting capacity | test load | diameter of the stddl cable | diameter of the prlley slot | weight of the body machine | |
single prlley block with open lifting bug | hqg(l)k1-0.5 | 0.5 | 8 | 6.2 | 7.7 | 71 | 1.75 |
hqg(l)k1-0.5 | |||||||
hqg(l)k1-1 | 1 | 16 | 7.7 | 11 | 85 | 3.25 | |
hqg(l)k1-1 | |||||||
hqg(l)k1-2 | 2 | 32 | 11 | 14 | 112 | 6 | |
hqg(l)k1-2 | |||||||
hqg(l)k1-3.2 | 3.2 | 51.2 | 12.5 | 15.5 | 13.2 | 10.5 | |
hqg(l)k1-3.2 | |||||||
hqg(l)k1-5 | 5 | 80 | 15.5 | 18.5 | 160 | 19 | |
hqg(l)k1-5 | |||||||
hqg(l)k1-8 | 8 | 128 | 20 | 23 | 210 | 35.2 | |
hqg(l)k1-8 | |||||||
hqg(l)k1-10 | 10 | 160 | 23 | 24.5 | 240 | 50.5 | |
hqg(l)k1-10 | |||||||
hqg(l)k1-16 | 16 | 224 | 28 | 31 | 315 | 113.5 | |
hqg(l)k1-20 | 20 | 280 | 31 | 35 | 355 | 162.2 | |
2 wheel block with lifting bug | hqg(l)2-1 | 1 | 16 | 6.2 | 7.7 | 71 | 3.15 |
hqg(l)2-2 | 2 | 32 | 7.7 | 11 | 85 | 6 | |
hqg(l)2-3.2 | 3.2 | 51.2 | 11 | 14 | 112 | 11 | |
hqg(l)2-5 | 5 | 80 | 12.5 | 15.5 | 132 | 20 | |
hqg(l)2-8 | 8 | 128 | 15.5 | 18.5 | 160 | 35 | |
hqg(l)2-10 | 10 | 160 | 17 | 20 | 180 | 47 | |
hqg(l)2-16 | 16 | 224 | 23 | 24.5 | 240 | 75.2 | |
hqg(l)2-20 | 20 | 280 | 26 | 28 | 280 | 138.9 | |
hqg(l)2-32 | 32 | 448 | 31 | 35 | 355 | 237.5 |
Parts of snatch block
We can provide not only amazing products,but also special ones designed at requests.We'll do our best to meet the need of customers.
