Heavy Load Geared Trolleyfor Chain Hoist

Specifications

Heavy Load Geared Trolleyfor chain hoist

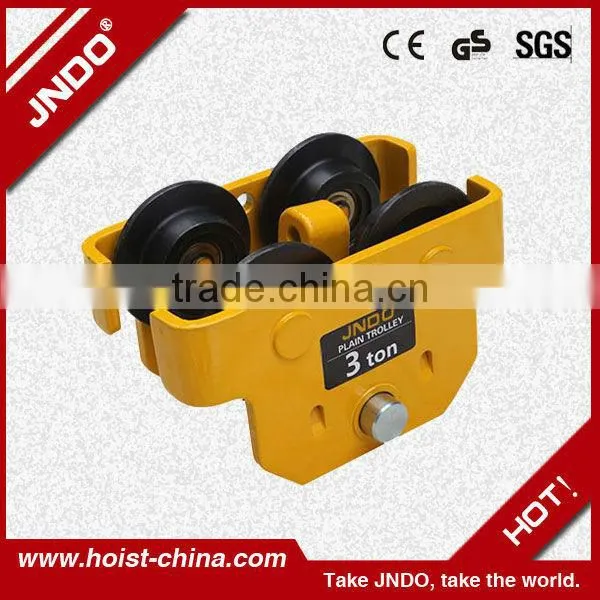

1.Good quality GCT type plain trolley
2.Capacity: 1T,2T,3T,5T
3.Singe and double

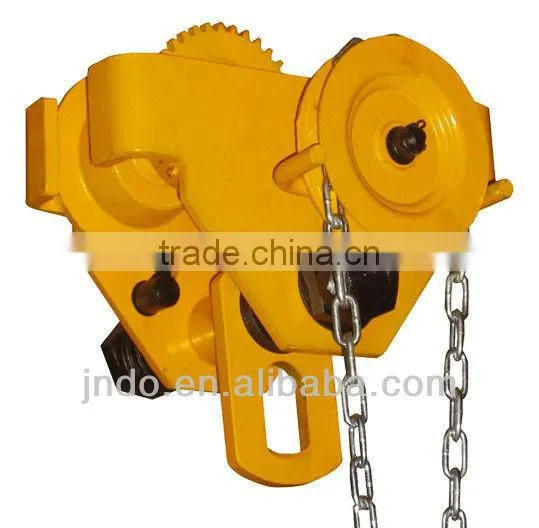

Heavy Load Geared Trolleyfor chain hoist





 Description of gear trolley:

1.Geared trolley should be formed a complete set with chain hoist or other lifting machines.

2.There are ball bearings are in layed in the wheels of the geared trolley.

3.The geared trolley is a lifting machine that has high efficiency in operation with small hand-pull/push force.

4.Geared trolley should be fit on the bottom flange of I-beam to compose a running lifting trolley.



Precaution of gear trolley:

1.Overloading is strictly prohibited.

2.While lifting the load,passing or working under the lifting load is strictly prohibited.

3.Stop operating immediately and fix a breakdown in case the pull force exceeds that of normal operation or there troubles.

4.Bearing ,gear,etc should be greased regularly and examine the fasteners to make sure that are tightened.



Specifications of gear trolley:

Model	Capacity (T)	Test load (T)	Min.radius of curve	Dimensions (mm)					I-steel available (mm)		Net.WT.(KG)
				A	B	C	H	F
GCT 0.5	0.5	0.753	0.9	242.5	170	187	105	≈3	68-94		4.8
GCT 1	1	1.471	1	245	206	206	109	≈3	68-100		7.7
GCT 1.5	1.5	2.206	1	279.5	228	236	125	≈3	88-118		12.8
GCT 2	2	2.942	1.1	179.5	240	243	133	≈3	94-124		12.8
GCT 3	3	4.413	1.3	344	282	321	179	≈3	116-140		34.5
GCT 5	5	6.129	1.4	362	327	393	220	≈3	142-180		43
GCT 10	10	12.258	1.7	402	389	490	275	≈3	142-180		88













Shandong Jndo Hoisting Equipment Co., Ltd. is a manufacturer specialized in the research, development and production of hoist, electric hoist, electric chain hoist, crane and electric wire rope hoist. We have a long history of customer confidence and supporting chinese manufacturers. We provide our customers with high-quality made-in-China hoist, electric hoist, electric chain hoist, crane and electric wire rope hoist from hundreds of Chinese manufacturers.

   We have a long history of customer confidence and supporting chinese manufacturers. We provide our customers with high-quality made-in-China hoist, electric hoist, electric chain hoist, crane and electric wire rope hoist from hundreds of Chinese manufacturers.

          Welcome to JNDO

                                Your success is our business











Super Abilites:



By adopting carefully selected components and perfect and perfect manufacturing technology,we can show the outstanding product quality to customers so that users can operate our products easier,by using brand new environment-friendly peotection paint and humanization design,it takes you perfect security in different work conditions.



Outstand Service:



We can provide not only amazing products,but also special ones designed at requests.We'll do our best to meet the need of customers.
