cable pulling winch machine 5ton rope pull hoistCapacity: 0.5T-50T
Lifting speed: 8/0.8m
traveling

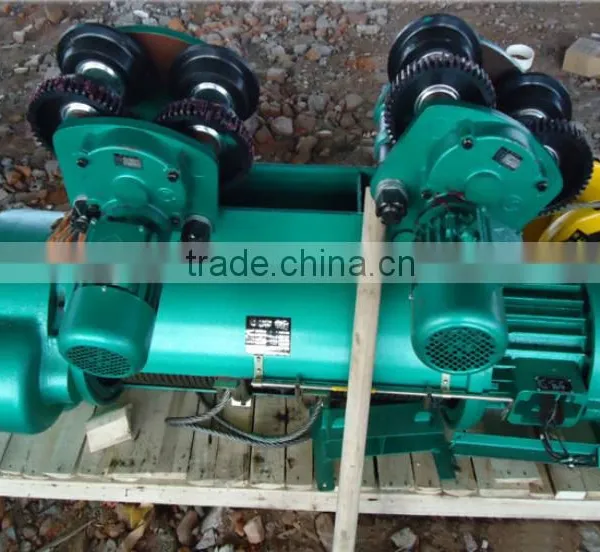

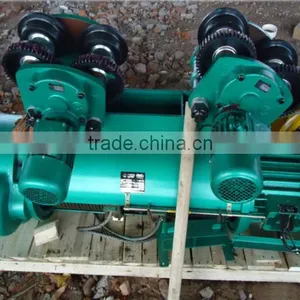

cable pulling winch machine 5ton rope pull hoist
Electric wire rope hoist Brief description:
CD1,MD1 model wire rope electric hoist is a kind of light type lifting equipment. It could be installed on single
girder crane with hoist, overhead,gantry and jib crane. Modified could be used as a winch. So it is a commonly
used lifting equipment in factory, mine, port, warehouse, cargo yard, shop etc, is a nessesary equipment to
improve working efficiency and labor conditions.
The lifting speed of CD1 model electric hoist is common speed, it could satisfy common use requirements, MD1 model electric hoist operates two lifting speeds---ommon speed and slow speed. When working at slow speed, it could satisfy precise loading and unloading, sand box moulding, machine tool inspection and other precise working requirements. So the use MD1 electric hoist would be much wider then CD1 hoist.
It is equiped with compact structure, convenient adjustment, small volumn, light weight, heavy gravity, easy operation etc
Electric wire rope hoist Applications:
It can travel rotyation through the trolley hanging on the I-steel,and install on the single beam crane,jib crane and overhang crane to rise and fall the cargos.So it can be used in factories,mines,wharf,warehouse ,freight yards and shops and so on,which need lifting equipement for lifting heavy objects.Such as mining companies and railways,docks,warehouse .It is prohibited to manned.
Advantsges of Electric wire rope hoist:
1.Lightweight, small bulk and convenient operation.
2.It can be adapted to overhead rails as well as in conjunction with many types of electric or manual cranes
such as the single-girder crane, the double-grinder crane, the cantilever crane and the gantry crane
Motor |
Hoist Motor is a taper type rotor motor with braking; it is of the best quality motors, it has bigger torque, so it can be adapted to moving frequently, the Maximum torque is 2.4-3 times than the rated torque. |
|
Gear Box |
Hoist Gear Box has specially treated gears for high wear resistance. Each Geared Shaft assembly is supported on ball or roller bearings, to ensure smooth, low-friction operation. |
|
Wire Rope |
Hoisting rope comply with the exporting standards. The leading rope taken by the Drum does not slip sideways when slack. The factor of safety, on the nominal breaking strength of the rope is six. |
|
Rope Drum |
Grooved Drum, seamless pipe of adequate length to be wounded in one layer and to provide proper support for the rope to minimize abrasive wear is provided. Drum Shaft resolves on Ball Bearings for ensuring smooth running. |
|
Electric apparatus controlling system |
Model CD1 or MD1 is composed of the contactor box, controlling switch, cut-off limiter. The working voltage of controlling switch is 380V, 36V or 24V (safety voltage). |
|
Rope Guide |
Rope Guide is in two halves, ensuring easy accessibility. It encircles the Drum completely so that the rope may not uncoil even when the Hoist is in unloaded condition. The rope guides of our company is thicken and dilated, so that it is not easy to be damaged.
|
Hook |
The hook block is tested to 150 % of full load before assembly. The rope sheaves are fully guarded with protective steel casting. All sheaves rotate on ball bearing. The pulley is thicken and dilated than domestic common |
Safety Features of Electric wire rope hoist:
Fire stopper :Adjustment mechanical memory structure ,high sensitivity
Weight Limiting stopper:preventing hook clashing the top,senstive reaction.Safe and durable ,easy to install and debug
Overload limiter:Preset related data according working condition ,show accurate weight value clearly.Modular,low power design.
Parameter of Electric wire rope hoist:
| Model | CD1-0.25T | CD1-0.5T | CD1-1T | CD1-2T | CD1-3T | CD1-5T | CD1-10T | CD1-16T | CD1-20T |
| Capacity (T) | 0.25 | 0.5 | 1 | 2 | 3 | 5 | 10 | 16 | 20 |
| Standard lifting height (m) | 3-9 | 6-12 | 6-30 | 6-30 | 6-30 | 6-30 | 9-30 | 9-18 | 9-18 |
| Lifting Speed (m/min) | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 |
| Running Speed (m/min) | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 |
| Wire rope type | 6X9 | D-6X37+1 | D-6X37+1 | D-6X37+1 | D-6X37+1 | D-6X37+1 | D-6X37+1 | 6X37+1 | 6X37+1 |
| I-beam track type | 16-22b | 16-28b | 16-28b | 20a-32c | 20a-32c | 25a-63c | 25a-63c | 45a-63c | 50a-63c |
| Loop track minium radius (m) | 0.8 | 1.5 | 1.5-4 | 2-4 | 2-4 | 2.5-5 | 2.5-9 | 3-4.6 | 3-4.6 |
| Power supply | 220V-440V,3phase,50/60HZ | ||||||||
| Working Duty | Mid M3 | Mid M3 | Mid M3 | Mid M3 | Mid M3 | Mid M3 | Mid M3 | Mid M2 | |
| Model | MD1-0.5T | MD1-1T | MD1-2T | MD1-3T | MD1-5T | MD1-10T | MD1-16T | MD1-20T |
| Capacity (T) | 0,5 | 1 | 2 | 3 | 5 | 10 | 16 | 20 |
| Standard lifting height (m) | 6-12 | 6-30 | 6-30 | 6-30 | 6-30 | 9-30 | 9-18 | 9-18 |
| Lifting Speed (m/min) | 8(0.8) | 8(0.8) | 8(0.8) | 8(0.8) | 8(0.8) | 7(0.7) | 3.5(0.35) | 3.5(0.35) |
| Running Speed (m/min) | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 |
| Wire rope type | D-6X37+1 | D-6X37+1 | D-6X37+1 | D-6X37+1 | D-6X37+1 | D-6X37+1 | 6X37+1 | 6X37+1 |
| I-beam track type | 16-28b | 16-28b | 20a-32c | 20a-32c | 25a-63c | 25a-63c | 45a-63c | 50a-63c |
| Loop track minium radius (m) | 1,5 | 1.5-4 | 2-4 | 2-4 | 2.5-5 | 2.5-9 | 3-4.6 | 3-4.6 |
| Power supply | 220V-440V,3phase,50/60HZ | |||||||
| Working Duty | Mid M3 | Mid M3 | Mid M3 | Mid M3 | Mid M3 | Mid M3 | Mid M2 | Mid M2 |

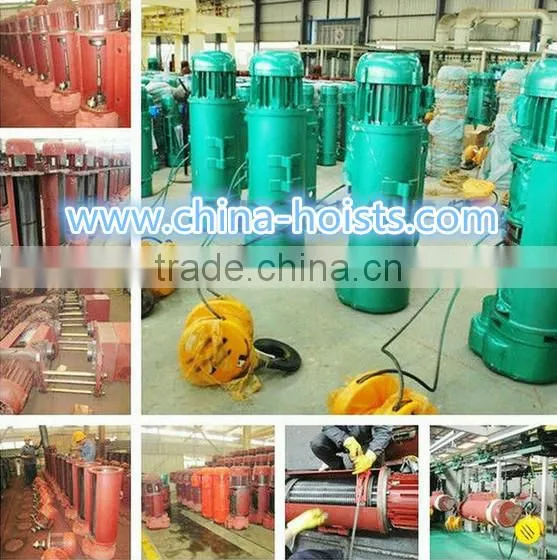

Details show of 2014 new design CD1 model stage electric hoist
|
Motor: 1.Hoist Motor is an taper type rotor motor with braking 2.it is made by Nanjing special motor factory,it is of the best quality motors 3.it has bigger torque, so it can be adapted to moving frequently
|
|
Gear Box: 1.Hoist Gear Box has specially treated gears for high wear resistance. 2.Each Geared Shaft assembly is supported on ball or roller bearings, to ensure smooth, low-friction operation |
|
Rope Drum: 1.Grooved Drum, seamless pipe of adequate length to be wounded in one layer per support for the rope to minimize abrasive wear is provided 3.Drum Shaft resolves on Ball Bearings for ensuring smooth running |
|
Rope Guide: 1.Rope Guide is in two halves, ensuring easy accessibility. 2.It encircles the Drum completely so that the rope may not uncoil even when the Hoist is in unloaded condition 3.The rope guides of our company is thickened and dilated, so that it is not easy to be damaged |
|
Wire Rope: 1.Hoisting ropes comply with the exporting standards 2.The leading rope taken by the Drum does not slip sideways when slack 3.The factor of safety, on the nominal breaking strength of the rope is six |
|

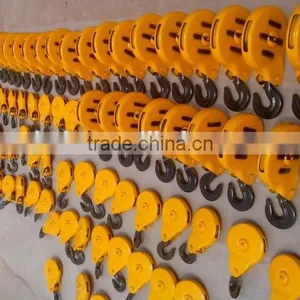

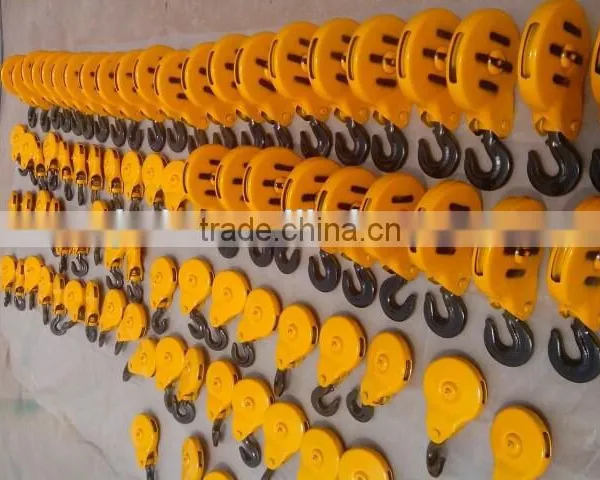

Hook: 1.The Hook Block is tested to 150 % of full load before assembly 2.The rope sheaves are fully guarded with protective steel casting |
|
Electric control system: 1.Model CD1 and MD1 is composed of the contactor box,controlling switch, cut-off limiter 2.the working voltage of controlling switch is 380V,360V or 240V (safety voltage) |

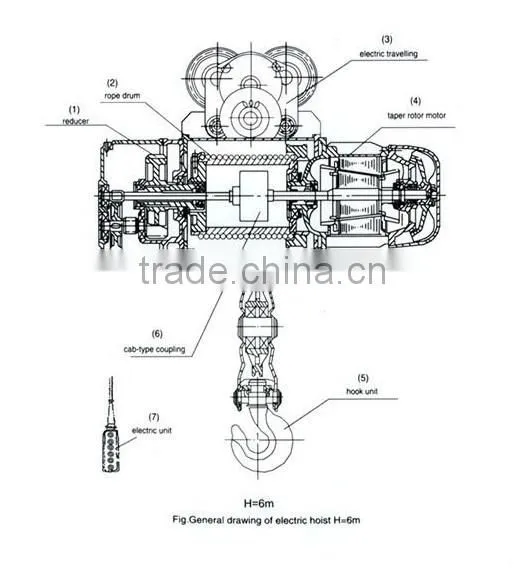

Parts of electric wire rope hoist:
Parts of electric wire rope hoist:

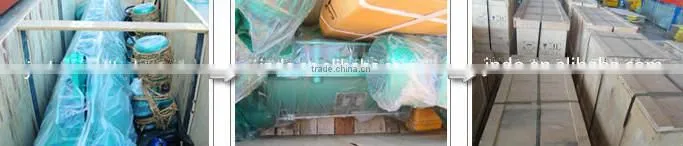

Electric wire rope hoist Packaging & Shipping
