Wire Rope Sling Type wire rope electric hoists
CD1MD1 series wire rope electric hoist/electric wire rope hoist is one kind of useful and efficient tool which can easily reslove the problems among lifting aspects.
| Model | CD1-0.25T | CD1-0.5T | CD1-1T | CD1-2T | CD1-3T | CD1-5T | CD1-10T | CD1-16T | CD1-20T |
| Capacity (T) | 0.25 | 0.5 | 1 | 2 | 3 | 5 | 10 | 16 | 20 |
| Standard lifting height (m) | 3-9 | 6-12 | 6-30 | 6-30 | 6-30 | 6-30 | 9-30 | 9-18 | 9-18 |
| Lifting Speed (m/min) | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 |
| Running Speed (m/min) | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 |
| Wire rope type | 6X9 | D-6X37+1 | D-6X37+1 | D-6X37+1 | D-6X37+1 | D-6X37+1 | D-6X37+1 | 6X37+1 | 6X37+1 |
| I-beam track type | 16-22b | 16-28b | 16-28b | 20a-32c | 20a-32c | 25a-63c | 25a-63c | 45a-63c | 50a-63c |
| Loop track minium radius (m) | 0.8 | 1.5 | 1.5-4 | 2-4 | 2-4 | 2.5-5 | 2.5-9 | 3-4.6 | 3-4.6 |
| Power supply | 220V-440V,3phase,50/60HZ | ||||||||
| Working Duty | Mid M3 | Mid M3 | Mid M3 | Mid M3 | Mid M3 | Mid M3 | Mid M3 | Mid M2 | |
| Model | MD1-0.5T | MD1-1T | MD1-2T | MD1-3T | MD1-5T | MD1-10T | MD1-16T | MD1-20T |
| Capacity (T) | 0,5 | 1 | 2 | 3 | 5 | 10 | 16 | 20 |
| Standard lifting height (m) | 6-12 | 6-30 | 6-30 | 6-30 | 6-30 | 9-30 | 9-18 | 9-18 |
| Lifting Speed (m/min) | 8(0.8) | 8(0.8) | 8(0.8) | 8(0.8) | 8(0.8) | 7(0.7) | 3.5(0.35) | 3.5(0.35) |
| Running Speed (m/min) | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 |
| Wire rope type | D-6X37+1 | D-6X37+1 | D-6X37+1 | D-6X37+1 | D-6X37+1 | D-6X37+1 | 6X37+1 | 6X37+1 |
| I-beam track type | 16-28b | 16-28b | 20a-32c | 20a-32c | 25a-63c | 25a-63c | 45a-63c | 50a-63c |
| Loop track minium radius (m) | 1,5 | 1.5-4 | 2-4 | 2-4 | 2.5-5 | 2.5-9 | 3-4.6 | 3-4.6 |
| Power supply | 220V-440V,3phase,50/60HZ | |||||||
| Working Duty | Mid M3 | Mid M3 | Mid M3 | Mid M3 | Mid M3 | Mid M3 | Mid M2 | Mid M2 |
|
Motor: 1.Hoist Motor is an taper type rotor motor with braking 2.it is made by Nanjing special motor factory,it is of the best quality motors 3.it has bigger torque, so it can be adapted to moving frequently
|
|
Gear Box: 1.Hoist Gear Box has specially treated gears for high wear resistance. 2.Each Geared Shaft assembly is supported on ball or roller bearings, to ensure smooth, low-friction operation |
|
Rope Drum: 1.Grooved Drum, seamless pipe of adequate length to be wounded in one layer per support for the rope to minimize abrasive wear is provided 3.Drum Shaft resolves on Ball Bearings for ensuring smooth running |
|
Rope Guide: 1.Rope Guide is in two halves, ensuring easy accessibility. 2.It encircles the Drum completely so that the rope may not uncoil even when the Hoist is in unloaded condition 3.The rope guides of our company is thickened and dilated, so that it is not easy to be damaged |
|
Wire Rope: 1.Hoisting ropes comply with the exporting standards 2.The leading rope taken by the Drum does not slip sideways when slack 3.The factor of safety, on the nominal breaking strength of the rope is six |
|
Hook: 1.The Hook Block is tested to 150 % of full load before assembly 2.The rope sheaves are fully guarded with protective steel casting |
|
Electric control system: 1.Model CD1 and MD1 is composed of the contactor box,controlling switch, cut-off limiter 2.the working voltage of controlling switch is 380V,360V or 240V (safety voltage) |

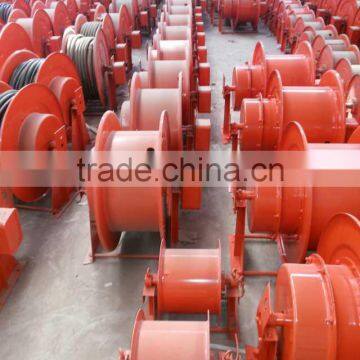

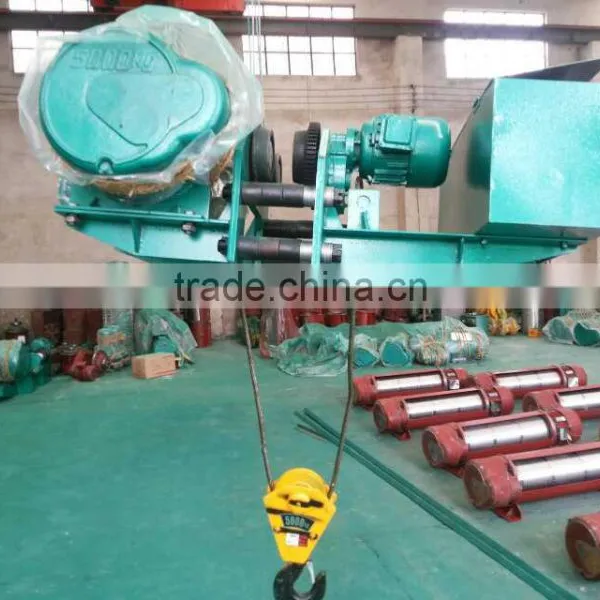

Real Pictures of Wire Rope Electric Hoist
Production Process
