CE SGS small Electric Chain Hoist With Siemens Electric Motor and rail

FOB Price

USD $120 - $600 / Piece

1 Piece(Min.Order)

Supply Ability 1000 Piece / Pieces per Month
Port QingDao
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Condition:	New	Place of Origin:	Shandong, China	Brand Name:	JNDO
Model Number:	HHBB	Usage:	Construction Hoist	Power Source:	Electric
Sling Type:	Chain	Maximum Lifting Weight:	5	Maximum Lifting Height:	30m
Lift Speed:	7.2m/min	Certification:	CE SGS	Warranty:	1 Year
After-sales Service Provided:	No overseas service provided

Product Description

CE SGS small Electric Chain Hoist With Siemens Electric Motor and rail

Description

Our hoist is made of high -strength alloy,consists of beautiful appearance,compact mechanism,small in size and light weight.And we use double-geared drive.Helical gear drive when it works under fast speed,so that the hoist can drive smoothly with low noise.

The components and parts of our hoists is high-intensitive as well.The alloy we use have gone through multiple heating processing with special technology ,so that it's good abrasive resistance and high-intensity is well-known. After intensive heating processing, the up and down hoists are with high toughness .It means,even with overload,the hook will be plastic plastic deformation instead of brittle fracture.

FEATURE OF HHBB 5T 220v stationary type china chain hoist winch

1.Shell

It is made of light aluminum shell, light but hard. The cooling fin is specially designed to ensure quick heat dissipation with the rate up to 40% and continuous service. The integral enclosed structure is applicable to place like chemical plant and electroplate factory.

2.The Electromagnetic Brake

Electromagnetic brake is featured by its unique brake design.It immediately operates when power cuts off.

3.The Mechanical Load Bake

The limit switch device is installed where the weight is lifted on and off to make the motor to stop automatically so as to prohibit the chains from exceeding for safety.

4.Chain

The hook is constructed of anti-pull and heat-treated steel and heat-treated steel and meets required standards.

The lower-hook can turn 360 degree ;its tongue provides guarantee for safety.

5.Hook and safety tongue

It is hot forging with perfect strength that is hard to break.The operation safety of the lower hook is ensured by its 360 degrees rotation and safety tongue piece.

6.Support frame

The loading support frame consists of two steel plates,which is extremely sturdy.

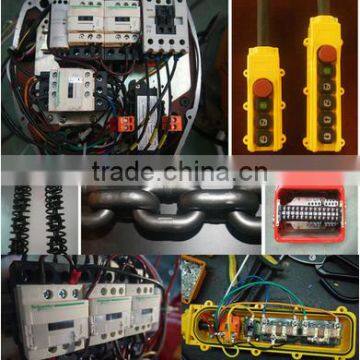

7.Transformer

24V/36V transformer device .The device is used to prohibit unexpected accidents caused by electric leakage and guarantees the safe uses while raining.

8. Electromagnetic contactor

Electromagnetic contactor can be used safely under high frequency.

9.The back-phase protect

The back-phase protects the motor from overheating in the case of wrong phase position.

10. Limit switch

The power will cut off automatically when the hoist ascends to its limit.

11.The emergency-stop switch (if selected)

This switch is used to stop the hoist in the an emergency. The red and mushroom-shaped switch is located on the top of the switch controller.

When pressed and held down, the power will be cut off and the switch be locked.A clockwise-turn can unlock it and restart the hoist.

12. Customized service:

We can provide not only amazing products,but also special ones designed at requests.We'll do our best to meet the need of customers.

Product Parameter

Model	HHBB
Model	0.5-01S	01-01S	1.5-01S	02-01S	02-02S	2.5-01S	03-01S	03-02S	03-03S	05-02S
nominal load (t)	0.5t	1t	1.5t	2t		2.5t	3t			5t
lifting speed (m/min)	7.2	6.6	8.8	6.6	3.3	5.4	5.4	4.4	2.2	2.7
moto power (Kw)	0.8	1.5	3.0	3.0	1.5	3.0	3.0	3.0	1.5	3.0
rotate speed (r/min)	1440 r/min
Motor insulation class	F
working voltage	3-Phase 380V 50Hz
control voltage	24V / 36V / 48V
chain black number	1	1	1	1	2	1	1	2	3	2
chain size	Φ6.3	Φ7.1	Φ10.0	Φ10.0	Φ7.1	Φ11.2	Φ11.2	10.0	Φ7.1	Φ11.2
net weight (kg)	47	61	108	115	73	115	122	131	85	151

Photos Show

Our Services

1.1 year standard warranty (could be prolonged by discussion).

2. 24 hours response.
3. Free mail and telephone service guidance.
4.In warranty period, if our machine has problem and the problem can’t be solved by door to door service for 3 times, we will send you a new machine replace the former one freely.

5.one or two sets free quick-wear parts.
