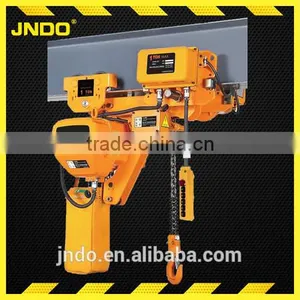

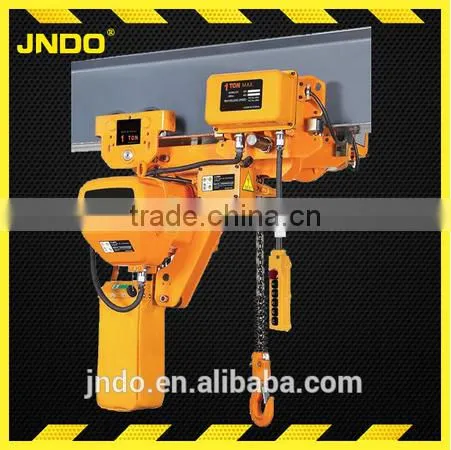

low clearance double speed 380v electric chain hoist
Our hoist is made of high -strength alloy,consists of beautiful appearance,compact mechanism,small in size and light weight.And we use double-geared drive.Helical gear drive when it works under fast speed,so that the hoist can drive smoothly with low noise.
The components and parts of our hoists is high-intensitive as well.The alloy we use have gone through multiple heating processing with special technology ,so that it's good abrasive resistance and high-intensity is well-known. After intensive heating processing, the up and down hoists are with high toughness .It means,even with overload,the hook will be plastic plastic deformation instead of brittle fracture.
Specifications of ultra low headroom hoist:
1,Professional R&D Management
2, CE&ISO approved
3,High Safety and Precision .
4,Imported (FEC80 ) Chain
5,Lower noise .
It is uniquely designed to have a shorter headroom than that of standrard of k model configurations.
The super-low headroom electric chain hoist is uniquely designed to have a shorter headroon than that of standrard of k model configurations. This proudct is the most suitable for installation which requires a low ceiling of building or maximizes effective lift, especially suitalbe for use in temporarily erected plant buildings or on the sites where expansion of effective hoisting spaces inside the buildings is required. The trolleys are availalbe as option.
It is typical of unique optimal structure in shortening the distance between the machine body and the beam tracks, applicable to operations inside fairly low buildings, especially suitable for use in temporarily erected plant buildings or on the sites where expansions of effective hoisting spaces inside the building is required.

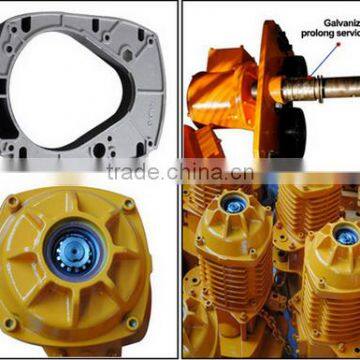

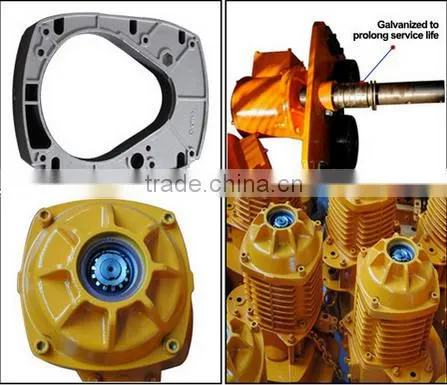

Detailed Discription of ultra low headroom hoist :
1.Shell
It is made of light aluminum alloy shell,light but hard.The cooling fin is specially designed to ensure quick heat dissipation with the rate up to 40% and continous service.
The integral enclosed structure is applicable to places like chemical plant and electroplate factory.
2.Side magnetic braking device
The magnetic orce generator is the latest design which is featured for generating magnetic force.It allows instant brake as soon as the electric power is cut off.Thus the braking safety while loading is guaranteed.
3.Limit switch
The limit switch device is installed where the weight is lifted on and off to make the motor to stop automatically so as to prohibit the chains from exceeding for safety.
4.Chain
The chain shall adopt the imported FEC80 ultraheat-treatable steel alloy chain.
It can be safely used in poor environments such as rain,sea water and chemicals.
5.Electromagnetic contactor
Electromagnetic contactor can be used safely under high frequency.
6.Inverse phase sequence protecting device
It is sepcial electrical installation which controls the circuit not to work in case of wiring error in the power supply.
7.Gear
The gear made of alloy steel and through the heat treatment.
8.Protection class(hoist and push bottom):IP54&IP65
9.Power supply:3 phase,200-600v,50/60Hz
10.ISO:M4 FEM:1AM(M5 customized available)
Paraeters of low headroom electric chain hoist
| Model HHBB | Capa city | Lift ing ght | Lift ing eed /MIN | Lifting motor | Drive motor | I beam | |||||||||
Po wer | Rota tional | Ph ase | Vol tage | Fre quency | Power KW | Rota tional | Run ning | Phase | Voltage V | Freq uency | |||||
01-01 | 1 | 3/9 | 6.8 | 1.5 | 1440 | 3 |
/220 |
/60 | 0.4 | 1440 |
/21 | 3 |
/220 |
/60 |
-153 |
02-02 | 2 | 3/9 | 3.4 | 1.5 | 1440 | 3 |
/220 |
60 | 0.4 | 1440 |
/21 | 3 |
/220 |
/60 |
-153 |
2.5-01 | 2.5 | 3/9 | 6.8 | 3.0 | 1440 | 3 |
/220 |
/60 | 0.75 | 1440 |
/21 | 3 |
/220 |
/60 |
-153 |
03-02 | 3 | 3/9 | 5.8 | 3.0 | 1440 | 3 |
/220 |
/60 | 0.75 | 1440 |
/21 | 3 |
/220 |
/60 |
-153 |
05-02 | 5 | 3/9 | 2.8 | 3.0 | 1440 | 3 |
/220 |
/60 | 0.75 | 1440 |
/21 | 3 |
/220 |
/60 |
-178 |
1.1 year standard warranty (could be prolonged by discussion).
2. 24 hours response.
3. Free mail and telephone service guidance.
4.In warranty period, if our machine has problem and the problem can’t be solved by door to door service for 3 times, we will send you a new machine replace the former one freely.
5.one or two sets free quick-wear parts.
